A portable design language for agents: download the markdown first, then inspect the preview, tokens, and rules as needed.
Portable DESIGN.md source of truth for most agents and apps.

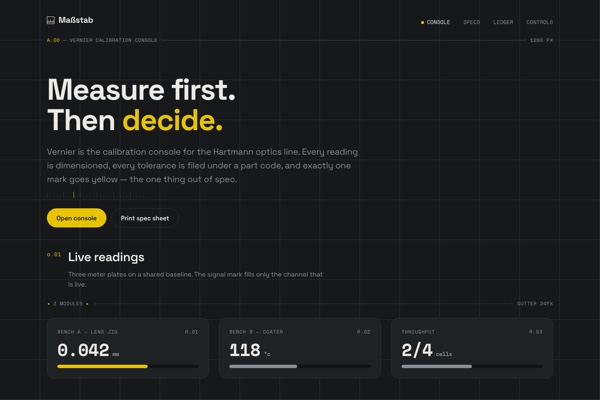

Compose every screen as a drawn specification sheet on a graphite ground: a summary band of meter-plates on a shared baseline, modules indexed under mono part codes, and each span dimensioned by a hairline measure rule with end-caps and a mono callout.
Hierarchy comes from spacing, alignment, the dimension line, and label/value pairing — not oversized display. A value sits large in mono with its unit dimensioned beneath by a tick scale; scale is spent sparingly.
Medium density with disciplined breathing room; ledgers and panels hold many figures, but every value has a defined slot, a measured padding, and a stated dimension.
The dimension line: a thin measure rule terminated by perpendicular end-caps carrying a centred Space Mono callout, bracketing section widths, value spans, and module gaps; the part-number register (a.01, a.02) and tick-scale datums extend it. Live, focused, or out-of-tolerance states are marked only by a single signal-yellow line, end-cap, dot, or fill — never by flooding a surface.
A 12-column desktop grid collapses to 8 on tablet and a single measured column on mobile; modules span whole columns rather than arbitrary card widths, and the dimension line annotates the spans.
Deliberate and even — consistent gutters and module padding over dramatic voids; every gap should feel engineered and is often dimensioned.
medium
Renders from ~390px to 2560px+; minmax(0,1fr) columns and min-width:0 children keep grids contained, dimension callouts shrink and truncate on small screens; only the full-bleed hero spans 100vw, contained content capped and centred on ultra-wide.
werkbild
Subjects rendered in the Werkbild product-plate technique pushed to its graphite end: one precisely engineered dark Braun-style measuring instrument, matte powder-coated panels, a knurled monochrome dial, an engraved measure-tick rule, a faint keyline grid behind, raking upper-left light, and exactly one signal-yellow indicator on a dark slate field.
One full-bleed hero per landing (--hero-image); feature imagery sits behind a directional graphite veil for legibility. Never use illustrated/generated art for the thumbnail.
# Maßstab ## Philosophy A dark, functional-minimalist interface language in the Dieter Rams / Braun tradition, read through the draughtsman's eye rather than the appliance's. The interface is a specification ledger on a graphite ground, annotated like an engineering drawing. Its signature mechanic is the dimension line — a hairline measure rule with end-caps and a mono callout that brackets every span, the way a draughtsman dimensions a part. Sections are filed under part codes, values carry tick-scale datums, and exactly one signal-yellow mark registers what is live, focused, or out of tolerance. Importance is registered to a slot, never flooded with colour. ### Values - usefulness before novelty — every element is a measure, not a flourish - clarity through reduction and declared dimension - controls and values that state their own size and state - honest hierarchy from spacing, alignment, and the measure — not loud display ### Anti-Values - decorative ornament without an idea - gloss, glass, gradients, or pastel washes - accent colour used as a fill instead of a single signal - ambiguous controls or unstyled browser defaults ### Visual Character - A deep graphite ground carries raised plates and recessed tracks separated by cool hairline keylines; the faint registration grid sits behind as quiet engineering context, never decoration. - Every span is dimensioned — a thin rule terminated by perpendicular end-caps with a centred Space Mono callout — so a screen reads as a drawn specification with its sizes stated, not implied. - Sections are indexed under engraved part codes (a.01, a.02) and values sit over fine tick-scale datums, giving the whole layout the cadence of a parts catalogue rather than a card grid. - Exactly one signal-yellow element is ever lit — a filled measure track, a single end-cap, a knurled-dial pointer, an out-of-tolerance figure — marking what is live without flooding any surface. ## Tokens ### Colors | Name | Value | |------|-------| | bg | `#16181A` | | surface | `#1F2225` | | recess | `#101214` | | text | `#EDEBE6` | | muted | `#8A8F92` | | border | `#2C3033` | | hairline | `#34393D` | | accent | `#E8C400` | | on_accent | `#16181A` | | graphite | `#2E3133` | | success | `#6FA56B` | | warning | `#D9A441` | | error | `#D5604A` | | info | `#6E94B0` | ### Typography - **Base Size**: 17px - **Body Font**: Space Grotesk - **Heading Font**: Space Grotesk - **Mono Font**: Space Mono - **Heading Weight**: 700 - **Heading Transform**: none - **Letter Spacing**: -0.018em - **Google Fonts Url**: https://fonts.googleapis.com/css2?family=Space+Grotesk:wght@400;500;600;700&family=Space+Mono:wght@400;700&display=swap ### Radii - **Plate**: 0 - **Card**: 16px - **Pill**: 9999px ### Shadows - **Sm**: 0 1px 0 rgba(0,0,0,.40) - **Md**: 0 14px 34px rgba(0,0,0,.45) - **Inset**: inset 0 0 0 1px #2C3033 ### Spacing - **Base**: 8px - **Scale**: [4,8,12,16,24,32,48,64] ### Surfaces - **Treatment**: matte powder-coat graphite plate - **Card Style**: Raised graphite plates and recessed tracks separated by cool hairline keylines and the dimension line; the rule and the keyline define an edge before shadow does. No gloss, no glass. - **Bg Pattern**: faint keyline registration grid ### Borders - **Default Width**: 1px - **Accent Width**: 2px - **Style**: solid - **Character**: Quiet cool keylines — thin, crisp, evenly applied; separation by surface, hairline rule, and dimension line, never heavy boxing or a single accent edge. ### Motion - **Duration**: 200ms - **Easing**: cubic-bezier(0.2,0,0.2,1) - **Philosophy**: deliberate — dimension lines draw on (the rule extends, end-caps snap, the callout fades up), like a part being measured; settled state is the default ## Rules ### Composition Compose every screen as a drawn specification sheet on a graphite ground: a summary band of meter-plates on a shared baseline, modules indexed under mono part codes, and each span dimensioned by a hairline measure rule with end-caps and a mono callout. ### Hierarchy Hierarchy comes from spacing, alignment, the dimension line, and label/value pairing — not oversized display. A value sits large in mono with its unit dimensioned beneath by a tick scale; scale is spent sparingly. ### Density Medium density with disciplined breathing room; ledgers and panels hold many figures, but every value has a defined slot, a measured padding, and a stated dimension. ### Signature The dimension line: a thin measure rule terminated by perpendicular end-caps carrying a centred Space Mono callout, bracketing section widths, value spans, and module gaps; the part-number register (a.01, a.02) and tick-scale datums extend it. Live, focused, or out-of-tolerance states are marked only by a single signal-yellow line, end-cap, dot, or fill — never by flooding a surface. ## Layout ### Grid A 12-column desktop grid collapses to 8 on tablet and a single measured column on mobile; modules span whole columns rather than arbitrary card widths, and the dimension line annotates the spans. ### Whitespace Deliberate and even — consistent gutters and module padding over dramatic voids; every gap should feel engineered and is often dimensioned. ### Density medium ### Responsive Renders from ~390px to 2560px+; minmax(0,1fr) columns and min-width:0 children keep grids contained, dimension callouts shrink and truncate on small screens; only the full-bleed hero spans 100vw, contained content capped and centred on ultra-wide. ### Breakpoints - **Mobile**: 390 - **Tablet**: 768 - **Desktop**: 1440 ## Guidance ### Do - Separate content with surface, hairline keyline, and the dimension line before reaching for colour. - Dimension important spans and values — state the size with a measure rule and a mono callout rather than implying it. - Reserve signal-yellow for the one thing that is live, focused, filling a meter, or out of tolerance. ### Don't - Do not flood a surface with accent colour or introduce a second bright hue. - Do not add gloss, glass, gradients, or decorative blobs. - Do not lean on an oversized italic-serif hero when a tight grotesque and a dimensioned datum do the work, or box the nav into a floating pill bar. - Do not leave any form control as a browser default. ### Accessibility High-contrast warm off-white ink on graphite; body 17px+; signal-yellow focus rings on every control; status conveyed by labelled pills, dots, and dimensioned callouts, not colour alone; respects prefers-reduced-motion and renders the settled state with no JavaScript. ## Imagery Direction ### Pairs With werkbild ### Summary Subjects rendered in the Werkbild product-plate technique pushed to its graphite end: one precisely engineered dark Braun-style measuring instrument, matte powder-coated panels, a knurled monochrome dial, an engraved measure-tick rule, a faint keyline grid behind, raking upper-left light, and exactly one signal-yellow indicator on a dark slate field. ### Subjects - precision measuring instruments and calipers - calibration consoles and engineered control plates - powder-coated dark product casings with engraved scales - recessed slots, knurled dials, and measure rules ### Usage One full-bleed hero per landing (--hero-image); feature imagery sits behind a directional graphite veil for legibility. Never use illustrated/generated art for the thumbnail.
---
version: "alpha"
name: "Maßstab"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
bg: "#16181A"
surface: "#1F2225"
recess: "#101214"
text: "#EDEBE6"
muted: "#8A8F92"
border: "#2C3033"
hairline: "#34393D"
accent: "#E8C400"
on_accent: "#16181A"
graphite: "#2E3133"
success: "#6FA56B"
warning: "#D9A441"
error: "#D5604A"
info: "#6E94B0"
typography:
headline-lg:
fontFamily: "Space Grotesk"
fontSize: "2.075rem"
fontWeight: 700
lineHeight: 1.1
letterSpacing: "-0.018em"
headline-md:
fontFamily: "Space Grotesk"
fontSize: "1.66rem"
fontWeight: 600
lineHeight: 1.15
letterSpacing: "-0.018em"
body-md:
fontFamily: "Space Grotesk"
fontSize: "17px"
fontWeight: 400
lineHeight: 1.5
letterSpacing: "-0.018em"
label-md:
fontFamily: "Space Mono"
fontSize: "0.75rem"
fontWeight: 600
lineHeight: 1
letterSpacing: "0.08em"
rounded:
plate: "0px"
card: "16px"
pill: "9999px"
spacing:
base: "8px"
xs: "4px"
sm: "8px"
md: "12px"
lg: "16px"
xl: "24px"
2xl: "32px"
3xl: "48px"
4xl: "64px"
components:
color-reference-bg:
backgroundColor: "{colors.bg}"
color-reference-surface:
backgroundColor: "{colors.surface}"
color-reference-recess:
backgroundColor: "{colors.recess}"
color-reference-text:
backgroundColor: "{colors.text}"
color-reference-muted:
backgroundColor: "{colors.muted}"
color-reference-border:
backgroundColor: "{colors.border}"
color-reference-hairline:
backgroundColor: "{colors.hairline}"
color-reference-accent:
backgroundColor: "{colors.accent}"
color-reference-on_accent:
backgroundColor: "{colors.on_accent}"
color-reference-graphite:
backgroundColor: "{colors.graphite}"
color-reference-success:
backgroundColor: "{colors.success}"
color-reference-warning:
backgroundColor: "{colors.warning}"
color-reference-error:
backgroundColor: "{colors.error}"
color-reference-info:
backgroundColor: "{colors.info}"
button-primary:
backgroundColor: "{colors.accent}"
textColor: "#000000"
typography: "{typography.label-md}"
rounded: "16px"
padding: "{spacing.md}"
card-surface:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "16px"
padding: "{spacing.md}"
input-default:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "16px"
height: "44px"
---
# Maßstab
## Overview
A dark, functional-minimalist interface language in the Dieter Rams / Braun tradition, read through the draughtsman's eye rather than the appliance's. The interface is a specification ledger on a graphite ground, annotated like an engineering drawing. Its signature mechanic is the dimension line — a hairline measure rule with end-caps and a mono callout that brackets every span, the way a draughtsman dimensions a part. Sections are filed under part codes, values carry tick-scale datums, and exactly one signal-yellow mark registers what is live, focused, or out of tolerance. Importance is registered to a slot, never flooded with colour.
### Values
- usefulness before novelty — every element is a measure, not a flourish
- clarity through reduction and declared dimension
- controls and values that state their own size and state
- honest hierarchy from spacing, alignment, and the measure — not loud display
### Anti-Values
- decorative ornament without an idea
- gloss, glass, gradients, or pastel washes
- accent colour used as a fill instead of a single signal
- ambiguous controls or unstyled browser defaults
### Visual Character
- A deep graphite ground carries raised plates and recessed tracks separated by cool hairline keylines; the faint registration grid sits behind as quiet engineering context, never decoration.
- Every span is dimensioned — a thin rule terminated by perpendicular end-caps with a centred Space Mono callout — so a screen reads as a drawn specification with its sizes stated, not implied.
- Sections are indexed under engraved part codes (a.01, a.02) and values sit over fine tick-scale datums, giving the whole layout the cadence of a parts catalogue rather than a card grid.
- Exactly one signal-yellow element is ever lit — a filled measure track, a single end-cap, a knurled-dial pointer, an out-of-tolerance figure — marking what is live without flooding any surface.
## Colors
Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.
| Token | Value |
|-------|-------|
| bg | `#16181A` |
| surface | `#1F2225` |
| recess | `#101214` |
| text | `#EDEBE6` |
| muted | `#8A8F92` |
| border | `#2C3033` |
| hairline | `#34393D` |
| accent | `#E8C400` |
| on_accent | `#16181A` |
| graphite | `#2E3133` |
| success | `#6FA56B` |
| warning | `#D9A441` |
| error | `#D5604A` |
| info | `#6E94B0` |
## Typography
- **Headline-Lg**: Space Grotesk, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: Space Grotesk, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Space Grotesk, 17px, weight 400, line-height 1.5.
- **Label-Md**: Space Mono, 0.75rem, weight 600, line-height 1.
## Layout
### Spacing Tokens
- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `12px`
- **Lg**: `16px`
- **Xl**: `24px`
- **2xl**: `32px`
- **3xl**: `48px`
- **4xl**: `64px`
### Grid
A 12-column desktop grid collapses to 8 on tablet and a single measured column on mobile; modules span whole columns rather than arbitrary card widths, and the dimension line annotates the spans.
### Whitespace
Deliberate and even — consistent gutters and module padding over dramatic voids; every gap should feel engineered and is often dimensioned.
### Density
medium
### Responsive
Renders from ~390px to 2560px+; minmax(0,1fr) columns and min-width:0 children keep grids contained, dimension callouts shrink and truncate on small screens; only the full-bleed hero spans 100vw, contained content capped and centred on ultra-wide.
### Breakpoints
- **Mobile**: 390
- **Tablet**: 768
- **Desktop**: 1440
## Elevation & Depth
### Shadows
- **Sm**: 0 1px 0 rgba(0,0,0,.40)
- **Md**: 0 14px 34px rgba(0,0,0,.45)
- **Inset**: inset 0 0 0 1px #2C3033
## Shapes
### Rounded
- **Plate**: `0px`
- **Card**: `16px`
- **Pill**: `9999px`
### Surfaces
- **Treatment**: matte powder-coat graphite plate
- **Card Style**: Raised graphite plates and recessed tracks separated by cool hairline keylines and the dimension line; the rule and the keyline define an edge before shadow does. No gloss, no glass.
- **Bg Pattern**: faint keyline registration grid
### Borders
- **Default Width**: 1px
- **Accent Width**: 2px
- **Style**: solid
- **Character**: Quiet cool keylines — thin, crisp, evenly applied; separation by surface, hairline rule, and dimension line, never heavy boxing or a single accent edge.
## Components
### Composition
Compose every screen as a drawn specification sheet on a graphite ground: a summary band of meter-plates on a shared baseline, modules indexed under mono part codes, and each span dimensioned by a hairline measure rule with end-caps and a mono callout.
### Hierarchy
Hierarchy comes from spacing, alignment, the dimension line, and label/value pairing — not oversized display. A value sits large in mono with its unit dimensioned beneath by a tick scale; scale is spent sparingly.
### Density
Medium density with disciplined breathing room; ledgers and panels hold many figures, but every value has a defined slot, a measured padding, and a stated dimension.
### Signature
The dimension line: a thin measure rule terminated by perpendicular end-caps carrying a centred Space Mono callout, bracketing section widths, value spans, and module gaps; the part-number register (a.01, a.02) and tick-scale datums extend it. Live, focused, or out-of-tolerance states are marked only by a single signal-yellow line, end-cap, dot, or fill — never by flooding a surface.
## shadcn/ui Usage
When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.
DESIGN.md with shadcn: `/language/en-019ef8fa-fa83-7911-bd79-6a45ceb8bb9e/DESIGN.with-shadcn.md`.
The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.
Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.
## Do's and Don'ts
- Do Separate content with surface, hairline keyline, and the dimension line before reaching for colour.
- Do Dimension important spans and values — state the size with a measure rule and a mono callout rather than implying it.
- Do Reserve signal-yellow for the one thing that is live, focused, filling a meter, or out of tolerance.
- Don't Do not flood a surface with accent colour or introduce a second bright hue.
- Don't Do not add gloss, glass, gradients, or decorative blobs.
- Don't Do not lean on an oversized italic-serif hero when a tight grotesque and a dimensioned datum do the work, or box the nav into a floating pill bar.
- Don't Do not leave any form control as a browser default.
### Accessibility
High-contrast warm off-white ink on graphite; body 17px+; signal-yellow focus rings on every control; status conveyed by labelled pills, dots, and dimensioned callouts, not colour alone; respects prefers-reduced-motion and renders the settled state with no JavaScript.
## Imagery Direction
### Pairs With
werkbild
### Summary
Subjects rendered in the Werkbild product-plate technique pushed to its graphite end: one precisely engineered dark Braun-style measuring instrument, matte powder-coated panels, a knurled monochrome dial, an engraved measure-tick rule, a faint keyline grid behind, raking upper-left light, and exactly one signal-yellow indicator on a dark slate field.
### Subjects
- precision measuring instruments and calipers
- calibration consoles and engineered control plates
- powder-coated dark product casings with engraved scales
- recessed slots, knurled dials, and measure rules
### Usage
One full-bleed hero per landing (--hero-image); feature imagery sits behind a directional graphite veil for legibility. Never use illustrated/generated art for the thumbnail.
```json
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "massstab",
"type": "registry:theme",
"title": "Maßstab shadcn Theme",
"cssVars": {
"theme": {},
"light": {
"background": "#16181A",
"foreground": "#EDEBE6",
"card": "#1F2225",
"card-foreground": "#EDEBE6",
"popover": "#1F2225",
"popover-foreground": "#EDEBE6",
"primary": "#EDEBE6",
"primary-foreground": "#111111",
"secondary": "#f4f4f5",
"secondary-foreground": "#111111",
"muted": "#8A8F92",
"muted-foreground": "#EDEBE6",
"accent": "#E8C400",
"accent-foreground": "#111111",
"destructive": "#D5604A",
"border": "#2C3033",
"input": "#2C3033",
"ring": "#E8C400",
"chart-1": "#EDEBE6",
"chart-2": "#f4f4f5",
"chart-3": "#E8C400",
"chart-4": "#6FA56B",
"chart-5": "#D9A441",
"sidebar": "#1F2225",
"sidebar-foreground": "#EDEBE6",
"sidebar-primary": "#EDEBE6",
"sidebar-primary-foreground": "#111111",
"sidebar-accent": "#6E94B0",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "#2C3033",
"sidebar-ring": "#E8C400",
"radius": "0.625rem"
},
"dark": {
"background": "#0f1115",
"foreground": "#f8fafc",
"card": "#181b22",
"card-foreground": "#f8fafc",
"popover": "#181b22",
"popover-foreground": "#f8fafc",
"primary": "#EDEBE6",
"primary-foreground": "#111111",
"secondary": "#252a33",
"secondary-foreground": "#f8fafc",
"muted": "#252a33",
"muted-foreground": "#a1a1aa",
"accent": "#E8C400",
"accent-foreground": "#111111",
"destructive": "#D5604A",
"border": "#303642",
"input": "#303642",
"ring": "#E8C400",
"chart-1": "#EDEBE6",
"chart-2": "#f4f4f5",
"chart-3": "#E8C400",
"chart-4": "#6FA56B",
"chart-5": "#D9A441",
"sidebar": "#181b22",
"sidebar-foreground": "#f8fafc",
"sidebar-primary": "#EDEBE6",
"sidebar-primary-foreground": "#111111",
"sidebar-accent": "#E8C400",
"sidebar-accent-foreground": "#111111",
"sidebar-border": "#303642",
"sidebar-ring": "#E8C400",
"radius": "0.625rem"
}
},
"meta": {
"source": "katagami",
"languageId": "en-019ef8fa-fa83-7911-bd79-6a45ceb8bb9e",
"slug": "massstab",
"componentManifest": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"nativeTokenNames": {
"colors": [
"accent",
"bg",
"border",
"error",
"graphite",
"hairline",
"info",
"muted",
"on_accent",
"recess",
"success",
"surface",
"text",
"warning"
],
"typography": [
"base_size",
"body_font",
"google_fonts_url",
"heading_font",
"heading_transform",
"heading_weight",
"letter_spacing",
"mono_font"
],
"radii": [
"card",
"pill",
"plate"
],
"shadows": [
"inset",
"md",
"sm"
],
"spacing": [
"base",
"scale"
],
"surfaces": [
"bg_pattern",
"card_style",
"treatment"
],
"borders": [
"accent_width",
"character",
"default_width",
"style"
],
"motion": [
"duration",
"easing",
"philosophy"
]
}
}
}
```The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
Agent-generated
Keep Maßstaband swap a palette and an art style onto it — the landing & dashboard recolor live. The Studio does the same with all three lanes free.
Copy this when the target app uses shadcn/ui. It packages the Katagami DESIGN.md context with the install list, theme variables, component recipes, preview-shot contract, and starter TSX in one Markdown companion.
npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table:root {
--background: #16181A;
--foreground: #EDEBE6;
--card: #1F2225;
--card-foreground: #EDEBE6;
--popover: #1F2225;
--popover-foreground: #EDEBE6;
--primary: #EDEBE6;
--primary-foreground: #111111;
--secondary: #f4f4f5;
--secondary-foreground: #111111;
--muted: #8A8F92;
--muted-foreground: #EDEBE6;
--accent: #E8C400;
--accent-foreground: #111111;
--destructive: #D5604A;
--border: #2C3033;
--input: #2C3033;
--ring: #E8C400;
--chart-1: #EDEBE6;
--chart-2: #f4f4f5;
--chart-3: #E8C400;
--chart-4: #6FA56B;
--chart-5: #D9A441;
--sidebar: #1F2225;
--sidebar-foreground: #EDEBE6;
--sidebar-primary: #EDEBE6;
--sidebar-primary-foreground: #111111;
--sidebar-accent: #6E94B0;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: #2C3033;
--sidebar-ring: #E8C400;
--radius: 0.625rem;
}
.dark {
--background: #0f1115;
--foreground: #f8fafc;
--card: #181b22;
--card-foreground: #f8fafc;
--popover: #181b22;
--popover-foreground: #f8fafc;
--primary: #EDEBE6;
--primary-foreground: #111111;
--secondary: #252a33;
--secondary-foreground: #f8fafc;
--muted: #252a33;
--muted-foreground: #a1a1aa;
--accent: #E8C400;
--accent-foreground: #111111;
--destructive: #D5604A;
--border: #303642;
--input: #303642;
--ring: #E8C400;
--chart-1: #EDEBE6;
--chart-2: #f4f4f5;
--chart-3: #E8C400;
--chart-4: #6FA56B;
--chart-5: #D9A441;
--sidebar: #181b22;
--sidebar-foreground: #f8fafc;
--sidebar-primary: #EDEBE6;
--sidebar-primary-foreground: #111111;
--sidebar-accent: #E8C400;
--sidebar-accent-foreground: #111111;
--sidebar-border: #303642;
--sidebar-ring: #E8C400;
--radius: 0.625rem;
}
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function MaStabShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Maßstab</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "massstab",
"type": "registry:theme",
"cssVars": {
"theme": {
"font-sans": "Space Grotesk, system-ui, -apple-system, sans-serif",
"font-mono": "Space Mono, ui-monospace, monospace",
"radius": "16px"
},
"dark": {
"background": "#16181A",
"foreground": "#EDEBE6",
"card": "#1F2225",
"card-foreground": "#EDEBE6",
"popover": "#1F2225",
"popover-foreground": "#EDEBE6",
"primary": "#E8C400",
"primary-foreground": "#16181A",
"secondary": "#1F2225",
"secondary-foreground": "#EDEBE6",
"muted": "#101214",
"muted-foreground": "#8A8F92",
"accent": "#E8C400",
"accent-foreground": "#16181A",
"destructive": "#D5604A",
"destructive-foreground": "#EDEBE6",
"border": "#2C3033",
"input": "#2C3033",
"ring": "#E8C400",
"chart-1": "#E8C400",
"chart-2": "#8A8F92",
"chart-3": "#6E94B0",
"chart-4": "#6FA56B",
"chart-5": "#D5604A",
"radius": "16px"
},
"light": {
"background": "#16181A",
"foreground": "#EDEBE6",
"card": "#1F2225",
"card-foreground": "#EDEBE6",
"popover": "#1F2225",
"popover-foreground": "#EDEBE6",
"primary": "#E8C400",
"primary-foreground": "#16181A",
"secondary": "#1F2225",
"secondary-foreground": "#EDEBE6",
"muted": "#101214",
"muted-foreground": "#8A8F92",
"accent": "#E8C400",
"accent-foreground": "#16181A",
"destructive": "#D5604A",
"destructive-foreground": "#EDEBE6",
"border": "#2C3033",
"input": "#2C3033",
"ring": "#E8C400",
"radius": "16px"
}
},
"meta": {
"note": "Maßstab is a dark-only functional-minimalist language; both light and dark map to the same graphite ground deliberately. One signal-yellow primary, quiet graphite chrome, engineering corners (radius 16 for soft cards, 0 for plates/tracks via component overrides).",
"visualProfile": "custom"
}
}
# Maßstab shadcn/ui Components
Artifact: `component-recipes-v1`
Author: `katagami-ui-projection`
Language ID: `en-019ef8fa-fa83-7911-bd79-6a45ceb8bb9e`
Slug: `massstab`
## Intent
A dark, functional-minimalist interface language in the Dieter Rams / Braun tradition, read through the draughtsman's eye rather than the appliance's. The interface is a specification ledger on a graphite ground, annotated like an engineering drawing. Its signature mechanic is the dimension line — a hairline measure rule with end-caps and a mono callout that brackets every span, the way a draughtsman dimensions a part. Sections are filed under part codes, values carry tick-scale datums, and exactly one signal-yellow mark registers what is live, focused, or out of tolerance. Importance is registered to a slot, never flooded with colour.
## Required primitives
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Install with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
## Token cues
Colors:
{
"bg": "#16181A",
"surface": "#1F2225",
"recess": "#101214",
"text": "#EDEBE6",
"muted": "#8A8F92",
"border": "#2C3033",
"hairline": "#34393D",
"accent": "#E8C400",
"on_accent": "#16181A",
"graphite": "#2E3133",
"success": "#6FA56B",
"warning": "#D9A441",
"error": "#D5604A",
"info": "#6E94B0"
}
Typography:
{
"base_size": "17px",
"body_font": "Space Grotesk",
"heading_font": "Space Grotesk",
"mono_font": "Space Mono",
"heading_weight": "700",
"heading_transform": "none",
"letter_spacing": "-0.018em",
"google_fonts_url": "https://fonts.googleapis.com/css2?family=Space+Grotesk:wght@400;500;600;700&family=Space+Mono:wght@400;700&display=swap"
}
## Visual character to preserve
- A deep graphite ground carries raised plates and recessed tracks separated by cool hairline keylines; the faint registration grid sits behind as quiet engineering context, never decoration.
- Every span is dimensioned — a thin rule terminated by perpendicular end-caps with a centred Space Mono callout — so a screen reads as a drawn specification with its sizes stated, not implied.
- Sections are indexed under engraved part codes (a.01, a.02) and values sit over fine tick-scale datums, giving the whole layout the cadence of a parts catalogue rather than a card grid.
- Exactly one signal-yellow element is ever lit — a filled measure track, a single end-cap, a knurled-dial pointer, an out-of-tolerance figure — marking what is live without flooding any surface.
## ShadSync visual profile
{
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": false,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
}
## Signature component recipes
### Button
Use `Button` for primary, secondary, outline, and ghost actions. Primary actions must expose the language's strongest contrast pair, while secondary and ghost actions should preserve the surface treatment instead of falling back to default neutral SaaS styling.
### Card
Use `Card`, `CardHeader`, `CardContent`, `CardFooter`, and `CardAction` as the main composition frame. Cards should demonstrate the language's surface, border, hierarchy, and density rules rather than appearing as generic rounded rectangles.
### Input and Textarea
Use `Input` and `Textarea` with visible focus rings, field labels, validation states, and the language's rhythm. Forms should show real product content, not placeholder-only controls.
### Select, Tabs, and Table
Use `Select`, `Tabs`, and `Table` to prove navigation, filtering, and dense data states. The table should show row rhythm, separators, hover/focus states, and an empty or status state when the language calls for it.
### Dialog and Sheet
Use `Dialog` for centered decisions and `Sheet` for contextual editing. Both should inherit the language's spacing, border, overlay, and motion rules.
## Preview shots
- `application-shell`: dashboard or workspace shell with navigation, cards, forms, and state badges.
- `detail-editor`: focused editing flow using input, textarea, select, switch/checkbox, dialog or sheet, and action buttons.
- `data-operations`: table-heavy operational view with tabs, dropdown menu affordances, badges, and destructive/empty states.
- Each preview shot must include a renderable `scene` payload with concrete headline, description, actions, and rows/fields/stats for the UI preview.
## Implementation contract
- Start from local `ui/src/components/ui` shadcn-style primitives; do not create a second component system.
- Apply `/katagami/shadcn/massstab/registry-theme.json` variables, then use these recipes for composition and state design.
- Preserve Katagami token names as source metadata; shadcn semantic names are only the export surface.
- Do: Separate content with surface, hairline keyline, and the dimension line before reaching for colour.; Dimension important spans and values — state the size with a measure rule and a mono callout rather than implying it.; Reserve signal-yellow for the one thing that is live, focused, filling a meter, or out of tolerance.
- Do not: Do not flood a surface with accent colour or introduce a second bright hue.; Do not add gloss, glass, gradients, or decorative blobs.; Do not lean on an oversized italic-serif hero when a tight grotesque and a dimensioned datum do the work, or box the nav into a floating pill bar.; Do not leave any form control as a browser default.
## Copy-paste component example
This generated starter proves the import shape. Production Katagami agents should replace it with a language-specific product composition.
```tsx
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function MaStabShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Maßstab</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
```
## Layout notes
{
"grid": "A 12-column desktop grid collapses to 8 on tablet and a single measured column on mobile; modules span whole columns rather than arbitrary card widths, and the dimension line annotates the spans.",
"whitespace": "Deliberate and even — consistent gutters and module padding over dramatic voids; every gap should feel engineered and is often dimensioned.",
"density": "medium",
"responsive": "Renders from ~390px to 2560px+; minmax(0,1fr) columns and min-width:0 children keep grids contained, dimension callouts shrink and truncate on small screens; only the full-bleed hero spans 100vw, contained content capped and centred on ultra-wide.",
"breakpoints": {
"mobile": "390",
"tablet": "768",
"desktop": "1440"
}
}
{
"artifact": "katagami:shadcn-preview-shots",
"version": "preview-shots-v1",
"generator": "katagami-ui-compatibility-projection",
"generatedBy": "katagami-ui-projection",
"requiresVisualProfile": true,
"schema": "katagami:shadcn-preview-shots/renderable-v1",
"renderable": true,
"language": {
"id": "en-019ef8fa-fa83-7911-bd79-6a45ceb8bb9e",
"name": "Maßstab",
"slug": "massstab"
},
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"identityNotes": [
"A deep graphite ground carries raised plates and recessed tracks separated by cool hairline keylines; the faint registration grid sits behind as quiet engineering context, never decoration.",
"Every span is dimensioned — a thin rule terminated by perpendicular end-caps with a centred Space Mono callout — so a screen reads as a drawn specification with its sizes stated, not implied.",
"Sections are indexed under engraved part codes (a.01, a.02) and values sit over fine tick-scale datums, giving the whole layout the cadence of a parts catalogue rather than a card grid.",
"Exactly one signal-yellow element is ever lit — a filled measure track, a single end-cap, a knurled-dial pointer, an out-of-tolerance figure — marking what is live without flooding any surface."
],
"visualProfile": {
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": false,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
},
"shots": [
{
"id": "application-shell",
"title": "Application shell",
"viewport": "desktop",
"primitives": [
"button",
"card",
"input",
"select",
"tabs",
"badge",
"separator",
"table"
],
"composition": "A real product workspace with navigation, summary cards, filtering controls, and one dense content region.",
"mustShow": [
"primary and secondary actions",
"card hierarchy",
"filterable state",
"table or list density"
],
"avoid": [
"component inventory walls",
"placeholder-only content",
"generic rounded SaaS chrome"
],
"scene": {
"eyebrow": "workspace spread",
"headline": "Maßstab launch room",
"description": "A product team workspace where navigation, filters, metrics, and dense rows carry the language's visible structure.",
"primaryAction": "Apply theme",
"secondaryAction": "Review states",
"stats": [
{
"label": "components",
"value": "16",
"tone": "accent"
},
{
"label": "states",
"value": "ready"
},
{
"label": "density",
"value": "balanced",
"tone": "warning"
}
],
"rows": [
{
"label": "Primary flow",
"value": "mapped",
"status": "active"
},
{
"label": "Token coverage",
"value": "semantic",
"status": "synced"
},
{
"label": "Responsive proof",
"value": "queued",
"status": "review"
}
],
"statuses": [
"Active",
"Synced",
"Draft"
]
}
},
{
"id": "detail-editor",
"title": "Detail editor",
"viewport": "tablet",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"checkbox",
"switch",
"slider",
"dialog",
"sheet"
],
"composition": "A focused editing flow with form fields, validation, confirmation, and a contextual side panel.",
"mustShow": [
"focus ring",
"error or destructive state",
"dialog or sheet treatment",
"written guidance content"
],
"avoid": [
"unstyled browser controls",
"floating cards inside cards",
"missing labels"
],
"scene": {
"eyebrow": "editing flow",
"headline": "Language recipe editor",
"description": "A focused form proving labels, validation, toggles, panel rhythm, and action hierarchy.",
"primaryAction": "Save recipe",
"secondaryAction": "Open sheet",
"fields": [
{
"label": "Component family",
"value": "Narrative cards"
},
{
"label": "State treatment",
"value": "Visible focus + validation"
},
{
"label": "Motion",
"value": "Small lift, no opacity-only fade"
}
],
"statuses": [
"Focus",
"Invalid",
"Confirmed"
]
}
},
{
"id": "data-operations",
"title": "Data operations",
"viewport": "mobile",
"primitives": [
"button",
"tabs",
"badge",
"dropdown-menu",
"table",
"tooltip",
"separator"
],
"composition": "A compact operational view proving row rhythm, stacked actions, menu states, badges, and empty/destructive states.",
"mustShow": [
"responsive reflow",
"dense row styling",
"menu affordance",
"status badge system"
],
"avoid": [
"desktop-only tables",
"text overflow",
"default shadcn spacing without Katagami character"
],
"scene": {
"eyebrow": "operations",
"headline": "Compact review queue",
"description": "A narrow viewport scene with rows, menus, tooltips, badges, and destructive affordances.",
"primaryAction": "Resolve",
"secondaryAction": "Filter",
"rows": [
{
"label": "Button hierarchy",
"value": "approved",
"status": "ok"
},
{
"label": "Table rhythm",
"value": "needs pass",
"status": "watch"
},
{
"label": "Empty state",
"value": "designed",
"status": "done"
}
],
"statuses": [
"Queued",
"Blocked",
"Done"
]
}
}
],
"componentRecipes": [
{
"primitive": "button",
"intent": "Prove action hierarchy, focus, disabled, and destructive states."
},
{
"primitive": "card",
"intent": "Carry the language surface, border, elevation, and density rules."
},
{
"primitive": "input",
"intent": "Show labels, focus rings, validation, and spacing rhythm."
},
{
"primitive": "textarea",
"intent": "Show longer guidance, validation copy, and writing density."
},
{
"primitive": "select",
"intent": "Show filtering, selection contrast, and menu trigger styling."
},
{
"primitive": "dialog",
"intent": "Show centered decision states and overlay treatment."
},
{
"primitive": "sheet",
"intent": "Show contextual side panels and responsive editing."
},
{
"primitive": "tabs",
"intent": "Show navigational structure and active/inactive contrast."
},
{
"primitive": "badge",
"intent": "Show compact status vocabulary and semantic colors."
},
{
"primitive": "separator",
"intent": "Show section rhythm without generic gray dividers."
},
{
"primitive": "checkbox",
"intent": "Show binary selection with visible focus and checked states."
},
{
"primitive": "switch",
"intent": "Show settings toggles and on/off contrast."
},
{
"primitive": "slider",
"intent": "Show numeric adjustment with track/thumb styling."
},
{
"primitive": "tooltip",
"intent": "Show concise explanation styling above compact controls."
},
{
"primitive": "dropdown-menu",
"intent": "Show action menus, destructive items, and grouped choices."
},
{
"primitive": "table",
"intent": "Show dense operational data, separators, row states, and responsive behavior."
}
],
"qualityRules": {
"do": [
"Separate content with surface, hairline keyline, and the dimension line before reaching for colour.",
"Dimension important spans and values — state the size with a measure rule and a mono callout rather than implying it.",
"Reserve signal-yellow for the one thing that is live, focused, filling a meter, or out of tolerance."
],
"dont": [
"Do not flood a surface with accent colour or introduce a second bright hue.",
"Do not add gloss, glass, gradients, or decorative blobs.",
"Do not lean on an oversized italic-serif hero when a tight grotesque and a dimensioned datum do the work, or box the nav into a floating pill bar.",
"Do not leave any form control as a browser default."
]
}
}
