# Splice

## Philosophy

A film-lab review console as a design language. Every contact frame lies on one deep-blue lightboard in shot order; you flag the keepers with colour-coded washi tape, and the colour is the decision — it routes each frame to its print run, its hold pile, or its darkroom note. Reimagined from the Washi Tape Grid brief around the SEQUENCE: a sprocket-holed select rail instead of a planner page, a glowing ink-blue board instead of cream paper.

### Values

- Colour is the decision, made physical — three tapes, three routes, all visible on the board
- Sequence first — frames live in shot order on one rail, never scattered
- Nothing decided into a hidden field — every choice shows on the lightboard
- Luminous depth — surfaces glow up from an ink-blue ground, layered like taped stationery
- Accessible by design — colour always pairs with a status dot and its word
- Industrial calm — a precise console voice, not a craft scrapbook

### Anti-Values

- Cream-paper planner pages and friendly rounded stationery warmth
- A dominant dated daily page with slips clustered around it
- Decision hidden behind a status dropdown instead of shown as tape
- Relying on colour alone to carry meaning
- White or light default grounds; grey-grey neutrals

## Tokens

### Colors

| Name | Value |
|------|-------|
| bg | `#0E1B36` |
| bg_deep | `#0A1428` |
| surface | `#16284A` |
| surface_2 | `#1D335B` |
| glow | `#233C6B` |
| text | `#EEF2FA` |
| muted | `#94A6CC` |
| cream | `#F4EEE2` |
| border | `transparent` |
| accent | `#F2B43C` |
| on_accent | `#15243F` |
| amber | `#F2B43C` |
| coral | `#F0654E` |
| teal | `#3FB8C4` |
| success | `#5FCB8E` |
| warning | `#F2B43C` |
| error | `#F0654E` |
| info | `#3FB8C4` |

### Typography

- **Base Size**: 17px
- **Body Font**: Inter
- **Heading Font**: Archivo
- **Mono Font**: Space Mono
- **Heading Weight**: 800
- **Heading Transform**: none
- **Letter Spacing**: -0.03em
- **Google Fonts Url**: https://fonts.googleapis.com/css2?family=Archivo:wght@500;600;700;800;900&family=Inter:wght@400;500;600;700&family=Space+Mono:wght@400;700&display=swap

### Radii

- **None**: 0
- **Frame**: 16px
- **Pill**: 9999px
- **Default**: 16px
- **Full**: 9999px

### Shadows

- **Sm**: 0 1px 3px rgba(5,10,24,0.40)
- **Md**: 0 8px 28px rgba(5,10,24,0.45)
- **Lg**: 0 22px 60px rgba(5,10,24,0.55)
- **Glow Cell**: 0 0 0 1px rgba(143,176,228,0.06), 0 14px 40px rgba(8,16,40,0.55), inset 0 1px 0 rgba(180,205,255,0.07)

### Spacing

- **Base**: 8px
- **Scale**: [4,8,12,16,24,32,48,96]

### Surfaces

- **Treatment**: glow-lift panels on an ink-blue lightboard
- **Card Style**: Lifted blue panels (#16284A) with an inner top-light and a deep paper shadow; frame cells glow toward #233C6B. No borders — separation is glow, tape and space.
- **Bg Pattern**: faint pin-grid (radial dot at 26px, ~0.10 opacity) — the lightboard's perforation grid

### Borders

- **Default Width**: 0
- **Style**: none
- **Character**: No borders and no one-sided accent edges. A card may carry a torn translucent tape header tab (amber/coral/teal) pinned above it, or two hand-cut square corner tabs — never a single coloured edge or rule-line.

### Motion

- **Duration**: 280ms
- **Easing**: cubic-bezier(0.22,0.68,0,1)
- **Easing Tape**: cubic-bezier(0.34,1.3,0.64,1)
- **Philosophy**: Cells lift on hover; sections rise in on scroll. The settled page is the default with no JS (a .js class gates the hidden start). Respects prefers-reduced-motion.

## Rules

### Composition

Build a film-lab review console, not a component catalog: a horizontal sprocket-holed SELECT RAIL of frames in shot order leads, with a contact-sheet grid, roll exposure meters and a frame queue below. The rail is the compositional spine; the dashboard is a sidebar console.

### Hierarchy

Hierarchy is the rail position, frame scale and tape colour: the lead rail dominates, taped selects pull forward, mono frame-codes and stamps carry metadata. Archivo display leads, Inter body reads, Space Mono stamps date. Never solve hierarchy with more accent colours.

### Density

Comfortable console density with strong spacing contrast: 8px clusters, 16px groups, 24px panel padding, 48px section separation, 96px opening field. Frames sit close on the rail; sections breathe.

### Signature

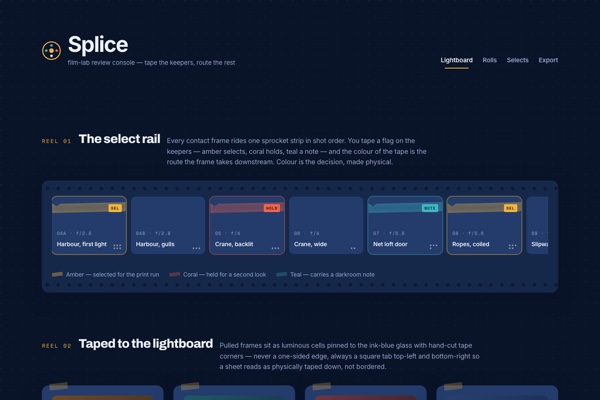

The select rail — a sprocket filmstrip where a torn translucent tape flag routes each frame (amber select, coral hold, teal note); taped contact cells with two hand-cut square corner tabs; dotted-border Space Mono dated stamps at -1.5deg; status dot always paired with its label; route donut and exposure meters drawn from the three tape colours.

## Layout

### Grid

A horizontal rail leads (grid-auto-flow column, scrolls on overflow); below it a contact-sheet auto-fill grid, a 1.5fr/1fr split for meters + chart, and a frame-queue table. The dashboard is a 232px sidebar + fluid main.

### Whitespace

Generous and measured; strong page-edge padding, sections separated by 96px opening fields, panels by space and glow, never by rules or floating gaps.

### Density

balanced

### Responsive

Tablet keeps the rail and stacks the split to one column; mobile is a single column with a horizontally-scrolling rail and the sidebar collapsed to a top strip; non-essential nav hidden. Nothing overflows horizontally.

### Breakpoints

- **Desktop**: 1440
- **Tablet**: 980
- **Mobile**: 640

## Guidance

### Do

- Lead with the select rail; keep frames in shot order and let tape flags route them.
- Tape a card with a torn translucent header tab or two square corner tabs — never a one-sided edge.
- Reserve amber for selects/primary, coral for holds/attention, teal for notes/secondary; pair every colour with a dot and a word.
- Keep the ground deep ink-blue under a faint pin-grid; let frame cells glow up; use cream as the brightest value.
- Stamp closed passes with a dotted-border Space Mono date at a slight tilt.

### Don't

- Default to cream/white grounds, friendly rounded planner pages, or a dominant dated daily page.
- Add borders, hairline dividers, top rules, or single accent edges.
- Use more than three tape colours in proximity, or rely on colour alone for state.
- Trap navigation in a floating pill bar or nest cards.

### Accessibility

Near-white text on ink-blue and ink text on amber keep AA+ contrast; amber/coral/teal are used as fills behind dark text or as dots beside labels, never as body text; the pin-grid stays below 0.10 opacity; every form control is explicitly styled with a visible amber focus ring; status is always a coloured dot paired with its word.

## Imagery Direction

### Pairs With

tearline

### Summary

Torn translucent washi-tape collage (the Tearline technique) applied to film-lab subjects on a deep ink-blue lightboard: filmstrips, contact frames and rolls reconstructed from overlapping semi-transparent tape bands that glow through, with amber/coral/teal highlighter tape and cream as the brightest value, over a faint pin-grid ground.

### Subjects

- a sprocket filmstrip unspooling on a lightboard
- a roll of film
- taped contact-sheet frames
- a lightbox loupe over negatives
- a reel of tape

### Usage

One full-bleed hero of the taped filmstrip + roll on the glowing blue board, the deep-blue scrim weighted lower-left for copy; smaller taped-frame subjects as feature panes and spot collages.

---
version: "alpha"
name: "Splice"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
  bg: "#0E1B36"
  bg_deep: "#0A1428"
  surface: "#16284A"
  surface_2: "#1D335B"
  glow: "#233C6B"
  text: "#EEF2FA"
  muted: "#94A6CC"
  cream: "#F4EEE2"
  accent: "#F2B43C"
  on_accent: "#15243F"
  amber: "#F2B43C"
  coral: "#F0654E"
  teal: "#3FB8C4"
  success: "#5FCB8E"
  warning: "#F2B43C"
  error: "#F0654E"
  info: "#3FB8C4"
typography:
  headline-lg:
    fontFamily: "Archivo"
    fontSize: "2.075rem"
    fontWeight: 700
    lineHeight: 1.1
    letterSpacing: "-0.03em"
  headline-md:
    fontFamily: "Archivo"
    fontSize: "1.66rem"
    fontWeight: 600
    lineHeight: 1.15
    letterSpacing: "-0.03em"
  body-md:
    fontFamily: "Inter"
    fontSize: "17px"
    fontWeight: 400
    lineHeight: 1.5
    letterSpacing: "-0.03em"
  label-md:
    fontFamily: "Space Mono"
    fontSize: "0.75rem"
    fontWeight: 600
    lineHeight: 1
    letterSpacing: "0.08em"
rounded:
  none: "0px"
  frame: "16px"
  pill: "9999px"
  default: "16px"
  full: "9999px"
spacing:
  base: "8px"
  xs: "4px"
  sm: "8px"
  md: "12px"
  lg: "16px"
  xl: "24px"
  2xl: "32px"
  3xl: "48px"
  4xl: "96px"
components:
  color-reference-bg:
    backgroundColor: "{colors.bg}"
  color-reference-bg_deep:
    backgroundColor: "{colors.bg_deep}"
  color-reference-surface:
    backgroundColor: "{colors.surface}"
  color-reference-surface_2:
    backgroundColor: "{colors.surface_2}"
  color-reference-glow:
    backgroundColor: "{colors.glow}"
  color-reference-text:
    backgroundColor: "{colors.text}"
  color-reference-muted:
    backgroundColor: "{colors.muted}"
  color-reference-cream:
    backgroundColor: "{colors.cream}"
  color-reference-accent:
    backgroundColor: "{colors.accent}"
  color-reference-on_accent:
    backgroundColor: "{colors.on_accent}"
  color-reference-amber:
    backgroundColor: "{colors.amber}"
  color-reference-coral:
    backgroundColor: "{colors.coral}"
  color-reference-teal:
    backgroundColor: "{colors.teal}"
  color-reference-success:
    backgroundColor: "{colors.success}"
  color-reference-warning:
    backgroundColor: "{colors.warning}"
  color-reference-error:
    backgroundColor: "{colors.error}"
  color-reference-info:
    backgroundColor: "{colors.info}"
  button-primary:
    backgroundColor: "{colors.accent}"
    textColor: "#000000"
    typography: "{typography.label-md}"
    rounded: "{rounded.none}"
    padding: "{spacing.md}"
  card-surface:
    backgroundColor: "{colors.surface}"
    textColor: "{colors.text}"
    rounded: "{rounded.none}"
    padding: "{spacing.md}"
  input-default:
    backgroundColor: "{colors.surface}"
    textColor: "{colors.text}"
    rounded: "{rounded.none}"
    height: "44px"
---

# Splice

## Overview

A film-lab review console as a design language. Every contact frame lies on one deep-blue lightboard in shot order; you flag the keepers with colour-coded washi tape, and the colour is the decision — it routes each frame to its print run, its hold pile, or its darkroom note. Reimagined from the Washi Tape Grid brief around the SEQUENCE: a sprocket-holed select rail instead of a planner page, a glowing ink-blue board instead of cream paper.

### Values

- Colour is the decision, made physical — three tapes, three routes, all visible on the board
- Sequence first — frames live in shot order on one rail, never scattered
- Nothing decided into a hidden field — every choice shows on the lightboard
- Luminous depth — surfaces glow up from an ink-blue ground, layered like taped stationery
- Accessible by design — colour always pairs with a status dot and its word
- Industrial calm — a precise console voice, not a craft scrapbook

### Anti-Values

- Cream-paper planner pages and friendly rounded stationery warmth
- A dominant dated daily page with slips clustered around it
- Decision hidden behind a status dropdown instead of shown as tape
- Relying on colour alone to carry meaning
- White or light default grounds; grey-grey neutrals

## Colors

Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.

| Token | Value |
|-------|-------|
| bg | `#0E1B36` |
| bg_deep | `#0A1428` |
| surface | `#16284A` |
| surface_2 | `#1D335B` |
| glow | `#233C6B` |
| text | `#EEF2FA` |
| muted | `#94A6CC` |
| cream | `#F4EEE2` |
| accent | `#F2B43C` |
| on_accent | `#15243F` |
| amber | `#F2B43C` |
| coral | `#F0654E` |
| teal | `#3FB8C4` |
| success | `#5FCB8E` |
| warning | `#F2B43C` |
| error | `#F0654E` |
| info | `#3FB8C4` |

## Typography

- **Headline-Lg**: Archivo, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: Archivo, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Inter, 17px, weight 400, line-height 1.5.
- **Label-Md**: Space Mono, 0.75rem, weight 600, line-height 1.

## Layout

### Spacing Tokens

- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `12px`
- **Lg**: `16px`
- **Xl**: `24px`
- **2xl**: `32px`
- **3xl**: `48px`
- **4xl**: `96px`

### Grid

A horizontal rail leads (grid-auto-flow column, scrolls on overflow); below it a contact-sheet auto-fill grid, a 1.5fr/1fr split for meters + chart, and a frame-queue table. The dashboard is a 232px sidebar + fluid main.

### Whitespace

Generous and measured; strong page-edge padding, sections separated by 96px opening fields, panels by space and glow, never by rules or floating gaps.

### Density

balanced

### Responsive

Tablet keeps the rail and stacks the split to one column; mobile is a single column with a horizontally-scrolling rail and the sidebar collapsed to a top strip; non-essential nav hidden. Nothing overflows horizontally.

### Breakpoints

- **Desktop**: 1440
- **Tablet**: 980
- **Mobile**: 640

## Elevation & Depth

### Shadows

- **Sm**: 0 1px 3px rgba(5,10,24,0.40)
- **Md**: 0 8px 28px rgba(5,10,24,0.45)
- **Lg**: 0 22px 60px rgba(5,10,24,0.55)
- **Glow Cell**: 0 0 0 1px rgba(143,176,228,0.06), 0 14px 40px rgba(8,16,40,0.55), inset 0 1px 0 rgba(180,205,255,0.07)

## Shapes

### Rounded

- **None**: `0px`
- **Frame**: `16px`
- **Pill**: `9999px`
- **Default**: `16px`
- **Full**: `9999px`

### Surfaces

- **Treatment**: glow-lift panels on an ink-blue lightboard
- **Card Style**: Lifted blue panels (#16284A) with an inner top-light and a deep paper shadow; frame cells glow toward #233C6B. No borders — separation is glow, tape and space.
- **Bg Pattern**: faint pin-grid (radial dot at 26px, ~0.10 opacity) — the lightboard's perforation grid

### Borders

- **Default Width**: 0
- **Style**: none
- **Character**: No borders and no one-sided accent edges. A card may carry a torn translucent tape header tab (amber/coral/teal) pinned above it, or two hand-cut square corner tabs — never a single coloured edge or rule-line.

## Components

### Composition

Build a film-lab review console, not a component catalog: a horizontal sprocket-holed SELECT RAIL of frames in shot order leads, with a contact-sheet grid, roll exposure meters and a frame queue below. The rail is the compositional spine; the dashboard is a sidebar console.

### Hierarchy

Hierarchy is the rail position, frame scale and tape colour: the lead rail dominates, taped selects pull forward, mono frame-codes and stamps carry metadata. Archivo display leads, Inter body reads, Space Mono stamps date. Never solve hierarchy with more accent colours.

### Density

Comfortable console density with strong spacing contrast: 8px clusters, 16px groups, 24px panel padding, 48px section separation, 96px opening field. Frames sit close on the rail; sections breathe.

### Signature

The select rail — a sprocket filmstrip where a torn translucent tape flag routes each frame (amber select, coral hold, teal note); taped contact cells with two hand-cut square corner tabs; dotted-border Space Mono dated stamps at -1.5deg; status dot always paired with its label; route donut and exposure meters drawn from the three tape colours.

## shadcn/ui Usage

When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.

DESIGN.md with shadcn: `/language/en-019efa18-ef0f-7481-ad4a-bac4ce211f44/DESIGN.with-shadcn.md`.

The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.

Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.

Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table

Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.

## Do's and Don'ts

- Do Lead with the select rail; keep frames in shot order and let tape flags route them.
- Do Tape a card with a torn translucent header tab or two square corner tabs — never a one-sided edge.
- Do Reserve amber for selects/primary, coral for holds/attention, teal for notes/secondary; pair every colour with a dot and a word.
- Do Keep the ground deep ink-blue under a faint pin-grid; let frame cells glow up; use cream as the brightest value.
- Do Stamp closed passes with a dotted-border Space Mono date at a slight tilt.
- Don't Default to cream/white grounds, friendly rounded planner pages, or a dominant dated daily page.
- Don't Add borders, hairline dividers, top rules, or single accent edges.
- Don't Use more than three tape colours in proximity, or rely on colour alone for state.
- Don't Trap navigation in a floating pill bar or nest cards.

### Accessibility

Near-white text on ink-blue and ink text on amber keep AA+ contrast; amber/coral/teal are used as fills behind dark text or as dots beside labels, never as body text; the pin-grid stays below 0.10 opacity; every form control is explicitly styled with a visible amber focus ring; status is always a coloured dot paired with its word.

## Imagery Direction

### Pairs With

tearline

### Summary

Torn translucent washi-tape collage (the Tearline technique) applied to film-lab subjects on a deep ink-blue lightboard: filmstrips, contact frames and rolls reconstructed from overlapping semi-transparent tape bands that glow through, with amber/coral/teal highlighter tape and cream as the brightest value, over a faint pin-grid ground.

### Subjects

- a sprocket filmstrip unspooling on a lightboard
- a roll of film
- taped contact-sheet frames
- a lightbox loupe over negatives
- a reel of tape

### Usage

One full-bleed hero of the taped filmstrip + roll on the glowing blue board, the deep-blue scrim weighted lower-left for copy; smaller taped-frame subjects as feature panes and spot collages.

```json
{
  "$schema": "https://ui.shadcn.com/schema/registry-item.json",
  "name": "splice",
  "type": "registry:theme",
  "title": "Splice shadcn Theme",
  "cssVars": {
    "theme": {},
    "light": {
      "background": "#0E1B36",
      "foreground": "#EEF2FA",
      "card": "#16284A",
      "card-foreground": "#EEF2FA",
      "popover": "#16284A",
      "popover-foreground": "#EEF2FA",
      "primary": "#EEF2FA",
      "primary-foreground": "#111111",
      "secondary": "#f4f4f5",
      "secondary-foreground": "#111111",
      "muted": "#94A6CC",
      "muted-foreground": "#EEF2FA",
      "accent": "#F2B43C",
      "accent-foreground": "#ffffff",
      "destructive": "#F0654E",
      "border": "transparent",
      "input": "transparent",
      "ring": "#F2B43C",
      "chart-1": "#EEF2FA",
      "chart-2": "#f4f4f5",
      "chart-3": "#F2B43C",
      "chart-4": "#5FCB8E",
      "chart-5": "#F2B43C",
      "sidebar": "#16284A",
      "sidebar-foreground": "#EEF2FA",
      "sidebar-primary": "#EEF2FA",
      "sidebar-primary-foreground": "#111111",
      "sidebar-accent": "#3FB8C4",
      "sidebar-accent-foreground": "#ffffff",
      "sidebar-border": "transparent",
      "sidebar-ring": "#F2B43C",
      "radius": "16px"
    },
    "dark": {
      "background": "#0f1115",
      "foreground": "#f8fafc",
      "card": "#181b22",
      "card-foreground": "#f8fafc",
      "popover": "#181b22",
      "popover-foreground": "#f8fafc",
      "primary": "#EEF2FA",
      "primary-foreground": "#111111",
      "secondary": "#252a33",
      "secondary-foreground": "#f8fafc",
      "muted": "#252a33",
      "muted-foreground": "#a1a1aa",
      "accent": "#F2B43C",
      "accent-foreground": "#ffffff",
      "destructive": "#F0654E",
      "border": "#303642",
      "input": "#303642",
      "ring": "#F2B43C",
      "chart-1": "#EEF2FA",
      "chart-2": "#f4f4f5",
      "chart-3": "#F2B43C",
      "chart-4": "#5FCB8E",
      "chart-5": "#F2B43C",
      "sidebar": "#181b22",
      "sidebar-foreground": "#f8fafc",
      "sidebar-primary": "#EEF2FA",
      "sidebar-primary-foreground": "#111111",
      "sidebar-accent": "#F2B43C",
      "sidebar-accent-foreground": "#ffffff",
      "sidebar-border": "#303642",
      "sidebar-ring": "#F2B43C",
      "radius": "16px"
    }
  },
  "meta": {
    "source": "katagami",
    "languageId": "en-019efa18-ef0f-7481-ad4a-bac4ce211f44",
    "slug": "splice",
    "componentManifest": [
      "button",
      "card",
      "input",
      "textarea",
      "select",
      "dialog",
      "sheet",
      "tabs",
      "badge",
      "separator",
      "checkbox",
      "switch",
      "slider",
      "tooltip",
      "dropdown-menu",
      "table"
    ],
    "installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
    "nativeTokenNames": {
      "colors": [
        "accent",
        "amber",
        "bg",
        "bg_deep",
        "border",
        "coral",
        "cream",
        "error",
        "glow",
        "info",
        "muted",
        "on_accent",
        "success",
        "surface",
        "surface_2",
        "teal",
        "text",
        "warning"
      ],
      "typography": [
        "base_size",
        "body_font",
        "google_fonts_url",
        "heading_font",
        "heading_transform",
        "heading_weight",
        "letter_spacing",
        "mono_font"
      ],
      "radii": [
        "default",
        "frame",
        "full",
        "none",
        "pill"
      ],
      "shadows": [
        "glow_cell",
        "lg",
        "md",
        "sm"
      ],
      "spacing": [
        "base",
        "scale"
      ],
      "surfaces": [
        "bg_pattern",
        "card_style",
        "treatment"
      ],
      "borders": [
        "character",
        "default_width",
        "style"
      ],
      "motion": [
        "duration",
        "easing",
        "easing_tape",
        "philosophy"
      ]
    }
  }
}
```
