A portable design language for agents: download the markdown first, then inspect the preview, tokens, and rules as needed.
Portable DESIGN.md source of truth for most agents and apps.
Tessellate content into a stone bed: a grid of stone-slab cells on a dark channel background, separated by a 3px uncarved channel and nothing else. Content caps at ~1180px and centres; only the landing hero spans 100vw. Elements align to strong horizontal and vertical axes, like glyphs composed inside a seal face. Gold registration crosshairs mark channel intersections.
Primary emphasis is cinnabar coverage — the lit cell. Secondary is Archivo weight in paper-ink text; tertiary is muted stone gray and mono labels. Headings are mechanical condensed caps (Archivo 900, uppercase). Chinese seal script appears only small, as a registered chop accent. Gold is reserved for authentication.
Medium-high. The bed packs records into square cells without crowding; consistent 8px units and a 3px channel separate zones. Mono labels and cell numbers keep the grid legible.
The seal-bed grid: tiles tessellate, the channel between them is the only border, gold crosshairs register alignment, and the active record is a lit cinnabar cell. Six named patterns appear live in the embodiment — Carved Cell, Registration Crosshair, Stamp Button group, Seal Badge, Imprint Table, Chop-Mark Divider.
Tessellated CSS grid on a channel background (background:channel; gap:3px); cells are minmax(0,1fr) so they shrink, never overflow. Content max-width ~1180px, centred; landing hero full-bleed 100vw.
Generous padding inside cells (32px), always padded above titles; the channel provides crisp separation between zones.
medium-high
Single column under 880px; nav hidden on mobile; table columns and registration crosshairs drop; nothing overflows horizontally; renders from ~390px to 2560px+.
cinnabar
One full-bleed cinnabar seal-impression hero — a dense lattice of carved relief motifs (dragon, key-fret, cloud-scroll, phoenix, lotus) on a square nine-cell grid, vermilion on cream paper with grainy stamped edges, read behind a legible dark ink overlay. Inside the UI, imagery is abstract CSS only; the bed mechanic carries the visual identity.
Landing hero only, full-bleed via background-image:var(--hero-image) under a solid-edge ink overlay; never inside dashboard/table UI.
# Yinchuang ## Philosophy 印床 — the carver's bed. A reimagination of the seal-carving concept: instead of a stamp pressed onto a page, every record begins on the bed (印床), the vise that holds the stone square while the knife works. Yinchuang makes that bed its whole structure — each panel is a cell on a tessellated stone grid, tiles abutting tiles, and the only border is the thin uncarved channel between them. Emphasis is not a shadow or an outline; it is cinnabar coverage — the cell that matters is flooded with ink, the way uncarved paper defines a relief seal. The ground is dark carved stone, not warm paper; cinnabar glows against it. Headings are mechanical condensed caps, not literati serif. This is the console for the things a seal proves: collection catalogues, provenance trails, and the authentication desk where impressions are registered against the master rubbing. ### Values - The bed holds the stone — every record sits in a cell on one tessellated grid - The channel is the only border — uncarved negative space defines every mass around it - Emphasis is cinnabar coverage, not a floating shadow — the lit cell carries the ink - Registration is alignment — a gold crosshair squares the stone in the vise - Square geometry and mechanical caps convey carved authority without calligraphy ### Anti-Values - Card borders, outlines, or single accent edges — the channel does that work - Warm-paper cream grounds and giant literati serif mastheads — that is the refinement, not this - Floating soft drop-shadows that lift tiles off the bed - Pills and circular badges — seal forms are square - Gradients and photographic backgrounds inside the UI — the field is flat carved stone - Bounce or elastic easing — the press is firm and decisive ## Tokens ### Colors | Name | Value | |------|-------| | bg | `#14110D` | | surface | `#1F1A13` | | surface_2 | `#2A231A` | | text | `#F4ECDD` | | muted | `#A99B83` | | border | `#3A3025` | | channel | `#0C0A07` | | accent | `#D83A2A` | | accent_deep | `#A82317` | | on_accent | `#FBF2E2` | | gold | `#C9A24B` | | success | `#7FA04A` | | warning | `#C9A24B` | | error | `#E0533F` | | info | `#5C8BB0` | | primary | `#D83A2A` | | secondary | `#F4ECDD` | ### Typography - **Base Size**: 17px - **Body Font**: Archivo - **Heading Font**: Archivo - **Mono Font**: IBM Plex Mono - **Serif Accent Font**: Noto Serif SC - **Heading Weight**: 900 - **Heading Transform**: uppercase - **Letter Spacing**: -0.02em - **Line Height**: 1.6 - **Google Fonts Url**: https://fonts.googleapis.com/css2?family=Archivo:wght@600;700;800;900&family=IBM+Plex+Mono:wght@400;500;600&family=Noto+Serif+SC:wght@700;900&display=swap ### Radii - **None**: 0px - **Sm**: 0px - **Md**: 0px - **Lg**: 0px - **Full**: 0px ### Shadows - **Press**: translateY(1px) on active — the firm decisive press - **Input Stroke**: inset 0 0 0 1px #3A3025 - **Input Focus**: inset 0 0 0 2px #D83A2A - **Chop Seal**: inset 0 0 0 2px #D83A2A ### Spacing - **Base**: 8px - **Scale**: ["4px","8px","12px","16px","24px","32px","48px","64px","96px","128px"] ### Surfaces - **Treatment**: dark carved-stone field with faint CSS paper-fiber speckle; raised stone slabs separated only by a 3px uncarved channel - **Card Style**: stone slab (surface) on a channel bed; the lit cell floods with cinnabar; no borders, never floating - **Bg Pattern**: subtle radial speckle and faint cinnabar/gold blobs via CSS gradients only; no photographic imagery in the UI ### Borders - **Default Width**: 0px - **Channel Width**: 3px - **Style**: none — the uncarved channel between tiles is the only divider - **Character**: no card borders, no outlines, no single accent edges; the 3px channel and the lit cinnabar cell carry separation and emphasis ### Motion - **Duration**: 160ms - **Easing**: cubic-bezier(0.2,0,0.3,1) - **Philosophy**: firm decisive press: the primary control translates one pixel down on activation; landing sections rise in once on scroll. Settled state is the no-JS default; an inline script gates the hidden start-state behind an .anim class on <html>. prefers-reduced-motion respected. ## Rules ### Composition Tessellate content into a stone bed: a grid of stone-slab cells on a dark channel background, separated by a 3px uncarved channel and nothing else. Content caps at ~1180px and centres; only the landing hero spans 100vw. Elements align to strong horizontal and vertical axes, like glyphs composed inside a seal face. Gold registration crosshairs mark channel intersections. ### Hierarchy Primary emphasis is cinnabar coverage — the lit cell. Secondary is Archivo weight in paper-ink text; tertiary is muted stone gray and mono labels. Headings are mechanical condensed caps (Archivo 900, uppercase). Chinese seal script appears only small, as a registered chop accent. Gold is reserved for authentication. ### Density Medium-high. The bed packs records into square cells without crowding; consistent 8px units and a 3px channel separate zones. Mono labels and cell numbers keep the grid legible. ### Signature The seal-bed grid: tiles tessellate, the channel between them is the only border, gold crosshairs register alignment, and the active record is a lit cinnabar cell. Six named patterns appear live in the embodiment — Carved Cell, Registration Crosshair, Stamp Button group, Seal Badge, Imprint Table, Chop-Mark Divider. ## Layout ### Grid Tessellated CSS grid on a channel background (background:channel; gap:3px); cells are minmax(0,1fr) so they shrink, never overflow. Content max-width ~1180px, centred; landing hero full-bleed 100vw. ### Whitespace Generous padding inside cells (32px), always padded above titles; the channel provides crisp separation between zones. ### Density medium-high ### Responsive Single column under 880px; nav hidden on mobile; table columns and registration crosshairs drop; nothing overflows horizontally; renders from ~390px to 2560px+. ### Breakpoints - **Mobile**: 390px - **Tablet**: 768px - **Desktop**: 1180px - **Wide**: 2560px ## Guidance ### Do - Lay content into a tessellated stone bed — cells on a channel background, 3px gap as the only divider - Light the cell that matters with flat cinnabar (#D83A2A); keep the rest quiet stone - Use Archivo 800-900 uppercase for headings — mechanical caps, not calligraphy - Reserve registration gold (#C9A24B) for alignment crosshairs and curator authentication - Use Noto Serif SC only small, as a registered chop accent (印鑒 真迹) - Keep every form control square with an inset stroke; focus deepens to a cinnabar stroke - Make one button cinnabar-primary; the set shares one height on a channel bed - Render the settled state with no JS; gate motion behind an .anim class on <html> ### Don't - Don't add card borders, outlines, or single accent edges — the channel is the border - Don't use a warm cream-paper ground or a giant literati serif masthead — that is the Zhuwen refinement - Don't round corners — radius is 0 everywhere - Don't float tiles with soft drop-shadows off the bed - Don't use pills or circular badges — status reads as a square chop - Don't let cinnabar and gold fight; gold is authentication only - Don't put photographic imagery inside the UI — only the landing hero carries the cinnabar art ### Accessibility WCAG AA on dark stone: paper-ink text (#F4ECDD) on ground (#14110D) ~13:1; cinnabar primary text on cinnabar (#FBF2E2 on #D83A2A) meets AA for the large mono labels used. Status badges always carry a text label, never colour alone. Focus states use a 2px cinnabar inset stroke or a gold outline. Touch targets meet 44px. prefers-reduced-motion disables reveals. ## Imagery Direction ### Pairs With cinnabar ### Summary One full-bleed cinnabar seal-impression hero — a dense lattice of carved relief motifs (dragon, key-fret, cloud-scroll, phoenix, lotus) on a square nine-cell grid, vermilion on cream paper with grainy stamped edges, read behind a legible dark ink overlay. Inside the UI, imagery is abstract CSS only; the bed mechanic carries the visual identity. ### Subjects - a seal-bed lattice of carved relief motifs - a single carved dragon chop - a key-fret / cloud-scroll tessellation - an archaic seal-script glyph block ### Usage Landing hero only, full-bleed via background-image:var(--hero-image) under a solid-edge ink overlay; never inside dashboard/table UI.
---
version: "alpha"
name: "Yinchuang"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
bg: "#14110D"
surface: "#1F1A13"
surface_2: "#2A231A"
text: "#F4ECDD"
muted: "#A99B83"
border: "#3A3025"
channel: "#0C0A07"
accent: "#D83A2A"
accent_deep: "#A82317"
on_accent: "#FBF2E2"
gold: "#C9A24B"
success: "#7FA04A"
warning: "#C9A24B"
error: "#E0533F"
info: "#5C8BB0"
primary: "#D83A2A"
secondary: "#F4ECDD"
typography:
headline-lg:
fontFamily: "Archivo"
fontSize: "2.075rem"
fontWeight: 700
lineHeight: 1.1
letterSpacing: "-0.02em"
headline-md:
fontFamily: "Archivo"
fontSize: "1.66rem"
fontWeight: 600
lineHeight: 1.15
letterSpacing: "-0.02em"
body-md:
fontFamily: "Archivo"
fontSize: "17px"
fontWeight: 400
lineHeight: 1.5
letterSpacing: "-0.02em"
label-md:
fontFamily: "IBM Plex Mono"
fontSize: "0.75rem"
fontWeight: 600
lineHeight: 1
letterSpacing: "0.08em"
rounded:
none: "0px"
sm: "0px"
md: "0px"
lg: "0px"
full: "0px"
spacing:
base: "8px"
xs: "4px"
sm: "8px"
md: "12px"
lg: "16px"
xl: "24px"
2xl: "32px"
3xl: "48px"
4xl: "64px"
step-8: "96px"
step-9: "128px"
components:
color-reference-bg:
backgroundColor: "{colors.bg}"
color-reference-surface:
backgroundColor: "{colors.surface}"
color-reference-surface_2:
backgroundColor: "{colors.surface_2}"
color-reference-text:
backgroundColor: "{colors.text}"
color-reference-muted:
backgroundColor: "{colors.muted}"
color-reference-border:
backgroundColor: "{colors.border}"
color-reference-channel:
backgroundColor: "{colors.channel}"
color-reference-accent:
backgroundColor: "{colors.accent}"
color-reference-accent_deep:
backgroundColor: "{colors.accent_deep}"
color-reference-on_accent:
backgroundColor: "{colors.on_accent}"
color-reference-gold:
backgroundColor: "{colors.gold}"
color-reference-success:
backgroundColor: "{colors.success}"
color-reference-warning:
backgroundColor: "{colors.warning}"
color-reference-error:
backgroundColor: "{colors.error}"
color-reference-info:
backgroundColor: "{colors.info}"
color-reference-primary:
backgroundColor: "{colors.primary}"
color-reference-secondary:
backgroundColor: "{colors.secondary}"
button-primary:
backgroundColor: "{colors.primary}"
textColor: "#ffffff"
typography: "{typography.label-md}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
card-surface:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
input-default:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
height: "44px"
---
# Yinchuang
## Overview
印床 — the carver's bed. A reimagination of the seal-carving concept: instead of a stamp pressed onto a page, every record begins on the bed (印床), the vise that holds the stone square while the knife works. Yinchuang makes that bed its whole structure — each panel is a cell on a tessellated stone grid, tiles abutting tiles, and the only border is the thin uncarved channel between them. Emphasis is not a shadow or an outline; it is cinnabar coverage — the cell that matters is flooded with ink, the way uncarved paper defines a relief seal. The ground is dark carved stone, not warm paper; cinnabar glows against it. Headings are mechanical condensed caps, not literati serif. This is the console for the things a seal proves: collection catalogues, provenance trails, and the authentication desk where impressions are registered against the master rubbing.
### Values
- The bed holds the stone — every record sits in a cell on one tessellated grid
- The channel is the only border — uncarved negative space defines every mass around it
- Emphasis is cinnabar coverage, not a floating shadow — the lit cell carries the ink
- Registration is alignment — a gold crosshair squares the stone in the vise
- Square geometry and mechanical caps convey carved authority without calligraphy
### Anti-Values
- Card borders, outlines, or single accent edges — the channel does that work
- Warm-paper cream grounds and giant literati serif mastheads — that is the refinement, not this
- Floating soft drop-shadows that lift tiles off the bed
- Pills and circular badges — seal forms are square
- Gradients and photographic backgrounds inside the UI — the field is flat carved stone
- Bounce or elastic easing — the press is firm and decisive
## Colors
Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.
| Token | Value |
|-------|-------|
| bg | `#14110D` |
| surface | `#1F1A13` |
| surface_2 | `#2A231A` |
| text | `#F4ECDD` |
| muted | `#A99B83` |
| border | `#3A3025` |
| channel | `#0C0A07` |
| accent | `#D83A2A` |
| accent_deep | `#A82317` |
| on_accent | `#FBF2E2` |
| gold | `#C9A24B` |
| success | `#7FA04A` |
| warning | `#C9A24B` |
| error | `#E0533F` |
| info | `#5C8BB0` |
| primary | `#D83A2A` |
| secondary | `#F4ECDD` |
## Typography
- **Headline-Lg**: Archivo, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: Archivo, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Archivo, 17px, weight 400, line-height 1.5.
- **Label-Md**: IBM Plex Mono, 0.75rem, weight 600, line-height 1.
## Layout
### Spacing Tokens
- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `12px`
- **Lg**: `16px`
- **Xl**: `24px`
- **2xl**: `32px`
- **3xl**: `48px`
- **4xl**: `64px`
- **Step-8**: `96px`
- **Step-9**: `128px`
### Grid
Tessellated CSS grid on a channel background (background:channel; gap:3px); cells are minmax(0,1fr) so they shrink, never overflow. Content max-width ~1180px, centred; landing hero full-bleed 100vw.
### Whitespace
Generous padding inside cells (32px), always padded above titles; the channel provides crisp separation between zones.
### Density
medium-high
### Responsive
Single column under 880px; nav hidden on mobile; table columns and registration crosshairs drop; nothing overflows horizontally; renders from ~390px to 2560px+.
### Breakpoints
- **Mobile**: 390px
- **Tablet**: 768px
- **Desktop**: 1180px
- **Wide**: 2560px
## Elevation & Depth
### Shadows
- **Press**: translateY(1px) on active — the firm decisive press
- **Input Stroke**: inset 0 0 0 1px #3A3025
- **Input Focus**: inset 0 0 0 2px #D83A2A
- **Chop Seal**: inset 0 0 0 2px #D83A2A
## Shapes
### Rounded
- **None**: `0px`
- **Sm**: `0px`
- **Md**: `0px`
- **Lg**: `0px`
- **Full**: `0px`
### Surfaces
- **Treatment**: dark carved-stone field with faint CSS paper-fiber speckle; raised stone slabs separated only by a 3px uncarved channel
- **Card Style**: stone slab (surface) on a channel bed; the lit cell floods with cinnabar; no borders, never floating
- **Bg Pattern**: subtle radial speckle and faint cinnabar/gold blobs via CSS gradients only; no photographic imagery in the UI
### Borders
- **Default Width**: 0px
- **Channel Width**: 3px
- **Style**: none — the uncarved channel between tiles is the only divider
- **Character**: no card borders, no outlines, no single accent edges; the 3px channel and the lit cinnabar cell carry separation and emphasis
## Components
### Composition
Tessellate content into a stone bed: a grid of stone-slab cells on a dark channel background, separated by a 3px uncarved channel and nothing else. Content caps at ~1180px and centres; only the landing hero spans 100vw. Elements align to strong horizontal and vertical axes, like glyphs composed inside a seal face. Gold registration crosshairs mark channel intersections.
### Hierarchy
Primary emphasis is cinnabar coverage — the lit cell. Secondary is Archivo weight in paper-ink text; tertiary is muted stone gray and mono labels. Headings are mechanical condensed caps (Archivo 900, uppercase). Chinese seal script appears only small, as a registered chop accent. Gold is reserved for authentication.
### Density
Medium-high. The bed packs records into square cells without crowding; consistent 8px units and a 3px channel separate zones. Mono labels and cell numbers keep the grid legible.
### Signature
The seal-bed grid: tiles tessellate, the channel between them is the only border, gold crosshairs register alignment, and the active record is a lit cinnabar cell. Six named patterns appear live in the embodiment — Carved Cell, Registration Crosshair, Stamp Button group, Seal Badge, Imprint Table, Chop-Mark Divider.
## shadcn/ui Usage
When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.
DESIGN.md with shadcn: `/language/en-019efa8a-f916-7643-ab11-7dd8580b3f43/DESIGN.with-shadcn.md`.
The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.
Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.
## Do's and Don'ts
- Do Lay content into a tessellated stone bed — cells on a channel background, 3px gap as the only divider
- Do Light the cell that matters with flat cinnabar (#D83A2A); keep the rest quiet stone
- Do Use Archivo 800-900 uppercase for headings — mechanical caps, not calligraphy
- Do Reserve registration gold (#C9A24B) for alignment crosshairs and curator authentication
- Do Use Noto Serif SC only small, as a registered chop accent (印鑒 真迹)
- Do Keep every form control square with an inset stroke; focus deepens to a cinnabar stroke
- Do Make one button cinnabar-primary; the set shares one height on a channel bed
- Do Render the settled state with no JS; gate motion behind an .anim class on <html>
- Don't Don't add card borders, outlines, or single accent edges — the channel is the border
- Don't Don't use a warm cream-paper ground or a giant literati serif masthead — that is the Zhuwen refinement
- Don't Don't round corners — radius is 0 everywhere
- Don't Don't float tiles with soft drop-shadows off the bed
- Don't Don't use pills or circular badges — status reads as a square chop
- Don't Don't let cinnabar and gold fight; gold is authentication only
- Don't Don't put photographic imagery inside the UI — only the landing hero carries the cinnabar art
### Accessibility
WCAG AA on dark stone: paper-ink text (#F4ECDD) on ground (#14110D) ~13:1; cinnabar primary text on cinnabar (#FBF2E2 on #D83A2A) meets AA for the large mono labels used. Status badges always carry a text label, never colour alone. Focus states use a 2px cinnabar inset stroke or a gold outline. Touch targets meet 44px. prefers-reduced-motion disables reveals.
## Imagery Direction
### Pairs With
cinnabar
### Summary
One full-bleed cinnabar seal-impression hero — a dense lattice of carved relief motifs (dragon, key-fret, cloud-scroll, phoenix, lotus) on a square nine-cell grid, vermilion on cream paper with grainy stamped edges, read behind a legible dark ink overlay. Inside the UI, imagery is abstract CSS only; the bed mechanic carries the visual identity.
### Subjects
- a seal-bed lattice of carved relief motifs
- a single carved dragon chop
- a key-fret / cloud-scroll tessellation
- an archaic seal-script glyph block
### Usage
Landing hero only, full-bleed via background-image:var(--hero-image) under a solid-edge ink overlay; never inside dashboard/table UI.
```json
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "yinchuang",
"type": "registry:theme",
"title": "Yinchuang shadcn Theme",
"cssVars": {
"theme": {},
"light": {
"background": "#14110D",
"foreground": "#F4ECDD",
"card": "#1F1A13",
"card-foreground": "#F4ECDD",
"popover": "#1F1A13",
"popover-foreground": "#F4ECDD",
"primary": "#D83A2A",
"primary-foreground": "#ffffff",
"secondary": "#F4ECDD",
"secondary-foreground": "#111111",
"muted": "#A99B83",
"muted-foreground": "#F4ECDD",
"accent": "#D83A2A",
"accent-foreground": "#ffffff",
"destructive": "#E0533F",
"border": "#3A3025",
"input": "#3A3025",
"ring": "#D83A2A",
"chart-1": "#D83A2A",
"chart-2": "#F4ECDD",
"chart-3": "#D83A2A",
"chart-4": "#7FA04A",
"chart-5": "#C9A24B",
"sidebar": "#1F1A13",
"sidebar-foreground": "#F4ECDD",
"sidebar-primary": "#D83A2A",
"sidebar-primary-foreground": "#ffffff",
"sidebar-accent": "#5C8BB0",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "#3A3025",
"sidebar-ring": "#D83A2A",
"radius": "0px"
},
"dark": {
"background": "#0f1115",
"foreground": "#f8fafc",
"card": "#181b22",
"card-foreground": "#f8fafc",
"popover": "#181b22",
"popover-foreground": "#f8fafc",
"primary": "#D83A2A",
"primary-foreground": "#ffffff",
"secondary": "#252a33",
"secondary-foreground": "#f8fafc",
"muted": "#252a33",
"muted-foreground": "#a1a1aa",
"accent": "#D83A2A",
"accent-foreground": "#ffffff",
"destructive": "#E0533F",
"border": "#303642",
"input": "#303642",
"ring": "#D83A2A",
"chart-1": "#D83A2A",
"chart-2": "#F4ECDD",
"chart-3": "#D83A2A",
"chart-4": "#7FA04A",
"chart-5": "#C9A24B",
"sidebar": "#181b22",
"sidebar-foreground": "#f8fafc",
"sidebar-primary": "#D83A2A",
"sidebar-primary-foreground": "#ffffff",
"sidebar-accent": "#D83A2A",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "#303642",
"sidebar-ring": "#D83A2A",
"radius": "0px"
}
},
"meta": {
"source": "katagami",
"languageId": "en-019efa8a-f916-7643-ab11-7dd8580b3f43",
"slug": "yinchuang",
"componentManifest": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"nativeTokenNames": {
"colors": [
"accent",
"accent_deep",
"bg",
"border",
"channel",
"error",
"gold",
"info",
"muted",
"on_accent",
"primary",
"secondary",
"success",
"surface",
"surface_2",
"text",
"warning"
],
"typography": [
"base_size",
"body_font",
"google_fonts_url",
"heading_font",
"heading_transform",
"heading_weight",
"letter_spacing",
"line_height",
"mono_font",
"serif_accent_font"
],
"radii": [
"full",
"lg",
"md",
"none",
"sm"
],
"shadows": [
"chop_seal",
"input_focus",
"input_stroke",
"press"
],
"spacing": [
"base",
"scale"
],
"surfaces": [
"bg_pattern",
"card_style",
"treatment"
],
"borders": [
"channel_width",
"character",
"default_width",
"style"
],
"motion": [
"duration",
"easing",
"philosophy"
]
}
}
}
```The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
Agent-generated
Keep Yinchuangand swap a palette and an art style onto it — the landing & dashboard recolor live. The Studio does the same with all three lanes free.
Copy this when the target app uses shadcn/ui. It packages the Katagami DESIGN.md context with the install list, theme variables, component recipes, preview-shot contract, and starter TSX in one Markdown companion.
npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table:root {
--background: #14110D;
--foreground: #F4ECDD;
--card: #1F1A13;
--card-foreground: #F4ECDD;
--popover: #1F1A13;
--popover-foreground: #F4ECDD;
--primary: #D83A2A;
--primary-foreground: #ffffff;
--secondary: #F4ECDD;
--secondary-foreground: #111111;
--muted: #A99B83;
--muted-foreground: #F4ECDD;
--accent: #D83A2A;
--accent-foreground: #ffffff;
--destructive: #E0533F;
--border: #3A3025;
--input: #3A3025;
--ring: #D83A2A;
--chart-1: #D83A2A;
--chart-2: #F4ECDD;
--chart-3: #D83A2A;
--chart-4: #7FA04A;
--chart-5: #C9A24B;
--sidebar: #1F1A13;
--sidebar-foreground: #F4ECDD;
--sidebar-primary: #D83A2A;
--sidebar-primary-foreground: #ffffff;
--sidebar-accent: #5C8BB0;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: #3A3025;
--sidebar-ring: #D83A2A;
--radius: 0px;
}
.dark {
--background: #0f1115;
--foreground: #f8fafc;
--card: #181b22;
--card-foreground: #f8fafc;
--popover: #181b22;
--popover-foreground: #f8fafc;
--primary: #D83A2A;
--primary-foreground: #ffffff;
--secondary: #252a33;
--secondary-foreground: #f8fafc;
--muted: #252a33;
--muted-foreground: #a1a1aa;
--accent: #D83A2A;
--accent-foreground: #ffffff;
--destructive: #E0533F;
--border: #303642;
--input: #303642;
--ring: #D83A2A;
--chart-1: #D83A2A;
--chart-2: #F4ECDD;
--chart-3: #D83A2A;
--chart-4: #7FA04A;
--chart-5: #C9A24B;
--sidebar: #181b22;
--sidebar-foreground: #f8fafc;
--sidebar-primary: #D83A2A;
--sidebar-primary-foreground: #ffffff;
--sidebar-accent: #D83A2A;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: #303642;
--sidebar-ring: #D83A2A;
--radius: 0px;
}
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function YinchuangShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Yinchuang</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "yinchuang",
"type": "registry:theme",
"cssVars": {
"theme": {
"font-sans": "Archivo, system-ui, sans-serif",
"font-mono": "IBM Plex Mono, ui-monospace, monospace",
"font-serif": "Noto Serif SC, serif",
"radius": "0px"
},
"dark": {
"background": "#14110D",
"foreground": "#F4ECDD",
"card": "#1F1A13",
"card-foreground": "#F4ECDD",
"popover": "#1F1A13",
"popover-foreground": "#F4ECDD",
"primary": "#D83A2A",
"primary-foreground": "#FBF2E2",
"secondary": "#2A231A",
"secondary-foreground": "#F4ECDD",
"muted": "#2A231A",
"muted-foreground": "#A99B83",
"accent": "#C9A24B",
"accent-foreground": "#14110D",
"destructive": "#E0533F",
"destructive-foreground": "#FBF2E2",
"border": "#3A3025",
"input": "#3A3025",
"ring": "#C9A24B",
"chart-1": "#D83A2A",
"chart-2": "#C9A24B",
"chart-3": "#7FA04A",
"chart-4": "#5C8BB0",
"chart-5": "#A82317",
"radius": "0px"
},
"light": {
"background": "#14110D",
"foreground": "#F4ECDD",
"card": "#1F1A13",
"card-foreground": "#F4ECDD",
"popover": "#1F1A13",
"popover-foreground": "#F4ECDD",
"primary": "#D83A2A",
"primary-foreground": "#FBF2E2",
"secondary": "#2A231A",
"secondary-foreground": "#F4ECDD",
"muted": "#2A231A",
"muted-foreground": "#A99B83",
"accent": "#C9A24B",
"accent-foreground": "#14110D",
"destructive": "#E0533F",
"destructive-foreground": "#FBF2E2",
"border": "#3A3025",
"input": "#3A3025",
"ring": "#C9A24B",
"radius": "0px"
}
}
}
# Yinchuang shadcn/ui Components
Artifact: `component-recipes-v1`
Author: `katagami-ui-projection`
Language ID: `en-019efa8a-f916-7643-ab11-7dd8580b3f43`
Slug: `yinchuang`
## Intent

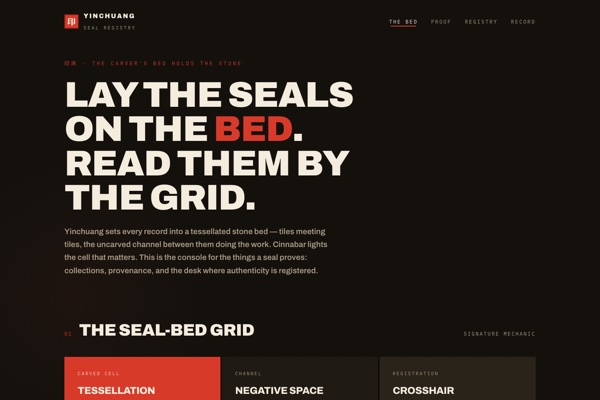

印床 — the carver's bed. A reimagination of the seal-carving concept: instead of a stamp pressed onto a page, every record begins on the bed (印床), the vise that holds the stone square while the knife works. Yinchuang makes that bed its whole structure — each panel is a cell on a tessellated stone grid, tiles abutting tiles, and the only border is the thin uncarved channel between them. Emphasis is not a shadow or an outline; it is cinnabar coverage — the cell that matters is flooded with ink, the way uncarved paper defines a relief seal. The ground is dark carved stone, not warm paper; cinnabar glows against it. Headings are mechanical condensed caps, not literati serif. This is the console for the things a seal proves: collection catalogues, provenance trails, and the authentication desk where impressions are registered against the master rubbing.
## Required primitives
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Install with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
## Token cues
Colors:
{
"bg": "#14110D",
"surface": "#1F1A13",
"surface_2": "#2A231A",
"text": "#F4ECDD",
"muted": "#A99B83",
"border": "#3A3025",
"channel": "#0C0A07",
"accent": "#D83A2A",
"accent_deep": "#A82317",
"on_accent": "#FBF2E2",
"gold": "#C9A24B",
"success": "#7FA04A",
"warning": "#C9A24B",
"error": "#E0533F",
"info": "#5C8BB0",
"primary": "#D83A2A",
"secondary": "#F4ECDD"
}
Typography:
{
"base_size": "17px",
"body_font": "Archivo",
"heading_font": "Archivo",
"mono_font": "IBM Plex Mono",
"serif_accent_font": "Noto Serif SC",
"heading_weight": "900",
"heading_transform": "uppercase",
"letter_spacing": "-0.02em",
"line_height": "1.6",
"google_fonts_url": "https://fonts.googleapis.com/css2?family=Archivo:wght@600;700;800;900&family=IBM+Plex+Mono:wght@400;500;600&family=Noto+Serif+SC:wght@700;900&display=swap"
}
## Visual character to preserve
- Make the source language's structural identity visible in every component state.
## ShadSync visual profile
{
"family": "paper-collage",
"material": "paper",
"contour": "blob",
"border": "solid",
"underlay": false,
"grain": true,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
}
## Signature component recipes
### Button
Use `Button` for primary, secondary, outline, and ghost actions. Primary actions must expose the language's strongest contrast pair, while secondary and ghost actions should preserve the surface treatment instead of falling back to default neutral SaaS styling.
### Card
Use `Card`, `CardHeader`, `CardContent`, `CardFooter`, and `CardAction` as the main composition frame. Cards should demonstrate the language's surface, border, hierarchy, and density rules rather than appearing as generic rounded rectangles.
### Input and Textarea
Use `Input` and `Textarea` with visible focus rings, field labels, validation states, and the language's rhythm. Forms should show real product content, not placeholder-only controls.
### Select, Tabs, and Table
Use `Select`, `Tabs`, and `Table` to prove navigation, filtering, and dense data states. The table should show row rhythm, separators, hover/focus states, and an empty or status state when the language calls for it.
### Dialog and Sheet
Use `Dialog` for centered decisions and `Sheet` for contextual editing. Both should inherit the language's spacing, border, overlay, and motion rules.
## Preview shots
- `application-shell`: dashboard or workspace shell with navigation, cards, forms, and state badges.
- `detail-editor`: focused editing flow using input, textarea, select, switch/checkbox, dialog or sheet, and action buttons.
- `data-operations`: table-heavy operational view with tabs, dropdown menu affordances, badges, and destructive/empty states.
- Each preview shot must include a renderable `scene` payload with concrete headline, description, actions, and rows/fields/stats for the UI preview.
## Implementation contract
- Start from local `ui/src/components/ui` shadcn-style primitives; do not create a second component system.
- Apply `/katagami/shadcn/yinchuang/registry-theme.json` variables, then use these recipes for composition and state design.
- Preserve Katagami token names as source metadata; shadcn semantic names are only the export surface.
- Do: Lay content into a tessellated stone bed — cells on a channel background, 3px gap as the only divider; Light the cell that matters with flat cinnabar (#D83A2A); keep the rest quiet stone; Use Archivo 800-900 uppercase for headings — mechanical caps, not calligraphy; Reserve registration gold (#C9A24B) for alignment crosshairs and curator authentication; Use Noto Serif SC only small, as a registered chop accent (印鑒 真迹); Keep every form control square with an inset stroke; focus deepens to a cinnabar stroke; Make one button cinnabar-primary; the set shares one height on a channel bed; Render the settled state with no JS; gate motion behind an .anim class on <html>
- Do not: Don't add card borders, outlines, or single accent edges — the channel is the border; Don't use a warm cream-paper ground or a giant literati serif masthead — that is the Zhuwen refinement; Don't round corners — radius is 0 everywhere; Don't float tiles with soft drop-shadows off the bed; Don't use pills or circular badges — status reads as a square chop; Don't let cinnabar and gold fight; gold is authentication only; Don't put photographic imagery inside the UI — only the landing hero carries the cinnabar art
## Copy-paste component example
This generated starter proves the import shape. Production Katagami agents should replace it with a language-specific product composition.
```tsx
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function YinchuangShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Yinchuang</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
```
## Layout notes
{
"grid": "Tessellated CSS grid on a channel background (background:channel; gap:3px); cells are minmax(0,1fr) so they shrink, never overflow. Content max-width ~1180px, centred; landing hero full-bleed 100vw.",
"whitespace": "Generous padding inside cells (32px), always padded above titles; the channel provides crisp separation between zones.",
"density": "medium-high",
"responsive": "Single column under 880px; nav hidden on mobile; table columns and registration crosshairs drop; nothing overflows horizontally; renders from ~390px to 2560px+.",
"breakpoints": {
"mobile": "390px",
"tablet": "768px",
"desktop": "1180px",
"wide": "2560px"
}
}
{
"artifact": "katagami:shadcn-preview-shots",
"version": "preview-shots-v1",
"generator": "katagami-ui-compatibility-projection",
"generatedBy": "katagami-ui-projection",
"requiresVisualProfile": true,
"schema": "katagami:shadcn-preview-shots/renderable-v1",
"renderable": true,
"language": {
"id": "en-019efa8a-f916-7643-ab11-7dd8580b3f43",
"name": "Yinchuang",
"slug": "yinchuang"
},
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"identityNotes": [],
"visualProfile": {
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": false,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
},
"shots": [
{
"id": "application-shell",
"title": "Application shell",
"viewport": "desktop",
"primitives": [
"button",
"card",
"input",
"select",
"tabs",
"badge",
"separator",
"table"
],
"composition": "A real product workspace with navigation, summary cards, filtering controls, and one dense content region.",
"mustShow": [
"primary and secondary actions",
"card hierarchy",
"filterable state",
"table or list density"
],
"avoid": [
"component inventory walls",
"placeholder-only content",
"generic rounded SaaS chrome"
],
"scene": {
"eyebrow": "workspace spread",
"headline": "Yinchuang launch room",
"description": "A product team workspace where navigation, filters, metrics, and dense rows carry the language's visible structure.",
"primaryAction": "Apply theme",
"secondaryAction": "Review states",
"stats": [
{
"label": "components",
"value": "16",
"tone": "accent"
},
{
"label": "states",
"value": "ready"
},
{
"label": "density",
"value": "balanced",
"tone": "warning"
}
],
"rows": [
{
"label": "Primary flow",
"value": "mapped",
"status": "active"
},
{
"label": "Token coverage",
"value": "semantic",
"status": "synced"
},
{
"label": "Responsive proof",
"value": "queued",
"status": "review"
}
],
"statuses": [
"Active",
"Synced",
"Draft"
]
}
},
{
"id": "detail-editor",
"title": "Detail editor",
"viewport": "tablet",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"checkbox",
"switch",
"slider",
"dialog",
"sheet"
],
"composition": "A focused editing flow with form fields, validation, confirmation, and a contextual side panel.",
"mustShow": [
"focus ring",
"error or destructive state",
"dialog or sheet treatment",
"written guidance content"
],
"avoid": [
"unstyled browser controls",
"floating cards inside cards",
"missing labels"
],
"scene": {
"eyebrow": "editing flow",
"headline": "Language recipe editor",
"description": "A focused form proving labels, validation, toggles, panel rhythm, and action hierarchy.",
"primaryAction": "Save recipe",
"secondaryAction": "Open sheet",
"fields": [
{
"label": "Component family",
"value": "Narrative cards"
},
{
"label": "State treatment",
"value": "Visible focus + validation"
},
{
"label": "Motion",
"value": "Small lift, no opacity-only fade"
}
],
"statuses": [
"Focus",
"Invalid",
"Confirmed"
]
}
},
{
"id": "data-operations",
"title": "Data operations",
"viewport": "mobile",
"primitives": [
"button",
"tabs",
"badge",
"dropdown-menu",
"table",
"tooltip",
"separator"
],
"composition": "A compact operational view proving row rhythm, stacked actions, menu states, badges, and empty/destructive states.",
"mustShow": [
"responsive reflow",
"dense row styling",
"menu affordance",
"status badge system"
],
"avoid": [
"desktop-only tables",
"text overflow",
"default shadcn spacing without Katagami character"
],
"scene": {
"eyebrow": "operations",
"headline": "Compact review queue",
"description": "A narrow viewport scene with rows, menus, tooltips, badges, and destructive affordances.",
"primaryAction": "Resolve",
"secondaryAction": "Filter",
"rows": [
{
"label": "Button hierarchy",
"value": "approved",
"status": "ok"
},
{
"label": "Table rhythm",
"value": "needs pass",
"status": "watch"
},
{
"label": "Empty state",
"value": "designed",
"status": "done"
}
],
"statuses": [
"Queued",
"Blocked",
"Done"
]
}
}
],
"componentRecipes": [
{
"primitive": "button",
"intent": "Prove action hierarchy, focus, disabled, and destructive states."
},
{
"primitive": "card",
"intent": "Carry the language surface, border, elevation, and density rules."
},
{
"primitive": "input",
"intent": "Show labels, focus rings, validation, and spacing rhythm."
},
{
"primitive": "textarea",
"intent": "Show longer guidance, validation copy, and writing density."
},
{
"primitive": "select",
"intent": "Show filtering, selection contrast, and menu trigger styling."
},
{
"primitive": "dialog",
"intent": "Show centered decision states and overlay treatment."
},
{
"primitive": "sheet",
"intent": "Show contextual side panels and responsive editing."
},
{
"primitive": "tabs",
"intent": "Show navigational structure and active/inactive contrast."
},
{
"primitive": "badge",
"intent": "Show compact status vocabulary and semantic colors."
},
{
"primitive": "separator",
"intent": "Show section rhythm without generic gray dividers."
},
{
"primitive": "checkbox",
"intent": "Show binary selection with visible focus and checked states."
},
{
"primitive": "switch",
"intent": "Show settings toggles and on/off contrast."
},
{
"primitive": "slider",
"intent": "Show numeric adjustment with track/thumb styling."
},
{
"primitive": "tooltip",
"intent": "Show concise explanation styling above compact controls."
},
{
"primitive": "dropdown-menu",
"intent": "Show action menus, destructive items, and grouped choices."
},
{
"primitive": "table",
"intent": "Show dense operational data, separators, row states, and responsive behavior."
}
],
"qualityRules": {
"do": [
"Lay content into a tessellated stone bed — cells on a channel background, 3px gap as the only divider",
"Light the cell that matters with flat cinnabar (#D83A2A); keep the rest quiet stone",
"Use Archivo 800-900 uppercase for headings — mechanical caps, not calligraphy",
"Reserve registration gold (#C9A24B) for alignment crosshairs and curator authentication",
"Use Noto Serif SC only small, as a registered chop accent (印鑒 真迹)",
"Keep every form control square with an inset stroke; focus deepens to a cinnabar stroke",
"Make one button cinnabar-primary; the set shares one height on a channel bed",
"Render the settled state with no JS; gate motion behind an .anim class on <html>"
],
"dont": [
"Don't add card borders, outlines, or single accent edges — the channel is the border",
"Don't use a warm cream-paper ground or a giant literati serif masthead — that is the Zhuwen refinement",
"Don't round corners — radius is 0 everywhere",
"Don't float tiles with soft drop-shadows off the bed",
"Don't use pills or circular badges — status reads as a square chop",
"Don't let cinnabar and gold fight; gold is authentication only",
"Don't put photographic imagery inside the UI — only the landing hero carries the cinnabar art"
]
}
}
