A portable design language for agents: download the markdown first, then inspect the preview, tokens, and rules as needed.
Portable DESIGN.md source of truth for most agents and apps.
Moderate: one dense console per viewport balanced by 64px to 128px empty intervals.
moderate, with a dense console beside broad empty paper intervals
shuimo-ink-wash
Chinese ink-wash (shuimo/sumi-e): wet sumi bleeding into absorbent warm rice paper, feathered diffused edges, diluted grey tonal gradients from deep black to nothing, vast liubai negative space, a single small vermillion seal.
NO text, NO letters, NO logos

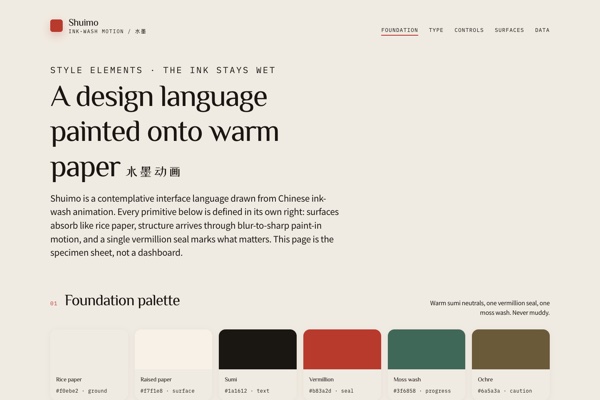

# Shuimo
## Philosophy
A contemplative interface language for living ink on warm paper: content appears as if painted into existence, structure breathes with soft diffusion, and sparse vermillion marks punctuate otherwise restrained sumi surfaces. The faithfully modernized descendant of Ink Wash Motion — identity kept, execution corrected to current standards (no borders, 17px body, style-element-led embodiment, full artifact set).
### Values
- living stillness
- liubai negative space
- warm paper tactility
- diluted sumi hierarchy
- sparse vermillion emphasis
- slow organic motion
- visible imperfection
### Anti-Values
- synthetic SaaS chrome
- borders and grey divider systems
- fast abrupt animation
- pure white sterile backgrounds
- dense equal-card grids
- rainbow accent palettes
### Visual Character
- Warm rice-paper foundations use #f0ebe2 and fibrous noise overlays so every panel feels absorbent rather than glassy or plastic.
- Diluted sumi hierarchy uses near-black text, low-opacity ink washes and soft radial blooms instead of hard grey divider systems.
- Sparse vermillion marks appear as small seal-like chips and focus states, never as broad saturated fills or decorative gradients.
- Slow paint-in motion combines opacity, blur removal and small translate transforms with cubic-bezier(0.23,1,0.32,1) timing.
- Asymmetric scroll composition leaves large liubai voids beside dense controls so emptiness becomes a structural element.
## Tokens
### Colors
| Name | Value |
|------|-------|
| bg | `#f0ebe2` |
| surface | `#f7f1e8` |
| surface_solid | `#f7f1e8` |
| text | `#1a1612` |
| muted | `#6b5f52` |
| border | `rgba(26,22,18,0.06)` |
| accent | `#b83a2d` |
| accent_2 | `#3f6858` |
| accent_soft | `#e8c8c2` |
| on_accent | `#f7f1e8` |
| success | `#3f6858` |
| warning | `#6a5a3a` |
| error | `#b83a2d` |
| info | `#47566a` |
### Typography
- **Base Size**: 17px
- **Body Font**: Noto Sans SC
- **Heading Font**: ZCOOL XiaoWei
- **Mono Font**: IBM Plex Mono
- **Heading Weight**: 400
- **Heading Transform**: none
- **Letter Spacing**: -0.02em
- **Line Height**: 1.6
- **Scale Ratio**: 1.28
- **Google Fonts Url**: https://fonts.googleapis.com/css2?family=IBM+Plex+Mono:wght@400;500&family=Noto+Sans+SC:wght@400;500;700&family=ZCOOL+XiaoWei&display=swap
### Radii
- **None**: 0px
- **Md**: 16px
- **Lg**: 24px
- **Full**: 9999px
### Shadows
- **Sm**: 0 2px 12px rgba(106,90,58,.09)
- **Md**: 0 12px 38px rgba(106,90,58,.13)
- **Lg**: 0 26px 70px rgba(106,90,58,.16)
### Spacing
- **Base**: 8px
- **Scale**: ["4px","8px","16px","24px","32px","48px","64px","96px","128px"]
### Surfaces
- **Treatment**: absorbent warm rice paper with fibrous grain and low-opacity radial ink washes
- **Card Style**: paper panel — no border, warm brown shadow, inset diluted-sumi wash pseudo-element, 24px radius
- **Bg Pattern**: SVG fractal-noise paper grain plus slow drifting ink-diffusion blobs
### Borders
- **Default Width**: 0
- **Accent Width**: 0
- **Style**: none
- **Character**: borderless — separation by paper elevation, ink-wash edges, alternating warm-paper fills and negative space
### Motion
- **Duration**: paint-in 900ms; ink diffusion 24s
- **Easing**: cubic-bezier(0.23,1,0.32,1)
- **Philosophy**: slow organic paint-in (opacity + blur-to-sharp + short vertical settle); ink diffusion breathes; nothing abrupt under 400ms for primary movement; respects prefers-reduced-motion
## Rules
### Composition
- Use one dominant restoration canvas rather than rows of equal cards.
- Pair dense control clusters with large empty paper fields (liubai).
- Keep scroll direction vertical, like unrolling a handscroll.
- Let ink blooms occupy negative space instead of adding decorative widgets.
- Break the grid with one oversized media panel or transcript strip.
### Density
Moderate: one dense console per viewport balanced by 64px to 128px empty intervals.
### Hierarchy
- Headings use ZCOOL XiaoWei at -0.035em tracking and 1.14 line height.
- Body copy uses Noto Sans SC at 17px, -0.02em tracking and 1.6 line height.
- Numeric and timecode labels use IBM Plex Mono in small all-caps.
- Vermillion only marks primary action, current frame or provenance seal.
### Signature Patterns
- {"name":"Ink diffusion background","css_concept":"body::before/::after radial-gradient blobs animated with transform scale + opacity over 24s","description":"Layered radial-gradient pseudo-elements slowly scale and drift, resembling ink dispersing through water without a synthetic rainbow gradient."}
- {"name":"Paint-in reveal","css_concept":"@keyframes paintIn{from{opacity:0;filter:blur(7px);transform:translateY(16px)}to{opacity:1;filter:blur(0);transform:none}}","description":"Panels and controls enter with blur-to-sharp opacity transitions and a short vertical settle, as if brushed onto paper."}
- {"name":"Paper-wash panels","css_concept":".panel{background:#f7f1e8;border-radius:24px;box-shadow:0 12px 38px rgba(106,90,58,.13)} .panel::before{inset radial ink wash} — NO border","description":"Cards use a 24px radius, warm shadow and inset diluted sumi/moss washes clipped inside the panel — and no borders anywhere."}
- {"name":"Seal-stamp emphasis","css_concept":".seal{background:#b83a2d;color:#f7f1e8;border-radius:0 or 9999px}","description":"Small square or pill vermillion marks (印) provide emphasis like a carved seal, used sparingly on active states and provenance."}
## Layout
### Density
moderate, with a dense console beside broad empty paper intervals
### Grid
- **Type**: asymmetric 12-column
- **Columns Desktop**: 12
- **Columns Tablet**: 8
- **Columns Mobile**: 4
- **Gutter**: 24px
- **Max Width**: 1200px
### Responsive
- **Wide**: capped, centred content; only the hero spans 100vw
- **Desktop**: 12-column asymmetric hero and console
- **Tablet**: 8-column stacked canvas over controls, designed in its own right
- **Mobile**: single column, sticky rail removed, simplified spacing
### Whitespace
- **Tight**: 4px-8px metadata clusters
- **Normal**: 24px panel internals
- **Wide**: 64px between work zones
- **Breath**: 96px-128px liubai voids
## Guidance
### Do
- Use animated ink diffusion backgrounds that slowly breathe.
- Apply paint-in blur-to-sharp reveals on major panels.
- Maintain generous negative space as active liubai composition.
- Use warm brown paper shadows and inset ink washes for depth.
- Keep vermillion emphasis sparse, like a seal stamp.
- Style every input, select, checkbox, switch and button as paper controls.
### Don't
- Do not use borders, hairline rules, grey dividers or accent edges on cards.
- Do not box navigation into a floating pill bar.
- Do not use pure white or cold grey backgrounds.
- Do not create equal three-card catalog sections.
- Do not use abrupt transitions under 400ms for primary movement.
- Do not mix arbitrary radii — commit to {0,16,24,9999}.
- Do not use more than one vermillion action in a viewport.
### Accessibility
- **Contrast**: #1a1612 on #f0ebe2 exceeds WCAG AA; #6b5f52 muted is used for larger or secondary copy and small mono labels.
- **Focus**: 3px vermillion outline with 3px offset on all controls.
- **Motion**: prefers-reduced-motion disables diffusion, paint-in blur and de-pins the landing to a settled readable document.
### Usage Context
Film-restoration tools, meditative media archives, nature-documentary libraries, art-gallery interpretation systems, storytelling products and wellness applications.
## Imagery Direction
### Pairs With
shuimo-ink-wash
### Technique
Chinese ink-wash (shuimo/sumi-e): wet sumi bleeding into absorbent warm rice paper, feathered diffused edges, diluted grey tonal gradients from deep black to nothing, vast liubai negative space, a single small vermillion seal.
### Subjects
- restored film frames
- Qi Baishi brush studies
- ink-wash landscapes
- water-diffusion macros
- archival rice-paper scans
- quiet nature imagery
### Prompt Suffix
NO text, NO letters, NO logos
### Avoid
- stock dashboard illustration
- synthetic vector mascots
- cold glossy 3D renders
---
version: "alpha"
name: "Shuimo"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
bg: "#f0ebe2"
surface: "#f7f1e8"
surface_solid: "#f7f1e8"
text: "#1a1612"
muted: "#6b5f52"
accent: "#b83a2d"
accent_2: "#3f6858"
accent_soft: "#e8c8c2"
on_accent: "#f7f1e8"
success: "#3f6858"
warning: "#6a5a3a"
error: "#b83a2d"
info: "#47566a"
typography:
headline-lg:
fontFamily: "ZCOOL XiaoWei"
fontSize: "2.075rem"
fontWeight: 700
lineHeight: 1.1
letterSpacing: "-0.02em"
headline-md:
fontFamily: "ZCOOL XiaoWei"
fontSize: "1.66rem"
fontWeight: 600
lineHeight: 1.15
letterSpacing: "-0.02em"
body-md:
fontFamily: "Noto Sans SC"
fontSize: "17px"
fontWeight: 400
lineHeight: 1.5
letterSpacing: "-0.02em"
label-md:
fontFamily: "IBM Plex Mono"
fontSize: "0.75rem"
fontWeight: 600
lineHeight: 1
letterSpacing: "0.08em"
rounded:
none: "0px"
md: "16px"
lg: "24px"
full: "9999px"
spacing:
base: "8px"
xs: "4px"
sm: "8px"
md: "16px"
lg: "24px"
xl: "32px"
2xl: "48px"
3xl: "64px"
4xl: "96px"
step-8: "128px"
components:
color-reference-bg:
backgroundColor: "{colors.bg}"
color-reference-surface:
backgroundColor: "{colors.surface}"
color-reference-surface_solid:
backgroundColor: "{colors.surface_solid}"
color-reference-text:
backgroundColor: "{colors.text}"
color-reference-muted:
backgroundColor: "{colors.muted}"
color-reference-accent:
backgroundColor: "{colors.accent}"
color-reference-accent_2:
backgroundColor: "{colors.accent_2}"
color-reference-accent_soft:
backgroundColor: "{colors.accent_soft}"
color-reference-on_accent:
backgroundColor: "{colors.on_accent}"
color-reference-success:
backgroundColor: "{colors.success}"
color-reference-warning:
backgroundColor: "{colors.warning}"
color-reference-error:
backgroundColor: "{colors.error}"
color-reference-info:
backgroundColor: "{colors.info}"
button-primary:
backgroundColor: "{colors.accent}"
textColor: "#ffffff"
typography: "{typography.label-md}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
card-surface:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
input-default:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
height: "44px"
---
# Shuimo
## Overview
A contemplative interface language for living ink on warm paper: content appears as if painted into existence, structure breathes with soft diffusion, and sparse vermillion marks punctuate otherwise restrained sumi surfaces. The faithfully modernized descendant of Ink Wash Motion — identity kept, execution corrected to current standards (no borders, 17px body, style-element-led embodiment, full artifact set).
### Values
- living stillness
- liubai negative space
- warm paper tactility
- diluted sumi hierarchy
- sparse vermillion emphasis
- slow organic motion
- visible imperfection
### Anti-Values
- synthetic SaaS chrome
- borders and grey divider systems
- fast abrupt animation
- pure white sterile backgrounds
- dense equal-card grids
- rainbow accent palettes
### Visual Character
- Warm rice-paper foundations use #f0ebe2 and fibrous noise overlays so every panel feels absorbent rather than glassy or plastic.
- Diluted sumi hierarchy uses near-black text, low-opacity ink washes and soft radial blooms instead of hard grey divider systems.
- Sparse vermillion marks appear as small seal-like chips and focus states, never as broad saturated fills or decorative gradients.
- Slow paint-in motion combines opacity, blur removal and small translate transforms with cubic-bezier(0.23,1,0.32,1) timing.
- Asymmetric scroll composition leaves large liubai voids beside dense controls so emptiness becomes a structural element.
## Colors
Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.
| Token | Value |
|-------|-------|
| bg | `#f0ebe2` |
| surface | `#f7f1e8` |
| surface_solid | `#f7f1e8` |
| text | `#1a1612` |
| muted | `#6b5f52` |
| accent | `#b83a2d` |
| accent_2 | `#3f6858` |
| accent_soft | `#e8c8c2` |
| on_accent | `#f7f1e8` |
| success | `#3f6858` |
| warning | `#6a5a3a` |
| error | `#b83a2d` |
| info | `#47566a` |
## Typography
- **Headline-Lg**: ZCOOL XiaoWei, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: ZCOOL XiaoWei, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Noto Sans SC, 17px, weight 400, line-height 1.5.
- **Label-Md**: IBM Plex Mono, 0.75rem, weight 600, line-height 1.
## Layout
### Spacing Tokens
- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `16px`
- **Lg**: `24px`
- **Xl**: `32px`
- **2xl**: `48px`
- **3xl**: `64px`
- **4xl**: `96px`
- **Step-8**: `128px`
### Density
moderate, with a dense console beside broad empty paper intervals
### Grid
- **Type**: asymmetric 12-column
- **Columns Desktop**: 12
- **Columns Tablet**: 8
- **Columns Mobile**: 4
- **Gutter**: 24px
- **Max Width**: 1200px
### Responsive
- **Wide**: capped, centred content; only the hero spans 100vw
- **Desktop**: 12-column asymmetric hero and console
- **Tablet**: 8-column stacked canvas over controls, designed in its own right
- **Mobile**: single column, sticky rail removed, simplified spacing
### Whitespace
- **Tight**: 4px-8px metadata clusters
- **Normal**: 24px panel internals
- **Wide**: 64px between work zones
- **Breath**: 96px-128px liubai voids
## Elevation & Depth
### Shadows
- **Sm**: 0 2px 12px rgba(106,90,58,.09)
- **Md**: 0 12px 38px rgba(106,90,58,.13)
- **Lg**: 0 26px 70px rgba(106,90,58,.16)
## Shapes
### Rounded
- **None**: `0px`
- **Md**: `16px`
- **Lg**: `24px`
- **Full**: `9999px`
### Surfaces
- **Treatment**: absorbent warm rice paper with fibrous grain and low-opacity radial ink washes
- **Card Style**: paper panel — no border, warm brown shadow, inset diluted-sumi wash pseudo-element, 24px radius
- **Bg Pattern**: SVG fractal-noise paper grain plus slow drifting ink-diffusion blobs
### Borders
- **Default Width**: 0
- **Accent Width**: 0
- **Style**: none
- **Character**: borderless — separation by paper elevation, ink-wash edges, alternating warm-paper fills and negative space
## Components
### Composition
- Use one dominant restoration canvas rather than rows of equal cards.
- Pair dense control clusters with large empty paper fields (liubai).
- Keep scroll direction vertical, like unrolling a handscroll.
- Let ink blooms occupy negative space instead of adding decorative widgets.
- Break the grid with one oversized media panel or transcript strip.
### Density
Moderate: one dense console per viewport balanced by 64px to 128px empty intervals.
### Hierarchy
- Headings use ZCOOL XiaoWei at -0.035em tracking and 1.14 line height.
- Body copy uses Noto Sans SC at 17px, -0.02em tracking and 1.6 line height.
- Numeric and timecode labels use IBM Plex Mono in small all-caps.
- Vermillion only marks primary action, current frame or provenance seal.
### Signature Patterns
- {"name":"Ink diffusion background","css_concept":"body::before/::after radial-gradient blobs animated with transform scale + opacity over 24s","description":"Layered radial-gradient pseudo-elements slowly scale and drift, resembling ink dispersing through water without a synthetic rainbow gradient."}
- {"name":"Paint-in reveal","css_concept":"@keyframes paintIn{from{opacity:0;filter:blur(7px);transform:translateY(16px)}to{opacity:1;filter:blur(0);transform:none}}","description":"Panels and controls enter with blur-to-sharp opacity transitions and a short vertical settle, as if brushed onto paper."}
- {"name":"Paper-wash panels","css_concept":".panel{background:#f7f1e8;border-radius:24px;box-shadow:0 12px 38px rgba(106,90,58,.13)} .panel::before{inset radial ink wash} — NO border","description":"Cards use a 24px radius, warm shadow and inset diluted sumi/moss washes clipped inside the panel — and no borders anywhere."}
- {"name":"Seal-stamp emphasis","css_concept":".seal{background:#b83a2d;color:#f7f1e8;border-radius:0 or 9999px}","description":"Small square or pill vermillion marks (印) provide emphasis like a carved seal, used sparingly on active states and provenance."}
## shadcn/ui Usage
When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.
DESIGN.md with shadcn: `/language/en-019f8af7-6ee7-7b90-90ab-a651ae100759/DESIGN.with-shadcn.md`.
The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.
Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.
## Do's and Don'ts
- Do Use animated ink diffusion backgrounds that slowly breathe.
- Do Apply paint-in blur-to-sharp reveals on major panels.
- Do Maintain generous negative space as active liubai composition.
- Do Use warm brown paper shadows and inset ink washes for depth.
- Do Keep vermillion emphasis sparse, like a seal stamp.
- Do Style every input, select, checkbox, switch and button as paper controls.
- Don't Do not use borders, hairline rules, grey dividers or accent edges on cards.
- Don't Do not box navigation into a floating pill bar.
- Don't Do not use pure white or cold grey backgrounds.
- Don't Do not create equal three-card catalog sections.
- Don't Do not use abrupt transitions under 400ms for primary movement.
- Don't Do not mix arbitrary radii — commit to {0,16,24,9999}.
- Don't Do not use more than one vermillion action in a viewport.
### Accessibility
- **Contrast**: #1a1612 on #f0ebe2 exceeds WCAG AA; #6b5f52 muted is used for larger or secondary copy and small mono labels.
- **Focus**: 3px vermillion outline with 3px offset on all controls.
- **Motion**: prefers-reduced-motion disables diffusion, paint-in blur and de-pins the landing to a settled readable document.
### Usage Context
Film-restoration tools, meditative media archives, nature-documentary libraries, art-gallery interpretation systems, storytelling products and wellness applications.
## Imagery Direction
### Pairs With
shuimo-ink-wash
### Technique
Chinese ink-wash (shuimo/sumi-e): wet sumi bleeding into absorbent warm rice paper, feathered diffused edges, diluted grey tonal gradients from deep black to nothing, vast liubai negative space, a single small vermillion seal.
### Subjects
- restored film frames
- Qi Baishi brush studies
- ink-wash landscapes
- water-diffusion macros
- archival rice-paper scans
- quiet nature imagery
### Prompt Suffix
NO text, NO letters, NO logos
### Avoid
- stock dashboard illustration
- synthetic vector mascots
- cold glossy 3D renders
```json
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "shuimo",
"type": "registry:theme",
"title": "Shuimo shadcn Theme",
"cssVars": {
"theme": {},
"light": {
"background": "#f0ebe2",
"foreground": "#1a1612",
"card": "#f7f1e8",
"card-foreground": "#1a1612",
"popover": "#f7f1e8",
"popover-foreground": "#1a1612",
"primary": "#1a1612",
"primary-foreground": "#ffffff",
"secondary": "#f4f4f5",
"secondary-foreground": "#111111",
"muted": "#6b5f52",
"muted-foreground": "#1a1612",
"accent": "#b83a2d",
"accent-foreground": "#ffffff",
"destructive": "#b83a2d",
"border": "rgba(26,22,18,0.06)",
"input": "rgba(26,22,18,0.06)",
"ring": "#b83a2d",
"chart-1": "#1a1612",
"chart-2": "#f4f4f5",
"chart-3": "#b83a2d",
"chart-4": "#3f6858",
"chart-5": "#6a5a3a",
"sidebar": "#f7f1e8",
"sidebar-foreground": "#1a1612",
"sidebar-primary": "#1a1612",
"sidebar-primary-foreground": "#ffffff",
"sidebar-accent": "#47566a",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "rgba(26,22,18,0.06)",
"sidebar-ring": "#b83a2d",
"radius": "16px"
},
"dark": {
"background": "#0f1115",
"foreground": "#f8fafc",
"card": "#181b22",
"card-foreground": "#f8fafc",
"popover": "#181b22",
"popover-foreground": "#f8fafc",
"primary": "#1a1612",
"primary-foreground": "#ffffff",
"secondary": "#252a33",
"secondary-foreground": "#f8fafc",
"muted": "#252a33",
"muted-foreground": "#a1a1aa",
"accent": "#b83a2d",
"accent-foreground": "#ffffff",
"destructive": "#b83a2d",
"border": "#303642",
"input": "#303642",
"ring": "#b83a2d",
"chart-1": "#1a1612",
"chart-2": "#f4f4f5",
"chart-3": "#b83a2d",
"chart-4": "#3f6858",
"chart-5": "#6a5a3a",
"sidebar": "#181b22",
"sidebar-foreground": "#f8fafc",
"sidebar-primary": "#1a1612",
"sidebar-primary-foreground": "#ffffff",
"sidebar-accent": "#b83a2d",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "#303642",
"sidebar-ring": "#b83a2d",
"radius": "16px"
}
},
"meta": {
"source": "katagami",
"languageId": "en-019f8af7-6ee7-7b90-90ab-a651ae100759",
"slug": "shuimo",
"componentManifest": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"nativeTokenNames": {
"colors": [
"accent",
"accent_2",
"accent_soft",
"bg",
"border",
"error",
"info",
"muted",
"on_accent",
"success",
"surface",
"surface_solid",
"text",
"warning"
],
"typography": [
"base_size",
"body_font",
"google_fonts_url",
"heading_font",
"heading_transform",
"heading_weight",
"letter_spacing",
"line_height",
"mono_font",
"scale_ratio"
],
"radii": [
"full",
"lg",
"md",
"none"
],
"shadows": [
"lg",
"md",
"sm"
],
"spacing": [
"base",
"scale"
],
"surfaces": [
"bg_pattern",
"card_style",
"treatment"
],
"borders": [
"accent_width",
"character",
"default_width",
"style"
],
"motion": [
"duration",
"easing",
"philosophy"
]
}
}
}
```The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
Agent-generated
Keep Shuimoand swap a palette and an art style onto it — the landing & dashboard recolor live. The Studio does the same with all three lanes free.
Copy this when the target app uses shadcn/ui. It packages the Katagami DESIGN.md context with the install list, theme variables, component recipes, preview-shot contract, and starter TSX in one Markdown companion.
npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table:root {
--background: #f0ebe2;
--foreground: #1a1612;
--card: #f7f1e8;
--card-foreground: #1a1612;
--popover: #f7f1e8;
--popover-foreground: #1a1612;
--primary: #1a1612;
--primary-foreground: #ffffff;
--secondary: #f4f4f5;
--secondary-foreground: #111111;
--muted: #6b5f52;
--muted-foreground: #1a1612;
--accent: #b83a2d;
--accent-foreground: #ffffff;
--destructive: #b83a2d;
--border: rgba(26,22,18,0.06);
--input: rgba(26,22,18,0.06);
--ring: #b83a2d;
--chart-1: #1a1612;
--chart-2: #f4f4f5;
--chart-3: #b83a2d;
--chart-4: #3f6858;
--chart-5: #6a5a3a;
--sidebar: #f7f1e8;
--sidebar-foreground: #1a1612;
--sidebar-primary: #1a1612;
--sidebar-primary-foreground: #ffffff;
--sidebar-accent: #47566a;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: rgba(26,22,18,0.06);
--sidebar-ring: #b83a2d;
--radius: 16px;
}
.dark {
--background: #0f1115;
--foreground: #f8fafc;
--card: #181b22;
--card-foreground: #f8fafc;
--popover: #181b22;
--popover-foreground: #f8fafc;
--primary: #1a1612;
--primary-foreground: #ffffff;
--secondary: #252a33;
--secondary-foreground: #f8fafc;
--muted: #252a33;
--muted-foreground: #a1a1aa;
--accent: #b83a2d;
--accent-foreground: #ffffff;
--destructive: #b83a2d;
--border: #303642;
--input: #303642;
--ring: #b83a2d;
--chart-1: #1a1612;
--chart-2: #f4f4f5;
--chart-3: #b83a2d;
--chart-4: #3f6858;
--chart-5: #6a5a3a;
--sidebar: #181b22;
--sidebar-foreground: #f8fafc;
--sidebar-primary: #1a1612;
--sidebar-primary-foreground: #ffffff;
--sidebar-accent: #b83a2d;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: #303642;
--sidebar-ring: #b83a2d;
--radius: 16px;
}
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function ShuimoShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Shuimo</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "shuimo",
"type": "registry:theme",
"author": "katagami-agent",
"title": "Shuimo",
"description": "Ink-wash motion, done properly: warm rice-paper surfaces, diluted sumi hierarchy, a single vermillion seal, and slow paint-in motion. Borderless — separation comes from paper elevation, ink washes, and negative space.",
"cssVars": {
"light": {
"background": "#f0ebe2",
"foreground": "#1a1612",
"card": "#f7f1e8",
"card-foreground": "#1a1612",
"popover": "#f7f1e8",
"popover-foreground": "#1a1612",
"primary": "#2d2824",
"primary-foreground": "#f7f1e8",
"secondary": "#3f6858",
"secondary-foreground": "#f7f1e8",
"muted": "#e7e0d4",
"muted-foreground": "#6b5f52",
"accent": "#b83a2d",
"accent-foreground": "#f7f1e8",
"destructive": "#b83a2d",
"destructive-foreground": "#f7f1e8",
"success": "#3f6858",
"warning": "#6a5a3a",
"info": "#47566a",
"border": "rgba(26,22,18,0.08)",
"input": "#eae3d6",
"ring": "#b83a2d",
"radius": "24px",
"chart-1": "#1a1612",
"chart-2": "#3f6858",
"chart-3": "#b83a2d",
"chart-4": "#6a5a3a",
"chart-5": "#6b5f52"
},
"dark": {
"background": "#171310",
"foreground": "#efe7d9",
"card": "#211b16",
"card-foreground": "#efe7d9",
"popover": "#211b16",
"popover-foreground": "#efe7d9",
"primary": "#efe7d9",
"primary-foreground": "#171310",
"secondary": "#5b8a78",
"secondary-foreground": "#171310",
"muted": "#2a231d",
"muted-foreground": "#b3a794",
"accent": "#d0503f",
"accent-foreground": "#f7f1e8",
"destructive": "#d0503f",
"destructive-foreground": "#f7f1e8",
"success": "#5b8a78",
"warning": "#a68a55",
"info": "#7d8ba0",
"border": "rgba(239,231,217,0.08)",
"input": "#2a231d",
"ring": "#d0503f",
"radius": "24px",
"chart-1": "#efe7d9",
"chart-2": "#5b8a78",
"chart-3": "#d0503f",
"chart-4": "#a68a55",
"chart-5": "#b3a794"
}
},
"visualProfile": {
"family": "contemplative ink-wash / warm-paper editorial",
"material": "absorbent warm rice paper with fibrous grain and low-opacity radial ink washes",
"contour": "generous pill controls (9999px) and 24px paper panels; seal chips at 6px square",
"border": "none",
"underlay": true,
"grain": true,
"stickerBadges": false,
"motion": "slow paint-in — opacity + blur-to-sharp + short vertical settle on 0.9s cubic-bezier(0.23,1,0.32,1); ink diffusion breathes over 24s",
"density": "moderate — dense control clusters balanced by wide liubai negative space",
"accents": ["#b83a2d", "#3f6858", "#6a5a3a"]
},
"notes": "Borderless language: never draw hairline dividers or accent edges on cards. Elevation is warm brown paper shadow (0 12px 38px rgba(106,90,58,.13)), inset diluted-sumi wash pseudo-elements, and negative space. Vermillion (#b83a2d) is rationed like a carved seal — primary action, active state, focus ring only. Moss (#3f6858) carries progress/success; ochre (#6a5a3a) cautions. Radii only from {0,16,24,9999}. Focus is a 3px vermillion ring at 3px offset. Headings use ZCOOL XiaoWei; body Noto Sans SC 17px; labels/timecodes IBM Plex Mono."
}
# shadcn/ui Components — Shuimo
Author: `katagami-agent`
Ink-wash motion, done properly. Shuimo dresses shadcn/ui primitives as if painted onto warm rice paper: surfaces absorb like fiber, structure arrives through blur-to-sharp paint-in motion, a single vermillion seal marks what matters, and there are no borders anywhere — separation comes from paper elevation, ink washes, and negative space.
## ShadSync visual profile
The renderer reads this profile to skin every primitive. Honor it exactly.
- **family**: contemplative ink-wash / warm-paper editorial
- **material**: absorbent warm rice paper (`#f0ebe2` ground, `#f7f1e8` raised) with fibrous SVG grain and low-opacity radial ink washes inset in panels
- **contour**: pill controls (`9999px`), `24px` paper panels, `16px` on small chips, `0/6px` square seal stamps
- **border**: **none** — never a hairline divider, never an accent edge on a card. Elevation is warm brown paper shadow `0 12px 38px rgba(106,90,58,.13)` plus inset diluted-sumi wash.
- **underlay**: true (radial ink-wash pseudo-elements clipped inside cards)
- **grain**: true (fractal-noise paper texture at ~0.3 opacity, multiply)
- **stickerBadges**: false
- **motion**: slow paint-in — `opacity + blur(7px→0) + translateY(16px→0)` over `900ms cubic-bezier(0.23,1,0.32,1)`; ambient ink diffusion breathes over `24s`; nothing abrupt under `400ms` for primary movement
- **density**: moderate — dense control clusters balanced by wide liubai voids (`64–128px`)
- **accents**: `#b83a2d` vermillion seal (rationed), `#3f6858` moss (progress/success), `#6a5a3a` ochre (caution)
Type: display **ZCOOL XiaoWei** (`-0.035em`, line-height `1.14`), body **Noto Sans SC** (`17px`, `-0.02em`, line-height `1.6`), mono **IBM Plex Mono** (timecodes, labels, provenance). Focus ring: `3px solid #b83a2d` at `3px` offset on every interactive element.
## Signature component recipes
- **Button** — pill, IBM Plex Mono uppercase caps (`13px`, `.09em`). Primary is a sumi fill (`#2d2824` → `#100e0b` on hover with a `-2px` lift). `variant="seal"` is the vermillion action, used once per view. Ghost is transparent with an inset `1.5px` ink ring that turns vermillion on hover. No emoji, ever.
- **Card** — a paper panel: `#f7f1e8`, `24px` radius, warm shadow, an inset radial ink wash drifting for `20s`. Never bordered, never nested.
- **Input / Textarea / Select** — filled warm-paper fields with an inset top shadow (no outline border); vermillion focus ring. Select uses a hand-drawn sumi chevron. Textarea steps to `24px` radius.
- **Checkbox / Radio / Switch** — custom: checkbox fills vermillion with a paper tick; radio dots vermillion; switch track turns moss when on. No native controls visible.
- **Badge** — a seal chip: mono caps on warm paper (`chip`) or vermillion fill (`chip seal`) / moss (`chip moss`). The `印` stamp glyph marks provenance.
- **Table** — borderless ledger: mono uppercase headers, alternating warm-paper row fills with `16px` corner radius, moss progress bars, seal pills for status.
- **Tabs / Nav** — links breathe on the page (no boxed pill bar); an ink underline sweeps up on hover/active.
- **Dialog / Sheet / Tooltip / Dropdown** — paper panels with backdrop blur and warm shadow; enter with paint-in; scrim is a soft warm wash, never a lazy grey.
- **Slider** — sumi-filled track, vermillion thumb. **Separator** — a diluted ink wash, not a grey line.
## Preview shots
See `preview-shots.json` (`renderable-v1`) for ≥3 fully-specified product scenes exercising all sixteen primitives in the Shuimo skin: a restoration console, a provenance ledger, and a wash-calibration form. Each shot names what it must show (paper panels, seal chips, moss bars, vermillion focus) and what to avoid (borders, grey dividers, more than one vermillion action per view).
## Copy-paste component example
```tsx
import { Button } from "@/components/ui/button"
import { Card, CardContent, CardHeader, CardTitle } from "@/components/ui/card"
import { Badge } from "@/components/ui/badge"
export function WashPanel() {
return (
<Card className="rounded-[24px] border-0 bg-[#f7f1e8] shadow-[0_12px_38px_rgba(106,90,58,0.13)]">
<CardHeader className="flex flex-row items-center justify-between">
<CardTitle className="font-[ZCOOL_XiaoWei] tracking-[-0.035em]">
Wash calibration
</CardTitle>
<Badge className="rounded-full bg-[#b83a2d] font-mono text-[12px] tracking-[0.06em] text-[#f7f1e8]">
印 ACTIVE
</Badge>
</CardHeader>
<CardContent className="space-y-4">
<p className="text-[14.5px] text-[#6b5f52]">
Preserve the edge bleed; reduce scanner contrast by 7%.
</p>
<div className="flex gap-3">
<Button className="rounded-full bg-[#2d2824] font-mono text-[13px] uppercase tracking-[0.09em] text-[#f7f1e8]">
Paint correction
</Button>
<Button variant="ghost" className="rounded-full">Compare dry frame</Button>
</div>
</CardContent>
</Card>
)
}
```
All classes above resolve against the tokens in `export.json`. Import primitives from `@/components/ui/` and let the ShadSync visual profile do the skinning — do not add borders back in.
{
"artifact": "katagami:shadcn-preview-shots",
"version": "preview-shots-v1",
"schema": "katagami:shadcn-preview-shots/renderable-v1",
"renderable": true,
"author": "katagami-agent",
"requiresVisualProfile": true,
"language": {
"id": "en-019f8af7-6ee7-7b90-90ab-a651ae100759",
"name": "Shuimo",
"slug": "shuimo"
},
"installCommand": "npx shadcn@latest add https://katagami.ai/r/shuimo.json",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"identityNotes": [
"No borders anywhere — separation is warm paper elevation, inset ink washes, and negative space.",
"Vermillion #b83a2d is rationed like a carved seal: primary action, active state, focus ring only.",
"Every surface is warm rice paper (#f0ebe2 / #f7f1e8) with fibrous grain, never pure white, never grey.",
"Motion is slow paint-in: opacity + blur-to-sharp + short vertical settle; nothing abrupt under 400ms.",
"Radii only from {0, 16, 24, 9999}; controls are pills, panels are 24px, seal stamps are square.",
"Type: ZCOOL XiaoWei display, Noto Sans SC 17px body, IBM Plex Mono for timecodes and labels."
],
"visualProfile": {
"family": "contemplative ink-wash / warm-paper editorial",
"material": "absorbent warm rice paper with fibrous grain and low-opacity radial ink washes",
"contour": "pill controls, 24px paper panels, square seal chips",
"border": "none",
"underlay": true,
"grain": true,
"stickerBadges": false,
"motion": "slow paint-in (opacity + blur-to-sharp + vertical settle, 0.9s), ambient ink diffusion over 24s",
"density": "moderate — dense clusters balanced by wide liubai voids",
"accents": [
"#b83a2d",
"#3f6858",
"#6a5a3a"
]
},
"tokens": {
"background": "#f0ebe2",
"surface": "#f7f1e8",
"foreground": "#1a1612",
"primary": "#2d2824",
"primary-foreground": "#f7f1e8",
"accent": "#b83a2d",
"accent-foreground": "#f7f1e8",
"success": "#3f6858",
"warning": "#6a5a3a",
"info": "#47566a",
"muted": "#e7e0d4",
"muted-foreground": "#6b5f52",
"ring": "#b83a2d",
"radius": "24px",
"font-display": "ZCOOL XiaoWei",
"font-body": "Noto Sans SC",
"font-mono": "IBM Plex Mono"
},
"shots": [
{
"id": "restoration-console",
"title": "Ink-wash restoration console",
"viewport": "1440x960",
"primitives": [
"card",
"button",
"badge",
"tabs",
"slider",
"switch",
"tooltip",
"separator"
],
"composition": "Asymmetric console: one dominant restoration canvas (a framed ink-wash reel) left, a dense wash-calibration control rail right, four quiet KPI tiles above. Wide liubai margins.",
"mustShow": [
"paper panels with warm shadow and no borders",
"one vermillion seal badge (印 ACTIVE) as the only saturated mark",
"moss progress bars and a sumi-filled slider with a vermillion thumb",
"IBM Plex Mono KPI labels and timecodes"
],
"avoid": [
"any hairline border or grey divider",
"more than one vermillion action",
"pure white surfaces",
"emoji on buttons"
],
"scene": {
"headline": "Reel 04 — Mother-search sequence",
"description": "Restorer calibrates sumi density while preserving edge bleed on a scanned 1963 Shanghai master.",
"stats": [
{
"label": "Reels in pass",
"value": "18",
"delta": "+3 today"
},
{
"label": "Edge bleed kept",
"value": "94%",
"delta": "within tolerance"
},
{
"label": "Sumi density",
"value": "0.62",
"delta": "watch reed cluster"
},
{
"label": "Seals pressed",
"value": "7",
"delta": "印 approved"
}
]
}
},
{
"id": "provenance-ledger",
"title": "Frame provenance ledger",
"viewport": "1440x900",
"primitives": [
"table",
"badge",
"button",
"dropdown-menu",
"tooltip",
"separator"
],
"composition": "A single borderless ledger table filling a wide paper panel: alternating warm-paper row fills with 16px corners, mono uppercase headers, moss progress bars, seal status pills. A quiet dropdown for export sits top-right.",
"mustShow": [
"borderless table with row rhythm from alternating paper fills, not lines",
"seal (印 SEALED) pills in vermillion used sparingly for approved passes",
"ochre LOW pill for the caution row",
"no grey dividers between rows"
],
"avoid": [
"table borders or rules",
"colored row backgrounds beyond warm paper",
"vermillion on every row"
],
"scene": {
"headline": "8 passes · last export 00:09 ago",
"description": "Provenance of every correction applied to reel 04, sealed by curator.",
"rows": [
{
"pass": "REEL 04",
"correction": "Edge bleed stabilised",
"progress": "72%",
"status": "印 SEALED"
},
{
"pass": "SCAN B",
"correction": "Paper fiber retained",
"progress": "88%",
"status": "OK"
},
{
"pass": "INK 19",
"correction": "Moss wash separation",
"progress": "54%",
"status": "LOW"
},
{
"pass": "CUT 12",
"correction": "Motion cadence matched",
"progress": "93%",
"status": "印 SEALED"
}
]
}
},
{
"id": "wash-calibration-form",
"title": "Wash calibration form",
"viewport": "1024x900",
"primitives": [
"input",
"textarea",
"select",
"checkbox",
"switch",
"button",
"card",
"dialog"
],
"composition": "A centered paper card holding a full form: reel title input, paper-stock select with a hand-drawn sumi chevron, sumi-density slider, a curator-note textarea, custom checkboxes and a moss switch, and a primary sumi button beside a ghost button. A confirmation dialog paints in on submit.",
"mustShow": [
"every control custom-styled with a vermillion focus ring — no browser defaults",
"filled warm-paper fields with inset top shadow instead of a border",
"checkbox that fills vermillion with a paper tick; switch that turns moss when on",
"paint-in reveal on the dialog"
],
"avoid": [
"outlined/bordered inputs",
"native checkbox or select chrome",
"grey placeholder-on-grey"
],
"scene": {
"headline": "Calibrate wash — reel 04",
"description": "Set density and paper stock, preserve feathering, then seal the correction.",
"fields": [
{
"label": "Reel title",
"type": "input",
"value": "Mother-search sequence"
},
{
"label": "Paper stock",
"type": "select",
"value": "Warm xuan paper"
},
{
"label": "Sumi density",
"type": "slider",
"value": "62"
},
{
"label": "Preserve feathering",
"type": "switch",
"value": "on"
},
{
"label": "Curator note",
"type": "textarea",
"value": "Retain the tadpole tails; reduce scanner contrast by 7%."
}
]
}
}
],
"componentRecipes": [
{
"primitive": "button",
"intent": "Pill, IBM Plex Mono uppercase caps; primary is a sumi fill lifting -2px on hover; a single vermillion 'seal' action per view; ghost has an inset ink ring that turns vermillion."
},
{
"primitive": "card",
"intent": "Paper panel #f7f1e8, 24px radius, warm shadow, inset radial ink wash drifting 20s; never bordered, never nested."
},
{
"primitive": "input",
"intent": "Filled warm-paper field with inset top shadow, no border; vermillion focus ring at 3px offset."
},
{
"primitive": "textarea",
"intent": "Same as input but 24px radius and taller; placeholder is muted warm ink, never grey-on-grey."
},
{
"primitive": "select",
"intent": "Filled field with a hand-drawn sumi chevron; menu is a paper popover with paint-in and warm shadow."
},
{
"primitive": "dialog",
"intent": "Paper panel that paints in (blur-to-sharp + settle); scrim is a soft warm wash, never lazy grey."
},
{
"primitive": "sheet",
"intent": "Edge paper panel sliding in on the organic easing; warm shadow, no border seam."
},
{
"primitive": "tabs",
"intent": "Links that breathe on the page — no boxed pill bar; an ink underline sweeps up on the active tab."
},
{
"primitive": "badge",
"intent": "Seal chip: mono caps on warm paper, or vermillion/moss fill; 印 stamp glyph marks provenance."
},
{
"primitive": "separator",
"intent": "A diluted ink wash or negative space — never a grey rule."
},
{
"primitive": "checkbox",
"intent": "Custom square that fills vermillion with a paper tick; inset shadow when unchecked."
},
{
"primitive": "switch",
"intent": "Track turns moss when on; paper knob with soft shadow slides on the organic easing."
},
{
"primitive": "slider",
"intent": "Sumi-filled track, vermillion thumb with a soft vermillion glow."
},
{
"primitive": "tooltip",
"intent": "Small paper popover with warm shadow and mono micro-label; paints in, no border."
},
{
"primitive": "dropdown-menu",
"intent": "Paper popover, paint-in, warm shadow; active item marked by a vermillion seal dot, not a fill."
},
{
"primitive": "table",
"intent": "Borderless ledger: mono uppercase headers, alternating warm-paper rows with 16px corners, moss bars, seal status pills."
},
{
"primitive": "avatar",
"intent": "Round moss chip with a ZCOOL XiaoWei initial — quiet, warm, no ring."
},
{
"primitive": "progress",
"intent": "Moss fill on a diluted-ink track; ochre when a value sits below threshold."
}
],
"qualityRules": {
"do": [
"Let panels lift with warm brown paper shadow and inset ink washes; keep wide liubai margins.",
"Ration vermillion to a single seal-like mark per view; carry progress in moss and caution in ochre.",
"Custom-style every control with a vermillion focus ring; keep body text at 17px on absorbent paper.",
"Use ZCOOL XiaoWei for display, Noto Sans SC for body, IBM Plex Mono for timecodes and labels."
],
"dont": [
"Add borders, hairline dividers, or accent edges to any card or control.",
"Use pure white or cold grey surfaces, or grey-on-grey placeholders.",
"Put more than one vermillion action in a single view, or emoji on any button.",
"Mix arbitrary radii — commit to 0, 16, 24, and 9999 only."
]
}
}
