# Alidade

## Philosophy

Alidade is a measurement workspace for review queues, drawn as a nomogram atlas. Each sheet carries three parallel log scales in violet ink on white, and one straight magenta edge laid across them: the line is the readout and the page is the chart. Drag either end of the edge, or the ring on the middle scale to solve the right-hand one, and the sentence under the chart rewrites itself. It is the descendant of Graticule that keeps the measurement-workspace idea, the 24px ruling and the four registration ticks, and swaps the graphite table for white sheets and a single violet ink and magenta pair.

### Values

- The straight edge is the interface: every claim is read off one line across real log scales.
- One ink and one line: scales in violet #4A22C8, the edge in magenta #D2008B, nothing else competes.
- A sentence for every reading: the headline of each sheet is a question and the answer is rewritten live.
- Cockpit legibility: B612 is set large, open and tabular so a number is read at a glance.
- Flat and square: sheets, wells and buttons are radius 0; only the dots on the edge are round.

### Anti-Values

- Stat bands with invented totals, and tables standing in for a chart.
- Top bars, footers, eyebrows and card indexes around the sheets.
- Gradients, glass and photographic backdrops under copy.
- A second accent colour, or magenta on the pale surface at body size.
- Borders and hairline card frames.

### Visual Character

- White sheets with a faint 24px violet ruling and four corner registration ticks.
- Three vertical log scales per sheet: major ticks 2.5px, minor ticks 1px, tabular labels in violet.
- One magenta straight edge with round dots on the outer scales and a ring on the middle one.
- B612 only, 700 for headlines and readouts, 400 for prose.
- A drafting-table plate in violet ink on white for the hero, with the alidade as the one magenta part.
- Flat square wells in #F0ECFF, a violet underline for focus.

### Lineage

> Descendant of Graticule (en-019efa7c-5133-7f82-a6af-bce556fd39fd). It keeps the measurement-workspace concept, the 24px ruling, the registration ticks and the single lifted datum, and replaces the graphite ground and blue datum with white sheets, violet scales and a magenta edge, the stat band and card grid with a three-sheet nomogram, and the Space Grotesk and IBM Plex pair with B612.

## Tokens

### Colors

| Name | Value |
|------|-------|
| bg | `#FFFFFF` |
| surface | `#F0ECFF` |
| text | `#1A1030` |
| muted | `#5A4F7A` |
| border | `#CFC6F0` |
| accent | `#D2008B` |
| on_accent | `#FFFFFF` |
| success | `#0A7A55` |
| warning | `#8A5A00` |
| error | `#B0102A` |
| info | `#4A22C8` |
| scale | `#4A22C8` |

### Derived

- **Ruling**: rgba(74,34,200,0.08) 1px lines every 24px on both axes, on sheet grounds only
- **Lift**: 0 18px 36px -14px rgba(74,34,200,0.4), on an open menu or dialog only
- **Row Tint**: #E4DDFF on hover over a surface row
- **Pressed Accent**: #A30069

### Typography

- **Heading Font**: B612
- **Body Font**: B612
- **Mono Font**: B612 (tabular figures)
- **Heading Weight**: 700
- **Body Weight**: 400
- **Button Weight**: 700
- **Heading Transform**: none
- **Letter Spacing**: -0.02em on display, -0.01em on body
- **Base Size**: 17px
- **Line Height**: 1.55
- **Scale**: ["14.5px","17px","20px","27px","36px","58px"]
- **Google Fonts Url**: https://fonts.googleapis.com/css2?family=B612:wght@400;700&display=swap

### Radii

- **None**: 0px
- **Md**: 0px
- **Lg**: 0px
- **Full**: 9999px

### Shadows

- **Lift**: 0 18px 36px -14px rgba(74,34,200,0.4), only on an open menu, dialog or toast
- **None**: everything else is flat

### Spacing

- **Base**: 8px
- **Scale**: ["4px","8px","12px","16px","24px","32px","48px","72px","96px"]

### Surfaces

- **Treatment**: white-sheet-on-ruling
- **Material**: Plain white sheets carrying a faint 24px ruling in violet ink and four corner registration ticks; surface #F0ECFF wells and bands where a sheet needs a second tone. No cards, no photographs under copy.
- **Card Style**: No cards. Scales, readings and sentences sit on the sheet, parted by space and a surface band.
- **Bg Pattern**: 24px violet ruling at 8% opacity

### Borders

- **Default Width**: 0
- **Style**: none
- **Character**: No borders on controls or panels. The ink lines that exist are the scales themselves, the magenta straight edge and the four corner registration ticks of each sheet. Focus is a 3px violet outline at 3px offset; a focused well draws a 3px violet line under itself.

### Motion

- **Duration**: 200ms
- **Easing**: cubic-bezier(0.2, 0, 0.1, 1)
- **Philosophy**: The edge moves because the reader moves it: dragging a dot updates the sentence and every readout at once. Nothing animates on its own, and the settled page renders with no JavaScript and under prefers-reduced-motion.

### Controls

- **Height**: 52px (40 small, 60 large)
- **Radius**: 0px
- **Well Height**: 52px

## Rules

### Composition

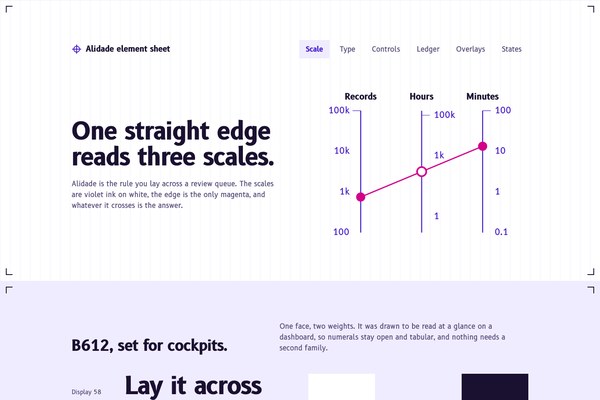

- Build every sheet around one nomogram: three parallel log scales and one straight edge across them.
- Give each sheet one question as its headline and one sentence that answers it, rewritten as the edge moves.
- Sheets run in order and each is its own full-height plate; there is no top bar and no footer.
- Keep sections free of cards: readings, scales and sentences sit on the sheet, parted by space and one surface band.

### Hierarchy

- Display and sheet titles in B612 700 at -0.02em: 58px for the first headline on desktop, 36px for sheet titles.
- Prose in B612 400 at 17px, in two tones: the claim in ink, the explanation in muted.
- Readouts in B612 700 with tabular figures, magenta on white only.
- Scale labels at 14.5 to 17px in violet, aligned to their ticks.

### Density

Calm sheet density: 48 to 96px of padding above and below each sheet, one button per sheet at most, prose held to about 46 characters.

### Signature Patterns

- The straight edge: one magenta line across three log scales; its ends are dots, its middle a ring, and moving any of them rewrites the readouts and the sentence.
- The ruled sheet: a 24px violet ruling and four corner registration ticks on every sheet.
- The datum: exactly one magenta element is lifted per view, the edge or the active row.
- Log scales with major and minor ticks: every number sits on a real logarithmic ruler.

### Interaction

- Drag an end of the edge, or press an arrow key on a focused dot (Shift for a larger step).
- Drag the middle ring to solve the right-hand scale instead.
- Links draw a 2px magenta line under the word from the left on hover.

## Layout

### Grid

- **Type**: sheet atlas
- **Max Width**: 1240px content, centred above 1440px
- **Gutter**: clamp(20px, 5vw, 72px)
- **Column Behavior**: Heads use minmax(0,7fr) minmax(0,5fr); element lists use minmax(0,1fr) columns; every grid child has min-width:0.

### Whitespace

- **Section Gap**: clamp(48px, 7vw, 96px) of sheet padding
- **Card Gap**: no cards; 16 to 48px between groups
- **Content Padding**: content aligns to the grid edge, clear of the corner ticks
- **Approach**: White paper and space do the separating; the surface band is the only second tone.

### Density

- **Default**: comfortable
- **Comfortable**: {"button_height":"52px","input_height":"52px","row_height":"56px table rows"}

### Responsive

Phones (390px) stack heads to one column, keep the chart full width with scale labels at 14.5px and hide non-essential table columns. Tablets (601 to 1199px) keep two-column heads with their own spacing. Above 1440px the content caps and centres; only the hero sheet is full bleed.

### Breakpoints

- **Mobile**: 390px
- **Phone Max**: 600px
- **Tablet**: 601 to 1199px
- **Desktop**: 1280px
- **Ultrawide**: 2560px

## Guidance

### Do

- Lay one straight edge across three real log scales and let the sentence answer it.
- Keep scales in violet ink and the edge in magenta; lift one magenta element per view.
- Write every headline as a question and rewrite the answer when the edge moves.
- Use magenta text only on white and only large or bold; use ink on the surface tint.
- Style every control explicitly, square, with a violet focus line.
- Give each sheet the 24px ruling and four registration ticks.

### Don't

- Don't add a stat band, a top bar, a footer or eyebrow labels.
- Don't use gradients, glass or borders; the ruling is a hairline pattern.
- Don't add a second accent beside the magenta edge.
- Don't put magenta body text on the #F0ECFF surface (4.41:1).
- Don't round a rectangle; the dots are the only round things.
- Don't put emoji on buttons.

### Accessibility

AA and better: ink #1A1030 is 18.1:1 on white; muted #5A4F7A is 7.4:1 on white and 6.4:1 on #F0ECFF; violet #4A22C8 is 8.9:1 on white; magenta #D2008B is 5.1:1 on white and the button label white on magenta is 5.1:1, but magenta on #F0ECFF is 4.41:1 so it only carries large bold readouts there. Focus is a 3px violet outline at 3px offset. The dots are role=slider buttons with aria-valuetext and arrow-key control.

### Usage Context

Operations and review consoles, planning and capacity tools, calculators, reports and explainers where one relation (A x B = C) is the point, and any product that should read as a measuring instrument.

## Imagery Direction

### Pairs With

bluework

### Art Style Id

en-019efa6f-e618-7a52-9864-a51c9bfb51aa

### Summary

Bluework's orthographic engineering line drawing regraded to violet ink on white: a top-down drafting table with rule, dividers, slide rule and French curve, and the alidade as the one magenta part. The plate sits under a 40% white wash so the headline stays quiet and readable.

### Subjects

- a top-down drafting table with rule, dividers and slide rule
- a French curve and a pair of dividers on a ruled sheet
- the alidade laid across the table as one magenta part

### Usage

One full-bleed hero per landing: the drafting-table plate painted with var(--hero-image) on the first sheet, background-position centre, under a flat 40% white wash. Later sheets carry no illustration; the scales are the picture.

### Avoid

Graphite-gray plates, blue accents, glow, gradients, photography, people, text in the plate and any second magenta element.

---
version: "alpha"
name: "Alidade"
description: "Alidade is a measurement workspace for review queues, drawn as a nomogram atlas. Each sheet carries three parallel log scales in violet ink on white, and one straight magenta edge laid across them: the line is the readout and the page is..."
colors:
  bg: "#FFFFFF"
  surface: "#F0ECFF"
  text: "#1A1030"
  muted: "#5A4F7A"
  border: "#CFC6F0"
  accent: "#D2008B"
  on_accent: "#FFFFFF"
  success: "#0A7A55"
  warning: "#8A5A00"
  error: "#B0102A"
  info: "#4A22C8"
  scale: "#4A22C8"
typography:
  headline-lg:
    fontFamily: "B612"
    fontSize: "2.075rem"
    fontWeight: 700
    lineHeight: 1.1
    letterSpacing: "-0.02em"
  headline-md:
    fontFamily: "B612"
    fontSize: "1.66rem"
    fontWeight: 600
    lineHeight: 1.15
    letterSpacing: "-0.02em"
  body-md:
    fontFamily: "B612"
    fontSize: "17px"
    fontWeight: 400
    lineHeight: 1.5
    letterSpacing: "-0.02em"
  label-md:
    fontFamily: "B612 (tabular figures)"
    fontSize: "0.75rem"
    fontWeight: 600
    lineHeight: 1
    letterSpacing: "0.08em"
rounded:
  none: "0px"
  md: "0px"
  lg: "0px"
  full: "9999px"
spacing:
  base: "8px"
  xs: "4px"
  sm: "8px"
  md: "12px"
  lg: "16px"
  xl: "24px"
  2xl: "32px"
  3xl: "48px"
  4xl: "72px"
  step-8: "96px"
components:
  color-reference-bg:
    backgroundColor: "{colors.bg}"
  color-reference-surface:
    backgroundColor: "{colors.surface}"
  color-reference-text:
    backgroundColor: "{colors.text}"
  color-reference-muted:
    backgroundColor: "{colors.muted}"
  color-reference-border:
    backgroundColor: "{colors.border}"
  color-reference-accent:
    backgroundColor: "{colors.accent}"
  color-reference-on_accent:
    backgroundColor: "{colors.on_accent}"
  color-reference-success:
    backgroundColor: "{colors.success}"
  color-reference-warning:
    backgroundColor: "{colors.warning}"
  color-reference-error:
    backgroundColor: "{colors.error}"
  color-reference-info:
    backgroundColor: "{colors.info}"
  color-reference-scale:
    backgroundColor: "{colors.scale}"
  button-primary:
    backgroundColor: "{colors.accent}"
    textColor: "{colors.on_accent}"
    typography: "{typography.label-md}"
    rounded: "{rounded.md}"
    padding: "{spacing.md}"
  card-surface:
    backgroundColor: "{colors.surface}"
    textColor: "{colors.text}"
    rounded: "{rounded.md}"
    padding: "{spacing.md}"
  input-default:
    backgroundColor: "{colors.surface}"
    textColor: "{colors.text}"
    rounded: "{rounded.md}"
    height: "44px"
---

# Alidade

## Overview

Alidade is a measurement workspace for review queues, drawn as a nomogram atlas. Each sheet carries three parallel log scales in violet ink on white, and one straight magenta edge laid across them: the line is the readout and the page is the chart. Drag either end of the edge, or the ring on the middle scale to solve the right-hand one, and the sentence under the chart rewrites itself. It is the descendant of Graticule that keeps the measurement-workspace idea, the 24px ruling and the four registration ticks, and swaps the graphite table for white sheets and a single violet ink and magenta pair.

### Values

- The straight edge is the interface: every claim is read off one line across real log scales.
- One ink and one line: scales in violet #4A22C8, the edge in magenta #D2008B, nothing else competes.
- A sentence for every reading: the headline of each sheet is a question and the answer is rewritten live.
- Cockpit legibility: B612 is set large, open and tabular so a number is read at a glance.
- Flat and square: sheets, wells and buttons are radius 0; only the dots on the edge are round.

### Anti-Values

- Stat bands with invented totals, and tables standing in for a chart.
- Top bars, footers, eyebrows and card indexes around the sheets.
- Gradients, glass and photographic backdrops under copy.
- A second accent colour, or magenta on the pale surface at body size.
- Borders and hairline card frames.

### Visual Character

- White sheets with a faint 24px violet ruling and four corner registration ticks.
- Three vertical log scales per sheet: major ticks 2.5px, minor ticks 1px, tabular labels in violet.
- One magenta straight edge with round dots on the outer scales and a ring on the middle one.
- B612 only, 700 for headlines and readouts, 400 for prose.
- A drafting-table plate in violet ink on white for the hero, with the alidade as the one magenta part.
- Flat square wells in #F0ECFF, a violet underline for focus.

### Lineage

> Descendant of Graticule (en-019efa7c-5133-7f82-a6af-bce556fd39fd). It keeps the measurement-workspace concept, the 24px ruling, the registration ticks and the single lifted datum, and replaces the graphite ground and blue datum with white sheets, violet scales and a magenta edge, the stat band and card grid with a three-sheet nomogram, and the Space Grotesk and IBM Plex pair with B612.

## Colors

Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.

| Token | Value |
|-------|-------|
| bg | `#FFFFFF` |
| surface | `#F0ECFF` |
| text | `#1A1030` |
| muted | `#5A4F7A` |
| border | `#CFC6F0` |
| accent | `#D2008B` |
| on_accent | `#FFFFFF` |
| success | `#0A7A55` |
| warning | `#8A5A00` |
| error | `#B0102A` |
| info | `#4A22C8` |
| scale | `#4A22C8` |

## Typography

Load the fonts from Google Fonts: https://fonts.googleapis.com/css2?family=B612:wght@400;700&display=swap

- **Headline-Lg**: B612, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: B612, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: B612, 17px, weight 400, line-height 1.5.
- **Label-Md**: B612 (tabular figures), 0.75rem, weight 600, line-height 1.

## Layout

### Spacing Tokens

- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `12px`
- **Lg**: `16px`
- **Xl**: `24px`
- **2xl**: `32px`
- **3xl**: `48px`
- **4xl**: `72px`
- **Step-8**: `96px`

### Grid

- **Type**: sheet atlas
- **Max Width**: 1240px content, centred above 1440px
- **Gutter**: clamp(20px, 5vw, 72px)
- **Column Behavior**: Heads use minmax(0,7fr) minmax(0,5fr); element lists use minmax(0,1fr) columns; every grid child has min-width:0.

### Whitespace

- **Section Gap**: clamp(48px, 7vw, 96px) of sheet padding
- **Card Gap**: no cards; 16 to 48px between groups
- **Content Padding**: content aligns to the grid edge, clear of the corner ticks
- **Approach**: White paper and space do the separating; the surface band is the only second tone.

### Density

- **Default**: comfortable
- **Comfortable**: {"button_height":"52px","input_height":"52px","row_height":"56px table rows"}

### Responsive

Phones (390px) stack heads to one column, keep the chart full width with scale labels at 14.5px and hide non-essential table columns. Tablets (601 to 1199px) keep two-column heads with their own spacing. Above 1440px the content caps and centres; only the hero sheet is full bleed.

### Breakpoints

- **Mobile**: 390px
- **Phone Max**: 600px
- **Tablet**: 601 to 1199px
- **Desktop**: 1280px
- **Ultrawide**: 2560px

## Elevation & Depth

### Shadows

- **Lift**: 0 18px 36px -14px rgba(74,34,200,0.4), only on an open menu, dialog or toast
- **None**: everything else is flat

## Shapes

### Rounded

- **None**: `0px`
- **Md**: `0px`
- **Lg**: `0px`
- **Full**: `9999px`

### Surfaces

- **Treatment**: white-sheet-on-ruling
- **Material**: Plain white sheets carrying a faint 24px ruling in violet ink and four corner registration ticks; surface #F0ECFF wells and bands where a sheet needs a second tone. No cards, no photographs under copy.
- **Card Style**: No cards. Scales, readings and sentences sit on the sheet, parted by space and a surface band.
- **Bg Pattern**: 24px violet ruling at 8% opacity

### Borders

- **Default Width**: 0
- **Style**: none
- **Character**: No borders on controls or panels. The ink lines that exist are the scales themselves, the magenta straight edge and the four corner registration ticks of each sheet. Focus is a 3px violet outline at 3px offset; a focused well draws a 3px violet line under itself.

## Components

### Composition

- Build every sheet around one nomogram: three parallel log scales and one straight edge across them.
- Give each sheet one question as its headline and one sentence that answers it, rewritten as the edge moves.
- Sheets run in order and each is its own full-height plate; there is no top bar and no footer.
- Keep sections free of cards: readings, scales and sentences sit on the sheet, parted by space and one surface band.

### Hierarchy

- Display and sheet titles in B612 700 at -0.02em: 58px for the first headline on desktop, 36px for sheet titles.
- Prose in B612 400 at 17px, in two tones: the claim in ink, the explanation in muted.
- Readouts in B612 700 with tabular figures, magenta on white only.
- Scale labels at 14.5 to 17px in violet, aligned to their ticks.

### Density

Calm sheet density: 48 to 96px of padding above and below each sheet, one button per sheet at most, prose held to about 46 characters.

### Signature Patterns

- The straight edge: one magenta line across three log scales; its ends are dots, its middle a ring, and moving any of them rewrites the readouts and the sentence.
- The ruled sheet: a 24px violet ruling and four corner registration ticks on every sheet.
- The datum: exactly one magenta element is lifted per view, the edge or the active row.
- Log scales with major and minor ticks: every number sits on a real logarithmic ruler.

### Interaction

- Drag an end of the edge, or press an arrow key on a focused dot (Shift for a larger step).
- Drag the middle ring to solve the right-hand scale instead.
- Links draw a 2px magenta line under the word from the left on hover.

## shadcn/ui Usage

When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.

DESIGN.md with shadcn: `/language/en-01a101b7-01eb-7ac0-a7de-0869886ace6b/DESIGN.with-shadcn.md`.

Machine-readable companions for automation: `/language/en-01a101b7-01eb-7ac0-a7de-0869886ace6b/shadcn.json` (registry theme), `/language/en-01a101b7-01eb-7ac0-a7de-0869886ace6b/shadcn-components.md` (component recipes) and `/language/en-01a101b7-01eb-7ac0-a7de-0869886ace6b/shadcn-shots.json` (preview shots). The human-facing handoff is still DESIGN.md with shadcn.

Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.

Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table

Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.

## Do's and Don'ts

- Do Lay one straight edge across three real log scales and let the sentence answer it.
- Do Keep scales in violet ink and the edge in magenta; lift one magenta element per view.
- Do Write every headline as a question and rewrite the answer when the edge moves.
- Do Use magenta text only on white and only large or bold; use ink on the surface tint.
- Do Style every control explicitly, square, with a violet focus line.
- Do Give each sheet the 24px ruling and four registration ticks.
- Don't Don't add a stat band, a top bar, a footer or eyebrow labels.
- Don't Don't use gradients, glass or borders; the ruling is a hairline pattern.
- Don't Don't add a second accent beside the magenta edge.
- Don't Don't put magenta body text on the #F0ECFF surface (4.41:1).
- Don't Don't round a rectangle; the dots are the only round things.
- Don't Don't put emoji on buttons.

### Accessibility

AA and better: ink #1A1030 is 18.1:1 on white; muted #5A4F7A is 7.4:1 on white and 6.4:1 on #F0ECFF; violet #4A22C8 is 8.9:1 on white; magenta #D2008B is 5.1:1 on white and the button label white on magenta is 5.1:1, but magenta on #F0ECFF is 4.41:1 so it only carries large bold readouts there. Focus is a 3px violet outline at 3px offset. The dots are role=slider buttons with aria-valuetext and arrow-key control.

### Usage Context

Operations and review consoles, planning and capacity tools, calculators, reports and explainers where one relation (A x B = C) is the point, and any product that should read as a measuring instrument.

## Imagery Direction

### Pairs With

bluework

### Art Style Id

en-019efa6f-e618-7a52-9864-a51c9bfb51aa

### Summary

Bluework's orthographic engineering line drawing regraded to violet ink on white: a top-down drafting table with rule, dividers, slide rule and French curve, and the alidade as the one magenta part. The plate sits under a 40% white wash so the headline stays quiet and readable.

### Subjects

- a top-down drafting table with rule, dividers and slide rule
- a French curve and a pair of dividers on a ruled sheet
- the alidade laid across the table as one magenta part

### Usage

One full-bleed hero per landing: the drafting-table plate painted with var(--hero-image) on the first sheet, background-position centre, under a flat 40% white wash. Later sheets carry no illustration; the scales are the picture.

### Avoid

Graphite-gray plates, blue accents, glow, gradients, photography, people, text in the plate and any second magenta element.

```json
{
  "$schema": "https://ui.shadcn.com/schema/registry-item.json",
  "name": "alidade",
  "type": "registry:theme",
  "title": "Alidade shadcn Theme",
  "cssVars": {
    "theme": {},
    "light": {
      "background": "#FFFFFF",
      "foreground": "#1A1030",
      "card": "#F0ECFF",
      "card-foreground": "#1A1030",
      "popover": "#F0ECFF",
      "popover-foreground": "#1A1030",
      "primary": "#1A1030",
      "primary-foreground": "#ffffff",
      "secondary": "#f4f4f5",
      "secondary-foreground": "#111111",
      "muted": "#5A4F7A",
      "muted-foreground": "#1A1030",
      "accent": "#D2008B",
      "accent-foreground": "#ffffff",
      "destructive": "#B0102A",
      "border": "#CFC6F0",
      "input": "#CFC6F0",
      "ring": "#D2008B",
      "chart-1": "#1A1030",
      "chart-2": "#f4f4f5",
      "chart-3": "#D2008B",
      "chart-4": "#0A7A55",
      "chart-5": "#8A5A00",
      "sidebar": "#F0ECFF",
      "sidebar-foreground": "#1A1030",
      "sidebar-primary": "#1A1030",
      "sidebar-primary-foreground": "#ffffff",
      "sidebar-accent": "#4A22C8",
      "sidebar-accent-foreground": "#ffffff",
      "sidebar-border": "#CFC6F0",
      "sidebar-ring": "#D2008B",
      "radius": "0px"
    },
    "dark": {
      "background": "#0f1115",
      "foreground": "#f8fafc",
      "card": "#181b22",
      "card-foreground": "#f8fafc",
      "popover": "#181b22",
      "popover-foreground": "#f8fafc",
      "primary": "#1A1030",
      "primary-foreground": "#ffffff",
      "secondary": "#252a33",
      "secondary-foreground": "#f8fafc",
      "muted": "#252a33",
      "muted-foreground": "#a1a1aa",
      "accent": "#D2008B",
      "accent-foreground": "#ffffff",
      "destructive": "#B0102A",
      "border": "#303642",
      "input": "#303642",
      "ring": "#D2008B",
      "chart-1": "#1A1030",
      "chart-2": "#f4f4f5",
      "chart-3": "#D2008B",
      "chart-4": "#0A7A55",
      "chart-5": "#8A5A00",
      "sidebar": "#181b22",
      "sidebar-foreground": "#f8fafc",
      "sidebar-primary": "#1A1030",
      "sidebar-primary-foreground": "#ffffff",
      "sidebar-accent": "#D2008B",
      "sidebar-accent-foreground": "#ffffff",
      "sidebar-border": "#303642",
      "sidebar-ring": "#D2008B",
      "radius": "0px"
    }
  },
  "meta": {
    "source": "katagami",
    "languageId": "en-01a101b7-01eb-7ac0-a7de-0869886ace6b",
    "slug": "alidade",
    "componentManifest": [
      "button",
      "card",
      "input",
      "textarea",
      "select",
      "dialog",
      "sheet",
      "tabs",
      "badge",
      "separator",
      "checkbox",
      "switch",
      "slider",
      "tooltip",
      "dropdown-menu",
      "table"
    ],
    "installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
    "nativeTokenNames": {
      "colors": [
        "accent",
        "bg",
        "border",
        "error",
        "info",
        "muted",
        "on_accent",
        "scale",
        "success",
        "surface",
        "text",
        "warning"
      ],
      "derived": [
        "lift",
        "pressed_accent",
        "row_tint",
        "ruling"
      ],
      "typography": [
        "base_size",
        "body_font",
        "body_weight",
        "button_weight",
        "google_fonts_url",
        "heading_font",
        "heading_transform",
        "heading_weight",
        "letter_spacing",
        "line_height",
        "mono_font",
        "scale"
      ],
      "radii": [
        "full",
        "lg",
        "md",
        "none"
      ],
      "shadows": [
        "lift",
        "none"
      ],
      "spacing": [
        "base",
        "scale"
      ],
      "surfaces": [
        "bg_pattern",
        "card_style",
        "material",
        "treatment"
      ],
      "borders": [
        "character",
        "default_width",
        "style"
      ],
      "motion": [
        "duration",
        "easing",
        "philosophy"
      ],
      "controls": [
        "height",
        "radius",
        "well_height"
      ]
    }
  }
}
```
