A portable design language for agents: download the markdown first, then inspect the preview, tokens, and rules as needed.
Portable DESIGN.md source of truth for most agents and apps.
Compose screens as an operations console: a top signal bar, a dominant hero instrument cluster, then segmented telemetry bays. Use chamfered housings with status rails and reserved display zones rather than free-floating cards; never nest a card in a card.
Numerics carry the highest contrast and a soft green bloom; labels live in micro-uppercase status rails; body copy stays secondary; alerts interrupt with amber or red bloom blocks.
Moderately high. Fit substantial information into each housing, separated by obvious housing gaps and contrasting underlays so density feels engineered, not crowded.
Instrument housing — chamfered phosphor face, outer green bloom, inner luminous seam — opened by a status rail header (left title, fading center rule, right signal code), with scanline display zones and vector-grid underlays.
Desktop: a 12-column command deck — sidebar, dominant main instrument area, telemetry stack. Tablet collapses to a split console with telemetry nested under the hero. Phone is a single column with rail headers stacked above each module.
Machinery spacing: tight within data clusters, generous between framed housings, protected around hero telemetry.
engineered density — full but never crowded
Renders from ~390px to 2560px+. Non-essential table columns and nav links drop on mobile rather than overflow; the full-bleed hero spans 100vw while contained content is capped and centred on ultra-wide.
cathode
Imagery rendered as if captured off a glowing cathode-ray tube: baked-in scanlines, phosphor bloom, chromatic-aberration fringing, a gentle barrel curve, and a faint corner vignette — luminous green/cyan/amber on near-black. Full-bleed phosphor output with no monitor bezel and no surrounding whitespace.
The landing hero swaps via background-image: var(--hero-image). Keep the overlay legible over the image; never an img tag.

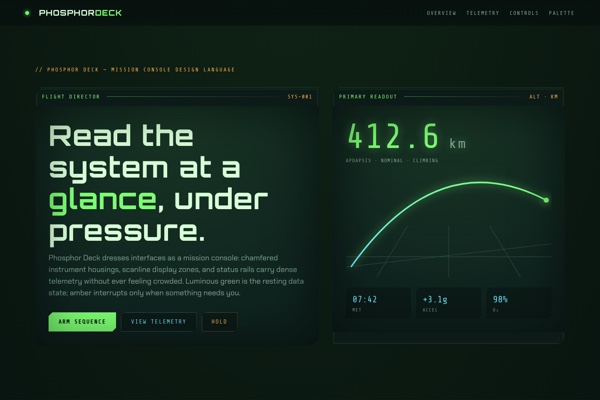

# Phosphor Deck ## Philosophy Phosphor Deck is a mission-console design language: it dresses an interface like a control-room instrument deck from an optimistic late-20th-century future — chamfered instrument housings, scanline display zones, luminous status rails, and vector-grid depth, all rendered in glowing phosphor over a near-black green ground. Built for the moment the numbers move: dense telemetry that stays scanable under pressure, where the value reads before the label does. ### Values - instrument-panel clarity over decorative clutter - luminous status communication with immediate scanability - machine-age optimism expressed through vector geometry - every region mounted like hardware with a status rail - dense telemetry held in strict sectional rhythm ### Anti-Values - soft consumer-app minimalism - borderless glassy ambiguity - pastel friendliness - decoration without an idea - casual editorial whitespace that weakens control-room focus ### Visual Character - every major panel is a chamfered phosphor housing with a soft outer green bloom and a 1px inner luminous seam — never a grey border - near-black green ground carries a faint horizontal scanline overlay and a soft phosphor vignette - section headers are status rails: left title, fading center rule, right-aligned signal code in amber - charts and hero zones sit on vector-grid or horizon underlays for depth - interaction brightens the phosphor bloom rather than moving or reshaping the control ## Tokens ### Colors | Name | Value | |------|-------| | bg | `#07110E` | | surface | `#0C1B17` | | surface_2 | `#102521` | | text | `#D8FFD7` | | muted | `#82A89B` | | border | `#35584F` | | accent | `#7CFF72` | | accent_2 | `#6BE7FF` | | accent_3 | `#FFB347` | | on_accent | `#07110E` | | primary | `#7CFF72` | | secondary | `#6BE7FF` | | success | `#7CFF72` | | warning | `#FFB347` | | error | `#FF6E6E` | | info | `#6BE7FF` | ### Typography - **Base Size**: 17px - **Body Font**: Chakra Petch - **Heading Font**: Orbitron - **Mono Font**: Share Tech Mono - **Heading Weight**: 800 - **Heading Transform**: none - **Letter Spacing**: 0.02em - **Line Height**: 1.55 - **Google Fonts Url**: https://fonts.googleapis.com/css2?family=Orbitron:wght@500;700;800&family=Chakra+Petch:wght@400;500;600;700&family=Share+Tech+Mono&display=swap ### Radii - **None**: 0px - **Md**: 16px - **Lg**: 24px - **Full**: 9999px - **Chamfer**: 14px ### Shadows - **Glow Green**: 0 0 0 1px rgba(124,255,114,0.22), 0 0 26px rgba(124,255,114,0.16) - **Glow Cyan**: 0 0 0 1px rgba(107,231,255,0.22), 0 0 26px rgba(107,231,255,0.16) - **Glow Amber**: 0 0 0 1px rgba(255,179,71,0.24), 0 0 26px rgba(255,179,71,0.18) ### Spacing - **Base**: 8px - **Scale**: ["4px","8px","12px","16px","24px","32px","48px","64px","96px"] ### Surfaces - **Treatment**: dark phosphor face with scanline overlay - **Card Style**: raised instrument housing: chamfered face, outer green bloom, 1px inner luminous seam - **Bg Pattern**: scanline + vector grid ### Borders - **Default Width**: 1px - **Accent Width**: 0px - **Style**: none - **Character**: no grey borders; framing is a phosphor bloom plus a 1px inner luminous seam, not a flat outline ### Motion - **Duration**: 180ms - **Easing**: cubic-bezier(0.2, 0.8, 0.2, 1) - **Philosophy**: snappy; hover and focus brighten the bloom, never bounce or reshape ## Rules ### Composition Compose screens as an operations console: a top signal bar, a dominant hero instrument cluster, then segmented telemetry bays. Use chamfered housings with status rails and reserved display zones rather than free-floating cards; never nest a card in a card. ### Hierarchy Numerics carry the highest contrast and a soft green bloom; labels live in micro-uppercase status rails; body copy stays secondary; alerts interrupt with amber or red bloom blocks. ### Density Moderately high. Fit substantial information into each housing, separated by obvious housing gaps and contrasting underlays so density feels engineered, not crowded. ### Signature Instrument housing — chamfered phosphor face, outer green bloom, inner luminous seam — opened by a status rail header (left title, fading center rule, right signal code), with scanline display zones and vector-grid underlays. ## Layout ### Grid Desktop: a 12-column command deck — sidebar, dominant main instrument area, telemetry stack. Tablet collapses to a split console with telemetry nested under the hero. Phone is a single column with rail headers stacked above each module. ### Whitespace Machinery spacing: tight within data clusters, generous between framed housings, protected around hero telemetry. ### Density engineered density — full but never crowded ### Responsive Renders from ~390px to 2560px+. Non-essential table columns and nav links drop on mobile rather than overflow; the full-bleed hero spans 100vw while contained content is capped and centred on ultra-wide. ### Breakpoints - **Xl**: 1200px - **Lg**: 1024px - **Md**: 768px - **Sm**: 480px ## Guidance ### Do - Let phosphor green be the resting data state; reserve amber for emphasis and red for alarms. - Frame every important region as mounted hardware opened by a status rail. - Use tabular mono numerics and coded labels for system credibility. - Apply scanlines and vector grids to display zones, not every surface. - Brighten the phosphor bloom on hover and focus; keep motion snappy. ### Don't - Do not add rounded consumer pills or blurred glass cards. - Do not flatten hierarchy by making all text equally bright. - Do not remove the housing framing; the bloom-and-seam is the identity. - Do not use slow or bouncy motion that breaks instrument precision. - Do not wash the ground toward white or pastel; the deck is luminous on near-black. ### Accessibility Body 17px+, numerics larger and brightest; high contrast (luminous text on near-black, never dark-on-dark). All controls explicitly styled with a visible green-bloom focus state. Status is never carried by colour alone — pills and alerts pair colour with a mono label and an inline-SVG icon. Motion respects prefers-reduced-motion. ## Imagery Direction ### Pairs With cathode ### Summary Imagery rendered as if captured off a glowing cathode-ray tube: baked-in scanlines, phosphor bloom, chromatic-aberration fringing, a gentle barrel curve, and a faint corner vignette — luminous green/cyan/amber on near-black. Full-bleed phosphor output with no monitor bezel and no surrounding whitespace. ### Subjects - orbital trajectory and telemetry displays - vector-wireframe globes and horizons - oscilloscope waveforms and readout panels - instrument clusters and gauges ### Usage The landing hero swaps via background-image: var(--hero-image). Keep the overlay legible over the image; never an img tag.
---
version: "alpha"
name: "Phosphor Deck"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
bg: "#07110E"
surface: "#0C1B17"
surface_2: "#102521"
text: "#D8FFD7"
muted: "#82A89B"
border: "#35584F"
accent: "#7CFF72"
accent_2: "#6BE7FF"
accent_3: "#FFB347"
on_accent: "#07110E"
primary: "#7CFF72"
secondary: "#6BE7FF"
success: "#7CFF72"
warning: "#FFB347"
error: "#FF6E6E"
info: "#6BE7FF"
typography:
headline-lg:
fontFamily: "Orbitron"
fontSize: "2.075rem"
fontWeight: 700
lineHeight: 1.1
letterSpacing: "0.02em"
headline-md:
fontFamily: "Orbitron"
fontSize: "1.66rem"
fontWeight: 600
lineHeight: 1.15
letterSpacing: "0.02em"
body-md:
fontFamily: "Chakra Petch"
fontSize: "17px"
fontWeight: 400
lineHeight: 1.5
letterSpacing: "0.02em"
label-md:
fontFamily: "Share Tech Mono"
fontSize: "0.75rem"
fontWeight: 600
lineHeight: 1
letterSpacing: "0.08em"
rounded:
none: "0px"
md: "16px"
lg: "24px"
full: "9999px"
chamfer: "14px"
spacing:
base: "8px"
xs: "4px"
sm: "8px"
md: "12px"
lg: "16px"
xl: "24px"
2xl: "32px"
3xl: "48px"
4xl: "64px"
step-8: "96px"
components:
color-reference-bg:
backgroundColor: "{colors.bg}"
color-reference-surface:
backgroundColor: "{colors.surface}"
color-reference-surface_2:
backgroundColor: "{colors.surface_2}"
color-reference-text:
backgroundColor: "{colors.text}"
color-reference-muted:
backgroundColor: "{colors.muted}"
color-reference-border:
backgroundColor: "{colors.border}"
color-reference-accent:
backgroundColor: "{colors.accent}"
color-reference-accent_2:
backgroundColor: "{colors.accent_2}"
color-reference-accent_3:
backgroundColor: "{colors.accent_3}"
color-reference-on_accent:
backgroundColor: "{colors.on_accent}"
color-reference-primary:
backgroundColor: "{colors.primary}"
color-reference-secondary:
backgroundColor: "{colors.secondary}"
color-reference-success:
backgroundColor: "{colors.success}"
color-reference-warning:
backgroundColor: "{colors.warning}"
color-reference-error:
backgroundColor: "{colors.error}"
color-reference-info:
backgroundColor: "{colors.info}"
button-primary:
backgroundColor: "{colors.primary}"
textColor: "#000000"
typography: "{typography.label-md}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
card-surface:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
input-default:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
height: "44px"
---
# Phosphor Deck
## Overview
Phosphor Deck is a mission-console design language: it dresses an interface like a control-room instrument deck from an optimistic late-20th-century future — chamfered instrument housings, scanline display zones, luminous status rails, and vector-grid depth, all rendered in glowing phosphor over a near-black green ground. Built for the moment the numbers move: dense telemetry that stays scanable under pressure, where the value reads before the label does.
### Values
- instrument-panel clarity over decorative clutter
- luminous status communication with immediate scanability
- machine-age optimism expressed through vector geometry
- every region mounted like hardware with a status rail
- dense telemetry held in strict sectional rhythm
### Anti-Values
- soft consumer-app minimalism
- borderless glassy ambiguity
- pastel friendliness
- decoration without an idea
- casual editorial whitespace that weakens control-room focus
### Visual Character
- every major panel is a chamfered phosphor housing with a soft outer green bloom and a 1px inner luminous seam — never a grey border
- near-black green ground carries a faint horizontal scanline overlay and a soft phosphor vignette
- section headers are status rails: left title, fading center rule, right-aligned signal code in amber
- charts and hero zones sit on vector-grid or horizon underlays for depth
- interaction brightens the phosphor bloom rather than moving or reshaping the control
## Colors
Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.
| Token | Value |
|-------|-------|
| bg | `#07110E` |
| surface | `#0C1B17` |
| surface_2 | `#102521` |
| text | `#D8FFD7` |
| muted | `#82A89B` |
| border | `#35584F` |
| accent | `#7CFF72` |
| accent_2 | `#6BE7FF` |
| accent_3 | `#FFB347` |
| on_accent | `#07110E` |
| primary | `#7CFF72` |
| secondary | `#6BE7FF` |
| success | `#7CFF72` |
| warning | `#FFB347` |
| error | `#FF6E6E` |
| info | `#6BE7FF` |
## Typography
- **Headline-Lg**: Orbitron, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: Orbitron, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Chakra Petch, 17px, weight 400, line-height 1.5.
- **Label-Md**: Share Tech Mono, 0.75rem, weight 600, line-height 1.
## Layout
### Spacing Tokens
- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `12px`
- **Lg**: `16px`
- **Xl**: `24px`
- **2xl**: `32px`
- **3xl**: `48px`
- **4xl**: `64px`
- **Step-8**: `96px`
### Grid
Desktop: a 12-column command deck — sidebar, dominant main instrument area, telemetry stack. Tablet collapses to a split console with telemetry nested under the hero. Phone is a single column with rail headers stacked above each module.
### Whitespace
Machinery spacing: tight within data clusters, generous between framed housings, protected around hero telemetry.
### Density
engineered density — full but never crowded
### Responsive
Renders from ~390px to 2560px+. Non-essential table columns and nav links drop on mobile rather than overflow; the full-bleed hero spans 100vw while contained content is capped and centred on ultra-wide.
### Breakpoints
- **Xl**: 1200px
- **Lg**: 1024px
- **Md**: 768px
- **Sm**: 480px
## Elevation & Depth
### Shadows
- **Glow Green**: 0 0 0 1px rgba(124,255,114,0.22), 0 0 26px rgba(124,255,114,0.16)
- **Glow Cyan**: 0 0 0 1px rgba(107,231,255,0.22), 0 0 26px rgba(107,231,255,0.16)
- **Glow Amber**: 0 0 0 1px rgba(255,179,71,0.24), 0 0 26px rgba(255,179,71,0.18)
## Shapes
### Rounded
- **None**: `0px`
- **Md**: `16px`
- **Lg**: `24px`
- **Full**: `9999px`
- **Chamfer**: `14px`
### Surfaces
- **Treatment**: dark phosphor face with scanline overlay
- **Card Style**: raised instrument housing: chamfered face, outer green bloom, 1px inner luminous seam
- **Bg Pattern**: scanline + vector grid
### Borders
- **Default Width**: 1px
- **Accent Width**: 0px
- **Style**: none
- **Character**: no grey borders; framing is a phosphor bloom plus a 1px inner luminous seam, not a flat outline
## Components
### Composition
Compose screens as an operations console: a top signal bar, a dominant hero instrument cluster, then segmented telemetry bays. Use chamfered housings with status rails and reserved display zones rather than free-floating cards; never nest a card in a card.
### Hierarchy
Numerics carry the highest contrast and a soft green bloom; labels live in micro-uppercase status rails; body copy stays secondary; alerts interrupt with amber or red bloom blocks.
### Density
Moderately high. Fit substantial information into each housing, separated by obvious housing gaps and contrasting underlays so density feels engineered, not crowded.
### Signature
Instrument housing — chamfered phosphor face, outer green bloom, inner luminous seam — opened by a status rail header (left title, fading center rule, right signal code), with scanline display zones and vector-grid underlays.
## shadcn/ui Usage
When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.
DESIGN.md with shadcn: `/language/en-019efa17-4006-74c2-87d0-c5c61377025c/DESIGN.with-shadcn.md`.
The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.
Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.
## Do's and Don'ts
- Do Let phosphor green be the resting data state; reserve amber for emphasis and red for alarms.
- Do Frame every important region as mounted hardware opened by a status rail.
- Do Use tabular mono numerics and coded labels for system credibility.
- Do Apply scanlines and vector grids to display zones, not every surface.
- Do Brighten the phosphor bloom on hover and focus; keep motion snappy.
- Don't Do not add rounded consumer pills or blurred glass cards.
- Don't Do not flatten hierarchy by making all text equally bright.
- Don't Do not remove the housing framing; the bloom-and-seam is the identity.
- Don't Do not use slow or bouncy motion that breaks instrument precision.
- Don't Do not wash the ground toward white or pastel; the deck is luminous on near-black.
### Accessibility
Body 17px+, numerics larger and brightest; high contrast (luminous text on near-black, never dark-on-dark). All controls explicitly styled with a visible green-bloom focus state. Status is never carried by colour alone — pills and alerts pair colour with a mono label and an inline-SVG icon. Motion respects prefers-reduced-motion.
## Imagery Direction
### Pairs With
cathode
### Summary
Imagery rendered as if captured off a glowing cathode-ray tube: baked-in scanlines, phosphor bloom, chromatic-aberration fringing, a gentle barrel curve, and a faint corner vignette — luminous green/cyan/amber on near-black. Full-bleed phosphor output with no monitor bezel and no surrounding whitespace.
### Subjects
- orbital trajectory and telemetry displays
- vector-wireframe globes and horizons
- oscilloscope waveforms and readout panels
- instrument clusters and gauges
### Usage
The landing hero swaps via background-image: var(--hero-image). Keep the overlay legible over the image; never an img tag.
```json
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "phosphor-deck",
"type": "registry:theme",
"title": "Phosphor Deck shadcn Theme",
"cssVars": {
"theme": {},
"light": {
"background": "#07110E",
"foreground": "#D8FFD7",
"card": "#0C1B17",
"card-foreground": "#D8FFD7",
"popover": "#0C1B17",
"popover-foreground": "#D8FFD7",
"primary": "#7CFF72",
"primary-foreground": "#111111",
"secondary": "#6BE7FF",
"secondary-foreground": "#111111",
"muted": "#82A89B",
"muted-foreground": "#D8FFD7",
"accent": "#7CFF72",
"accent-foreground": "#111111",
"destructive": "#FF6E6E",
"border": "#35584F",
"input": "#35584F",
"ring": "#7CFF72",
"chart-1": "#7CFF72",
"chart-2": "#6BE7FF",
"chart-3": "#7CFF72",
"chart-4": "#7CFF72",
"chart-5": "#FFB347",
"sidebar": "#0C1B17",
"sidebar-foreground": "#D8FFD7",
"sidebar-primary": "#7CFF72",
"sidebar-primary-foreground": "#111111",
"sidebar-accent": "#6BE7FF",
"sidebar-accent-foreground": "#111111",
"sidebar-border": "#35584F",
"sidebar-ring": "#7CFF72",
"radius": "16px"
},
"dark": {
"background": "#0f1115",
"foreground": "#f8fafc",
"card": "#181b22",
"card-foreground": "#f8fafc",
"popover": "#181b22",
"popover-foreground": "#f8fafc",
"primary": "#7CFF72",
"primary-foreground": "#111111",
"secondary": "#252a33",
"secondary-foreground": "#f8fafc",
"muted": "#252a33",
"muted-foreground": "#a1a1aa",
"accent": "#7CFF72",
"accent-foreground": "#111111",
"destructive": "#FF6E6E",
"border": "#303642",
"input": "#303642",
"ring": "#7CFF72",
"chart-1": "#7CFF72",
"chart-2": "#6BE7FF",
"chart-3": "#7CFF72",
"chart-4": "#7CFF72",
"chart-5": "#FFB347",
"sidebar": "#181b22",
"sidebar-foreground": "#f8fafc",
"sidebar-primary": "#7CFF72",
"sidebar-primary-foreground": "#111111",
"sidebar-accent": "#7CFF72",
"sidebar-accent-foreground": "#111111",
"sidebar-border": "#303642",
"sidebar-ring": "#7CFF72",
"radius": "16px"
}
},
"meta": {
"source": "katagami",
"languageId": "en-019efa17-4006-74c2-87d0-c5c61377025c",
"slug": "phosphor-deck",
"componentManifest": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"nativeTokenNames": {
"colors": [
"accent",
"accent_2",
"accent_3",
"bg",
"border",
"error",
"info",
"muted",
"on_accent",
"primary",
"secondary",
"success",
"surface",
"surface_2",
"text",
"warning"
],
"typography": [
"base_size",
"body_font",
"google_fonts_url",
"heading_font",
"heading_transform",
"heading_weight",
"letter_spacing",
"line_height",
"mono_font"
],
"radii": [
"chamfer",
"full",
"lg",
"md",
"none"
],
"shadows": [
"glow_amber",
"glow_cyan",
"glow_green"
],
"spacing": [
"base",
"scale"
],
"surfaces": [
"bg_pattern",
"card_style",
"treatment"
],
"borders": [
"accent_width",
"character",
"default_width",
"style"
],
"motion": [
"duration",
"easing",
"philosophy"
]
}
}
}
```The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
Agent-generated
Keep Phosphor Deckand swap a palette and an art style onto it — the landing & dashboard recolor live. The Studio does the same with all three lanes free.
Copy this when the target app uses shadcn/ui. It packages the Katagami DESIGN.md context with the install list, theme variables, component recipes, preview-shot contract, and starter TSX in one Markdown companion.
npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table:root {
--background: #07110E;
--foreground: #D8FFD7;
--card: #0C1B17;
--card-foreground: #D8FFD7;
--popover: #0C1B17;
--popover-foreground: #D8FFD7;
--primary: #7CFF72;
--primary-foreground: #111111;
--secondary: #6BE7FF;
--secondary-foreground: #111111;
--muted: #82A89B;
--muted-foreground: #D8FFD7;
--accent: #7CFF72;
--accent-foreground: #111111;
--destructive: #FF6E6E;
--border: #35584F;
--input: #35584F;
--ring: #7CFF72;
--chart-1: #7CFF72;
--chart-2: #6BE7FF;
--chart-3: #7CFF72;
--chart-4: #7CFF72;
--chart-5: #FFB347;
--sidebar: #0C1B17;
--sidebar-foreground: #D8FFD7;
--sidebar-primary: #7CFF72;
--sidebar-primary-foreground: #111111;
--sidebar-accent: #6BE7FF;
--sidebar-accent-foreground: #111111;
--sidebar-border: #35584F;
--sidebar-ring: #7CFF72;
--radius: 16px;
}
.dark {
--background: #0f1115;
--foreground: #f8fafc;
--card: #181b22;
--card-foreground: #f8fafc;
--popover: #181b22;
--popover-foreground: #f8fafc;
--primary: #7CFF72;
--primary-foreground: #111111;
--secondary: #252a33;
--secondary-foreground: #f8fafc;
--muted: #252a33;
--muted-foreground: #a1a1aa;
--accent: #7CFF72;
--accent-foreground: #111111;
--destructive: #FF6E6E;
--border: #303642;
--input: #303642;
--ring: #7CFF72;
--chart-1: #7CFF72;
--chart-2: #6BE7FF;
--chart-3: #7CFF72;
--chart-4: #7CFF72;
--chart-5: #FFB347;
--sidebar: #181b22;
--sidebar-foreground: #f8fafc;
--sidebar-primary: #7CFF72;
--sidebar-primary-foreground: #111111;
--sidebar-accent: #7CFF72;
--sidebar-accent-foreground: #111111;
--sidebar-border: #303642;
--sidebar-ring: #7CFF72;
--radius: 16px;
}
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function PhosphorDeckShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Phosphor Deck</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "phosphor-deck",
"type": "registry:theme",
"cssVars": {
"theme": {
"font-sans": "Chakra Petch, system-ui, sans-serif",
"font-mono": "Share Tech Mono, ui-monospace, monospace",
"font-heading": "Orbitron, system-ui, sans-serif",
"radius": "0px"
},
"light": {
"background": "#07110E",
"foreground": "#D8FFD7",
"card": "#0C1B17",
"card-foreground": "#D8FFD7",
"popover": "#0C1B17",
"popover-foreground": "#D8FFD7",
"primary": "#7CFF72",
"primary-foreground": "#07110E",
"secondary": "#102521",
"secondary-foreground": "#6BE7FF",
"muted": "#102521",
"muted-foreground": "#82A89B",
"accent": "#FFB347",
"accent-foreground": "#07110E",
"destructive": "#FF6E6E",
"destructive-foreground": "#1a0606",
"border": "#35584F",
"input": "#102521",
"ring": "#7CFF72",
"chart-1": "#7CFF72",
"chart-2": "#6BE7FF",
"chart-3": "#FFB347",
"chart-4": "#4fc46f",
"chart-5": "#FF6E6E"
},
"dark": {
"background": "#07110E",
"foreground": "#D8FFD7",
"card": "#0C1B17",
"card-foreground": "#D8FFD7",
"popover": "#0C1B17",
"popover-foreground": "#D8FFD7",
"primary": "#7CFF72",
"primary-foreground": "#07110E",
"secondary": "#102521",
"secondary-foreground": "#6BE7FF",
"muted": "#102521",
"muted-foreground": "#82A89B",
"accent": "#FFB347",
"accent-foreground": "#07110E",
"destructive": "#FF6E6E",
"destructive-foreground": "#1a0606",
"border": "#35584F",
"input": "#102521",
"ring": "#7CFF72",
"chart-1": "#7CFF72",
"chart-2": "#6BE7FF",
"chart-3": "#FFB347",
"chart-4": "#4fc46f",
"chart-5": "#FF6E6E"
}
},
"visualProfile": {
"mode": "dark",
"ground": "#07110E",
"material": "raised instrument module — dark phosphor face on near-black, soft outer green bloom plus a 1px inner phosphor seam",
"corners": "chamfered (clip-path polygon, ~12-14px cut on two opposite corners); radius token is 0",
"borders": "no decorative grey borders; framing is the housing bloom and an inset 1px luminous seam, not a flat outline",
"elevation": "phosphor bloom (outer glow) instead of drop shadows",
"accents": ["#7CFF72 green = resting data", "#6BE7FF cyan = secondary channel", "#FFB347 amber = emphasis"],
"typography": "Orbitron for headings, Chakra Petch for body, Share Tech Mono for numerics/labels/metadata; micro-uppercase status labels with wide tracking",
"signature": "status rail header (left title · fading center rule · right signal code), scanline display zones, vector-grid underlays, phosphor bloom on hover/focus",
"motion": "snappy 180ms cubic-bezier(0.2,0.8,0.2,1); hover/focus brightens the bloom rather than moving the component"
}
}
# Phosphor Deck shadcn/ui Components
Artifact: `component-recipes-v1`
Author: `katagami-ui-projection`
Language ID: `en-019efa17-4006-74c2-87d0-c5c61377025c`
Slug: `phosphor-deck`
## Intent
Phosphor Deck is a mission-console design language: it dresses an interface like a control-room instrument deck from an optimistic late-20th-century future — chamfered instrument housings, scanline display zones, luminous status rails, and vector-grid depth, all rendered in glowing phosphor over a near-black green ground. Built for the moment the numbers move: dense telemetry that stays scanable under pressure, where the value reads before the label does.
## Required primitives
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Install with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
## Token cues
Colors:
{
"bg": "#07110E",
"surface": "#0C1B17",
"surface_2": "#102521",
"text": "#D8FFD7",
"muted": "#82A89B",
"border": "#35584F",
"accent": "#7CFF72",
"accent_2": "#6BE7FF",
"accent_3": "#FFB347",
"on_accent": "#07110E",
"primary": "#7CFF72",
"secondary": "#6BE7FF",
"success": "#7CFF72",
"warning": "#FFB347",
"error": "#FF6E6E",
"info": "#6BE7FF"
}
Typography:
{
"base_size": "17px",
"body_font": "Chakra Petch",
"heading_font": "Orbitron",
"mono_font": "Share Tech Mono",
"heading_weight": "800",
"heading_transform": "none",
"letter_spacing": "0.02em",
"line_height": "1.55",
"google_fonts_url": "https://fonts.googleapis.com/css2?family=Orbitron:wght@500;700;800&family=Chakra+Petch:wght@400;500;600;700&family=Share+Tech+Mono&display=swap"
}
## Visual character to preserve
- every major panel is a chamfered phosphor housing with a soft outer green bloom and a 1px inner luminous seam — never a grey border
- near-black green ground carries a faint horizontal scanline overlay and a soft phosphor vignette
- section headers are status rails: left title, fading center rule, right-aligned signal code in amber
- charts and hero zones sit on vector-grid or horizon underlays for depth
- interaction brightens the phosphor bloom rather than moving or reshaping the control
## ShadSync visual profile
{
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": true,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
}
## Signature component recipes
### Button
Use `Button` for primary, secondary, outline, and ghost actions. Primary actions must expose the language's strongest contrast pair, while secondary and ghost actions should preserve the surface treatment instead of falling back to default neutral SaaS styling.
### Card
Use `Card`, `CardHeader`, `CardContent`, `CardFooter`, and `CardAction` as the main composition frame. Cards should demonstrate the language's surface, border, hierarchy, and density rules rather than appearing as generic rounded rectangles.
### Input and Textarea
Use `Input` and `Textarea` with visible focus rings, field labels, validation states, and the language's rhythm. Forms should show real product content, not placeholder-only controls.
### Select, Tabs, and Table
Use `Select`, `Tabs`, and `Table` to prove navigation, filtering, and dense data states. The table should show row rhythm, separators, hover/focus states, and an empty or status state when the language calls for it.
### Dialog and Sheet
Use `Dialog` for centered decisions and `Sheet` for contextual editing. Both should inherit the language's spacing, border, overlay, and motion rules.
## Preview shots
- `application-shell`: dashboard or workspace shell with navigation, cards, forms, and state badges.
- `detail-editor`: focused editing flow using input, textarea, select, switch/checkbox, dialog or sheet, and action buttons.
- `data-operations`: table-heavy operational view with tabs, dropdown menu affordances, badges, and destructive/empty states.
- Each preview shot must include a renderable `scene` payload with concrete headline, description, actions, and rows/fields/stats for the UI preview.
## Implementation contract
- Start from local `ui/src/components/ui` shadcn-style primitives; do not create a second component system.
- Apply `/katagami/shadcn/phosphor-deck/registry-theme.json` variables, then use these recipes for composition and state design.
- Preserve Katagami token names as source metadata; shadcn semantic names are only the export surface.
- Do: Let phosphor green be the resting data state; reserve amber for emphasis and red for alarms.; Frame every important region as mounted hardware opened by a status rail.; Use tabular mono numerics and coded labels for system credibility.; Apply scanlines and vector grids to display zones, not every surface.; Brighten the phosphor bloom on hover and focus; keep motion snappy.
- Do not: Do not add rounded consumer pills or blurred glass cards.; Do not flatten hierarchy by making all text equally bright.; Do not remove the housing framing; the bloom-and-seam is the identity.; Do not use slow or bouncy motion that breaks instrument precision.; Do not wash the ground toward white or pastel; the deck is luminous on near-black.
## Copy-paste component example
This generated starter proves the import shape. Production Katagami agents should replace it with a language-specific product composition.
```tsx
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function PhosphorDeckShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Phosphor Deck</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
```
## Layout notes
{
"grid": "Desktop: a 12-column command deck — sidebar, dominant main instrument area, telemetry stack. Tablet collapses to a split console with telemetry nested under the hero. Phone is a single column with rail headers stacked above each module.",
"whitespace": "Machinery spacing: tight within data clusters, generous between framed housings, protected around hero telemetry.",
"density": "engineered density — full but never crowded",
"responsive": "Renders from ~390px to 2560px+. Non-essential table columns and nav links drop on mobile rather than overflow; the full-bleed hero spans 100vw while contained content is capped and centred on ultra-wide.",
"breakpoints": {
"xl": "1200px",
"lg": "1024px",
"md": "768px",
"sm": "480px"
}
}
{
"artifact": "katagami:shadcn-preview-shots",
"version": "preview-shots-v1",
"generator": "katagami-ui-compatibility-projection",
"generatedBy": "katagami-ui-projection",
"requiresVisualProfile": true,
"schema": "katagami:shadcn-preview-shots/renderable-v1",
"renderable": true,
"language": {
"id": "en-019efa17-4006-74c2-87d0-c5c61377025c",
"name": "Phosphor Deck",
"slug": "phosphor-deck"
},
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"identityNotes": [
"every major panel is a chamfered phosphor housing with a soft outer green bloom and a 1px inner luminous seam — never a grey border",
"near-black green ground carries a faint horizontal scanline overlay and a soft phosphor vignette",
"section headers are status rails: left title, fading center rule, right-aligned signal code in amber",
"charts and hero zones sit on vector-grid or horizon underlays for depth",
"interaction brightens the phosphor bloom rather than moving or reshaping the control"
],
"visualProfile": {
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": true,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
},
"shots": [
{
"id": "application-shell",
"title": "Application shell",
"viewport": "desktop",
"primitives": [
"button",
"card",
"input",
"select",
"tabs",
"badge",
"separator",
"table"
],
"composition": "A real product workspace with navigation, summary cards, filtering controls, and one dense content region.",
"mustShow": [
"primary and secondary actions",
"card hierarchy",
"filterable state",
"table or list density"
],
"avoid": [
"component inventory walls",
"placeholder-only content",
"generic rounded SaaS chrome"
],
"scene": {
"eyebrow": "workspace spread",
"headline": "Phosphor Deck launch room",
"description": "A product team workspace where navigation, filters, metrics, and dense rows carry the language's visible structure.",
"primaryAction": "Apply theme",
"secondaryAction": "Review states",
"stats": [
{
"label": "components",
"value": "16",
"tone": "accent"
},
{
"label": "states",
"value": "ready"
},
{
"label": "density",
"value": "balanced",
"tone": "warning"
}
],
"rows": [
{
"label": "Primary flow",
"value": "mapped",
"status": "active"
},
{
"label": "Token coverage",
"value": "semantic",
"status": "synced"
},
{
"label": "Responsive proof",
"value": "queued",
"status": "review"
}
],
"statuses": [
"Active",
"Synced",
"Draft"
]
}
},
{
"id": "detail-editor",
"title": "Detail editor",
"viewport": "tablet",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"checkbox",
"switch",
"slider",
"dialog",
"sheet"
],
"composition": "A focused editing flow with form fields, validation, confirmation, and a contextual side panel.",
"mustShow": [
"focus ring",
"error or destructive state",
"dialog or sheet treatment",
"written guidance content"
],
"avoid": [
"unstyled browser controls",
"floating cards inside cards",
"missing labels"
],
"scene": {
"eyebrow": "editing flow",
"headline": "Language recipe editor",
"description": "A focused form proving labels, validation, toggles, panel rhythm, and action hierarchy.",
"primaryAction": "Save recipe",
"secondaryAction": "Open sheet",
"fields": [
{
"label": "Component family",
"value": "Narrative cards"
},
{
"label": "State treatment",
"value": "Visible focus + validation"
},
{
"label": "Motion",
"value": "Small lift, no opacity-only fade"
}
],
"statuses": [
"Focus",
"Invalid",
"Confirmed"
]
}
},
{
"id": "data-operations",
"title": "Data operations",
"viewport": "mobile",
"primitives": [
"button",
"tabs",
"badge",
"dropdown-menu",
"table",
"tooltip",
"separator"
],
"composition": "A compact operational view proving row rhythm, stacked actions, menu states, badges, and empty/destructive states.",
"mustShow": [
"responsive reflow",
"dense row styling",
"menu affordance",
"status badge system"
],
"avoid": [
"desktop-only tables",
"text overflow",
"default shadcn spacing without Katagami character"
],
"scene": {
"eyebrow": "operations",
"headline": "Compact review queue",
"description": "A narrow viewport scene with rows, menus, tooltips, badges, and destructive affordances.",
"primaryAction": "Resolve",
"secondaryAction": "Filter",
"rows": [
{
"label": "Button hierarchy",
"value": "approved",
"status": "ok"
},
{
"label": "Table rhythm",
"value": "needs pass",
"status": "watch"
},
{
"label": "Empty state",
"value": "designed",
"status": "done"
}
],
"statuses": [
"Queued",
"Blocked",
"Done"
]
}
}
],
"componentRecipes": [
{
"primitive": "button",
"intent": "Prove action hierarchy, focus, disabled, and destructive states."
},
{
"primitive": "card",
"intent": "Carry the language surface, border, elevation, and density rules."
},
{
"primitive": "input",
"intent": "Show labels, focus rings, validation, and spacing rhythm."
},
{
"primitive": "textarea",
"intent": "Show longer guidance, validation copy, and writing density."
},
{
"primitive": "select",
"intent": "Show filtering, selection contrast, and menu trigger styling."
},
{
"primitive": "dialog",
"intent": "Show centered decision states and overlay treatment."
},
{
"primitive": "sheet",
"intent": "Show contextual side panels and responsive editing."
},
{
"primitive": "tabs",
"intent": "Show navigational structure and active/inactive contrast."
},
{
"primitive": "badge",
"intent": "Show compact status vocabulary and semantic colors."
},
{
"primitive": "separator",
"intent": "Show section rhythm without generic gray dividers."
},
{
"primitive": "checkbox",
"intent": "Show binary selection with visible focus and checked states."
},
{
"primitive": "switch",
"intent": "Show settings toggles and on/off contrast."
},
{
"primitive": "slider",
"intent": "Show numeric adjustment with track/thumb styling."
},
{
"primitive": "tooltip",
"intent": "Show concise explanation styling above compact controls."
},
{
"primitive": "dropdown-menu",
"intent": "Show action menus, destructive items, and grouped choices."
},
{
"primitive": "table",
"intent": "Show dense operational data, separators, row states, and responsive behavior."
}
],
"qualityRules": {
"do": [
"Let phosphor green be the resting data state; reserve amber for emphasis and red for alarms.",
"Frame every important region as mounted hardware opened by a status rail.",
"Use tabular mono numerics and coded labels for system credibility.",
"Apply scanlines and vector grids to display zones, not every surface.",
"Brighten the phosphor bloom on hover and focus; keep motion snappy."
],
"dont": [
"Do not add rounded consumer pills or blurred glass cards.",
"Do not flatten hierarchy by making all text equally bright.",
"Do not remove the housing framing; the bloom-and-seam is the identity.",
"Do not use slow or bouncy motion that breaks instrument precision.",
"Do not wash the ground toward white or pastel; the deck is luminous on near-black."
]
}
}
