# Maquette

## Philosophy

A paper-cut diorama interface language. Every surface is a cut-paper plane in a lit shadow-box, and hierarchy comes from how far that plane floats above the page — read off its cast shadow — never from a line drawn around a box. The faithful descendant of a storybook collage idea, brought to standard: the handmade warmth, narrative staging, and child-friendly legibility are kept; the thick ink outlines, dotted-grain washes, and starburst-and-ribbon clutter are dropped.

### Values

- Depth from light and layering, never from a border
- Handmade warmth on a bright, clean cream ground — never muddy
- Narrative staging — sections behave like picture-book spreads with foreground, midground and far horizon
- Child-friendly legibility: large type, high contrast, forgiving targets
- One ornament system — the diorama itself — applied where depth is the point

### Anti-Values

- Thick ink-like outlines and single accent edges on cards
- Dotted-grain washes and gradient pastel backgrounds
- Starbursts, stitched ribbons, and stamped medallions piled on as decoration
- Arbitrary in-between radii and boxed-in widget navigation
- Defaulting the ground to white

### Visual Character

- Three depth planes (far, mid, near) carry hierarchy through soft cast shadows instead of borders
- Inputs are pressed into the page with an inset shadow, reading as cut grooves rather than bordered boxes
- Scene cards carry a small stacked-paper-hills diorama; the dashboard chart is layered paper hills
- Fraunces serif scene titles with a coral colour-pop and a gold highlighter swipe on a hero word
- A warm cream paper ground with a faint paper-fibre dot texture and three cut-paper cardstock accents

## Tokens

### Colors

| Name | Value |
|------|-------|
| bg | `#F6EEDD` |
| surface | `#FCF7EC` |
| surface-2 | `#F1E6CF` |
| text | `#33291F` |
| muted | `#8A7A63` |
| border | `#E6DAC2` |
| accent | `#E2683F` |
| on-accent | `#FFF8EE` |
| blue | `#3F6E92` |
| gold | `#E6A93C` |
| success | `#5E8C5A` |
| warning | `#E6A93C` |
| error | `#C8462F` |
| info | `#3F6E92` |

### Typography

- **Base Size**: 17px
- **Body Font**: Nunito Sans
- **Heading Font**: Fraunces
- **Mono Font**: IBM Plex Mono
- **Heading Weight**: 600
- **Heading Transform**: none
- **Letter Spacing**: -0.02em
- **Line Height**: 1.6
- **Google Fonts Url**: https://fonts.googleapis.com/css2?family=Fraunces:opsz,wght@9..144,500;9..144,600;9..144,700&family=Nunito+Sans:wght@400;600;700;800&family=IBM+Plex+Mono:wght@500&display=swap

### Radii

- **Flat**: 0
- **Soft**: 16px
- **Card**: 24px
- **Pill**: 9999px

### Shadows

- **Plane-Far**: 0 2px 6px rgba(51,41,31,.10)
- **Plane-Mid**: 0 10px 22px -6px rgba(51,41,31,.20)
- **Plane-Near**: 0 22px 40px -10px rgba(51,41,31,.30), 0 4px 10px rgba(51,41,31,.14)
- **Plane-Inset**: inset 0 2px 6px rgba(51,41,31,.12)

### Spacing

- **Base**: 8px
- **Scale**: ["8px","14px","20px","26px","38px","56px","80px","96px"]

### Surfaces

- **Ground**: #F6EEDD
- **Plane**: #FCF7EC
- **Recessed**: #F1E6CF

### Borders

- **Default**: none
- **Seam**: 1px solid #E6DAC2

### Motion

- **Duration**: 140-160ms
- **Easing**: ease
- **Principle**: near-plane elements lift on hover/focus; sections set into the box on scroll; no bounce, no border on state change

## Rules

### Composition

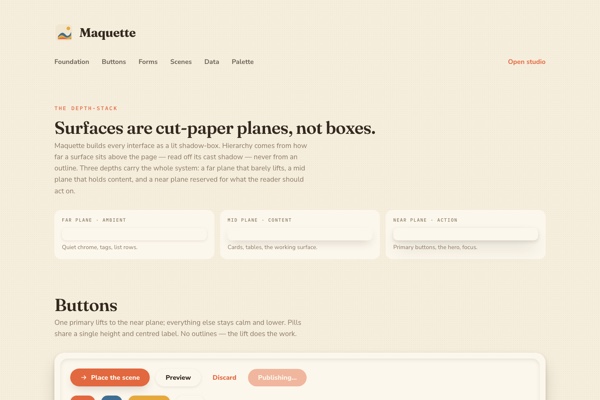

Stage each interface as a lit shadow-box: surfaces are cut-paper planes at three depths (far, mid, near). Hierarchy comes from how far a plane floats — read off its cast shadow — never from an outline.

### Hierarchy

Reserve the near plane and coral for action; the mid plane and slate-blue for the working surface; the far plane for quiet chrome. Inputs press into the page; buttons lift off it.

### Density

Low-to-medium. Large forgiving targets, short readable blocks, generous breathing room — the legibility a picture-book interface needs.

### Signature

The depth-stack: three soft cast-shadow planes carry the whole system, mapped onto semantic roles so they recolour on palette swap. Lists and catalogues are staged as shelves of little dioramas.

## Layout

### Grid

Contained 1160px max, full-bleed hero only; cards and panels on the mid plane, the primary action on the near plane.

### Whitespace

Generous; always pad above titles; let the cream ground breathe.

### Density

Low-to-medium with large targets.

### Responsive

Single column under ~860px; rail collapses to a wrapping nav; non-essential table columns hide under 620px; hero headline shrinks with clamp() and wraps, never clips at 390px.

### Breakpoints

- **Mobile**: 390px
- **Tablet**: 860px
- **Desktop**: 1160px
- **Ultrawide**: 2560px

## Guidance

### Do

- Let depth and light carry hierarchy; reserve the near plane for action
- Keep the cream ground bright and the three cardstocks clean
- Stage lists as shelves of little dioramas
- Press inputs into the page; lift buttons off it

### Don't

- Draw a border, single accent edge, or grey rule to separate anything
- Pile on starbursts, ribbons, or grain washes — the diorama is the ornament
- Set the headline as an italic-swap serif
- Default the ground to white

### Accessibility

Body 17px+ on a high-contrast cream/bark pairing; every control explicitly styled with a visible gold focus ring; large forgiving targets; colour never the only signal — depth, label and shape carry meaning too; motion respects prefers-reduced-motion.

## Imagery Direction

### Pairs With

shadowbox-papercut-diorama

### Summary

Cut-paper diorama imagery — layered matte cardstock at distinct depths in a lit shadow-box, soft cast shadows carrying the depth, on a warm cream paper ground with coral, slate-blue and gold accents.

### Subjects

- landscapes and small towns
- rivers and bridges
- orchards and trees
- harbours and lanterns
- animals and figures

### Usage

Hero is a wide cut-paper landscape with calm paper negative space for the overlay; scene cards and empty states use simpler single-subject dioramas.

---
version: "alpha"
name: "Maquette"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
  bg: "#F6EEDD"
  surface: "#FCF7EC"
  surface-2: "#F1E6CF"
  text: "#33291F"
  muted: "#8A7A63"
  border: "#E6DAC2"
  accent: "#E2683F"
  on-accent: "#FFF8EE"
  blue: "#3F6E92"
  gold: "#E6A93C"
  success: "#5E8C5A"
  warning: "#E6A93C"
  error: "#C8462F"
  info: "#3F6E92"
typography:
  headline-lg:
    fontFamily: "Fraunces"
    fontSize: "2.075rem"
    fontWeight: 700
    lineHeight: 1.1
    letterSpacing: "-0.02em"
  headline-md:
    fontFamily: "Fraunces"
    fontSize: "1.66rem"
    fontWeight: 600
    lineHeight: 1.15
    letterSpacing: "-0.02em"
  body-md:
    fontFamily: "Nunito Sans"
    fontSize: "17px"
    fontWeight: 400
    lineHeight: 1.5
    letterSpacing: "-0.02em"
  label-md:
    fontFamily: "IBM Plex Mono"
    fontSize: "0.75rem"
    fontWeight: 600
    lineHeight: 1
    letterSpacing: "0.08em"
rounded:
  flat: "0px"
  soft: "16px"
  card: "24px"
  pill: "9999px"
spacing:
  base: "8px"
  xs: "8px"
  sm: "14px"
  md: "20px"
  lg: "26px"
  xl: "38px"
  2xl: "56px"
  3xl: "80px"
  4xl: "96px"
components:
  color-reference-bg:
    backgroundColor: "{colors.bg}"
  color-reference-surface:
    backgroundColor: "{colors.surface}"
  color-reference-surface-2:
    backgroundColor: "{colors.surface-2}"
  color-reference-text:
    backgroundColor: "{colors.text}"
  color-reference-muted:
    backgroundColor: "{colors.muted}"
  color-reference-border:
    backgroundColor: "{colors.border}"
  color-reference-accent:
    backgroundColor: "{colors.accent}"
  color-reference-on-accent:
    backgroundColor: "{colors.on-accent}"
  color-reference-blue:
    backgroundColor: "{colors.blue}"
  color-reference-gold:
    backgroundColor: "{colors.gold}"
  color-reference-success:
    backgroundColor: "{colors.success}"
  color-reference-warning:
    backgroundColor: "{colors.warning}"
  color-reference-error:
    backgroundColor: "{colors.error}"
  color-reference-info:
    backgroundColor: "{colors.info}"
  button-primary:
    backgroundColor: "{colors.accent}"
    textColor: "#000000"
    typography: "{typography.label-md}"
    rounded: "16px"
    padding: "{spacing.md}"
  card-surface:
    backgroundColor: "{colors.surface}"
    textColor: "{colors.text}"
    rounded: "16px"
    padding: "{spacing.md}"
  input-default:
    backgroundColor: "{colors.surface}"
    textColor: "{colors.text}"
    rounded: "16px"
    height: "44px"
---

# Maquette

## Overview

A paper-cut diorama interface language. Every surface is a cut-paper plane in a lit shadow-box, and hierarchy comes from how far that plane floats above the page — read off its cast shadow — never from a line drawn around a box. The faithful descendant of a storybook collage idea, brought to standard: the handmade warmth, narrative staging, and child-friendly legibility are kept; the thick ink outlines, dotted-grain washes, and starburst-and-ribbon clutter are dropped.

### Values

- Depth from light and layering, never from a border
- Handmade warmth on a bright, clean cream ground — never muddy
- Narrative staging — sections behave like picture-book spreads with foreground, midground and far horizon
- Child-friendly legibility: large type, high contrast, forgiving targets
- One ornament system — the diorama itself — applied where depth is the point

### Anti-Values

- Thick ink-like outlines and single accent edges on cards
- Dotted-grain washes and gradient pastel backgrounds
- Starbursts, stitched ribbons, and stamped medallions piled on as decoration
- Arbitrary in-between radii and boxed-in widget navigation
- Defaulting the ground to white

### Visual Character

- Three depth planes (far, mid, near) carry hierarchy through soft cast shadows instead of borders
- Inputs are pressed into the page with an inset shadow, reading as cut grooves rather than bordered boxes
- Scene cards carry a small stacked-paper-hills diorama; the dashboard chart is layered paper hills
- Fraunces serif scene titles with a coral colour-pop and a gold highlighter swipe on a hero word
- A warm cream paper ground with a faint paper-fibre dot texture and three cut-paper cardstock accents

## Colors

Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.

| Token | Value |
|-------|-------|
| bg | `#F6EEDD` |
| surface | `#FCF7EC` |
| surface-2 | `#F1E6CF` |
| text | `#33291F` |
| muted | `#8A7A63` |
| border | `#E6DAC2` |
| accent | `#E2683F` |
| on-accent | `#FFF8EE` |
| blue | `#3F6E92` |
| gold | `#E6A93C` |
| success | `#5E8C5A` |
| warning | `#E6A93C` |
| error | `#C8462F` |
| info | `#3F6E92` |

## Typography

- **Headline-Lg**: Fraunces, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: Fraunces, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Nunito Sans, 17px, weight 400, line-height 1.5.
- **Label-Md**: IBM Plex Mono, 0.75rem, weight 600, line-height 1.

## Layout

### Spacing Tokens

- **Base**: `8px`
- **Xs**: `8px`
- **Sm**: `14px`
- **Md**: `20px`
- **Lg**: `26px`
- **Xl**: `38px`
- **2xl**: `56px`
- **3xl**: `80px`
- **4xl**: `96px`

### Grid

Contained 1160px max, full-bleed hero only; cards and panels on the mid plane, the primary action on the near plane.

### Whitespace

Generous; always pad above titles; let the cream ground breathe.

### Density

Low-to-medium with large targets.

### Responsive

Single column under ~860px; rail collapses to a wrapping nav; non-essential table columns hide under 620px; hero headline shrinks with clamp() and wraps, never clips at 390px.

### Breakpoints

- **Mobile**: 390px
- **Tablet**: 860px
- **Desktop**: 1160px
- **Ultrawide**: 2560px

## Elevation & Depth

### Shadows

- **Plane-Far**: 0 2px 6px rgba(51,41,31,.10)
- **Plane-Mid**: 0 10px 22px -6px rgba(51,41,31,.20)
- **Plane-Near**: 0 22px 40px -10px rgba(51,41,31,.30), 0 4px 10px rgba(51,41,31,.14)
- **Plane-Inset**: inset 0 2px 6px rgba(51,41,31,.12)

## Shapes

### Rounded

- **Flat**: `0px`
- **Soft**: `16px`
- **Card**: `24px`
- **Pill**: `9999px`

### Surfaces

- **Ground**: #F6EEDD
- **Plane**: #FCF7EC
- **Recessed**: #F1E6CF

### Borders

- **Default**: none
- **Seam**: 1px solid #E6DAC2

## Components

### Composition

Stage each interface as a lit shadow-box: surfaces are cut-paper planes at three depths (far, mid, near). Hierarchy comes from how far a plane floats — read off its cast shadow — never from an outline.

### Hierarchy

Reserve the near plane and coral for action; the mid plane and slate-blue for the working surface; the far plane for quiet chrome. Inputs press into the page; buttons lift off it.

### Density

Low-to-medium. Large forgiving targets, short readable blocks, generous breathing room — the legibility a picture-book interface needs.

### Signature

The depth-stack: three soft cast-shadow planes carry the whole system, mapped onto semantic roles so they recolour on palette swap. Lists and catalogues are staged as shelves of little dioramas.

## shadcn/ui Usage

When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.

DESIGN.md with shadcn: `/language/en-019efdd8-cdc8-7602-a355-f275fc13ae05/DESIGN.with-shadcn.md`.

The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.

Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.

Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table

Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.

## Do's and Don'ts

- Do Let depth and light carry hierarchy; reserve the near plane for action
- Do Keep the cream ground bright and the three cardstocks clean
- Do Stage lists as shelves of little dioramas
- Do Press inputs into the page; lift buttons off it
- Don't Draw a border, single accent edge, or grey rule to separate anything
- Don't Pile on starbursts, ribbons, or grain washes — the diorama is the ornament
- Don't Set the headline as an italic-swap serif
- Don't Default the ground to white

### Accessibility

Body 17px+ on a high-contrast cream/bark pairing; every control explicitly styled with a visible gold focus ring; large forgiving targets; colour never the only signal — depth, label and shape carry meaning too; motion respects prefers-reduced-motion.

## Imagery Direction

### Pairs With

shadowbox-papercut-diorama

### Summary

Cut-paper diorama imagery — layered matte cardstock at distinct depths in a lit shadow-box, soft cast shadows carrying the depth, on a warm cream paper ground with coral, slate-blue and gold accents.

### Subjects

- landscapes and small towns
- rivers and bridges
- orchards and trees
- harbours and lanterns
- animals and figures

### Usage

Hero is a wide cut-paper landscape with calm paper negative space for the overlay; scene cards and empty states use simpler single-subject dioramas.

```json
{
  "$schema": "https://ui.shadcn.com/schema/registry-item.json",
  "name": "maquette",
  "type": "registry:theme",
  "title": "Maquette shadcn Theme",
  "cssVars": {
    "theme": {},
    "light": {
      "background": "#F6EEDD",
      "foreground": "#33291F",
      "card": "#FCF7EC",
      "card-foreground": "#33291F",
      "popover": "#FCF7EC",
      "popover-foreground": "#33291F",
      "primary": "#33291F",
      "primary-foreground": "#ffffff",
      "secondary": "#f4f4f5",
      "secondary-foreground": "#111111",
      "muted": "#8A7A63",
      "muted-foreground": "#33291F",
      "accent": "#E2683F",
      "accent-foreground": "#ffffff",
      "destructive": "#C8462F",
      "border": "#E6DAC2",
      "input": "#E6DAC2",
      "ring": "#E2683F",
      "chart-1": "#33291F",
      "chart-2": "#f4f4f5",
      "chart-3": "#E2683F",
      "chart-4": "#5E8C5A",
      "chart-5": "#E6A93C",
      "sidebar": "#FCF7EC",
      "sidebar-foreground": "#33291F",
      "sidebar-primary": "#33291F",
      "sidebar-primary-foreground": "#ffffff",
      "sidebar-accent": "#3F6E92",
      "sidebar-accent-foreground": "#ffffff",
      "sidebar-border": "#E6DAC2",
      "sidebar-ring": "#E2683F",
      "radius": "0.625rem"
    },
    "dark": {
      "background": "#0f1115",
      "foreground": "#f8fafc",
      "card": "#181b22",
      "card-foreground": "#f8fafc",
      "popover": "#181b22",
      "popover-foreground": "#f8fafc",
      "primary": "#33291F",
      "primary-foreground": "#ffffff",
      "secondary": "#252a33",
      "secondary-foreground": "#f8fafc",
      "muted": "#252a33",
      "muted-foreground": "#a1a1aa",
      "accent": "#E2683F",
      "accent-foreground": "#ffffff",
      "destructive": "#C8462F",
      "border": "#303642",
      "input": "#303642",
      "ring": "#E2683F",
      "chart-1": "#33291F",
      "chart-2": "#f4f4f5",
      "chart-3": "#E2683F",
      "chart-4": "#5E8C5A",
      "chart-5": "#E6A93C",
      "sidebar": "#181b22",
      "sidebar-foreground": "#f8fafc",
      "sidebar-primary": "#33291F",
      "sidebar-primary-foreground": "#ffffff",
      "sidebar-accent": "#E2683F",
      "sidebar-accent-foreground": "#ffffff",
      "sidebar-border": "#303642",
      "sidebar-ring": "#E2683F",
      "radius": "0.625rem"
    }
  },
  "meta": {
    "source": "katagami",
    "languageId": "en-019efdd8-cdc8-7602-a355-f275fc13ae05",
    "slug": "maquette",
    "componentManifest": [
      "button",
      "card",
      "input",
      "textarea",
      "select",
      "dialog",
      "sheet",
      "tabs",
      "badge",
      "separator",
      "checkbox",
      "switch",
      "slider",
      "tooltip",
      "dropdown-menu",
      "table"
    ],
    "installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
    "nativeTokenNames": {
      "colors": [
        "accent",
        "bg",
        "blue",
        "border",
        "error",
        "gold",
        "info",
        "muted",
        "on-accent",
        "success",
        "surface",
        "surface-2",
        "text",
        "warning"
      ],
      "typography": [
        "base_size",
        "body_font",
        "google_fonts_url",
        "heading_font",
        "heading_transform",
        "heading_weight",
        "letter_spacing",
        "line_height",
        "mono_font"
      ],
      "radii": [
        "card",
        "flat",
        "pill",
        "soft"
      ],
      "shadows": [
        "plane-far",
        "plane-inset",
        "plane-mid",
        "plane-near"
      ],
      "spacing": [
        "base",
        "scale"
      ],
      "surfaces": [
        "ground",
        "plane",
        "recessed"
      ],
      "borders": [
        "default",
        "seam"
      ],
      "motion": [
        "duration",
        "easing",
        "principle"
      ]
    }
  }
}
```
