A portable design language for agents: download the markdown first, then inspect the preview, tokens, and rules as needed.
Portable DESIGN.md source of truth for most agents and apps.

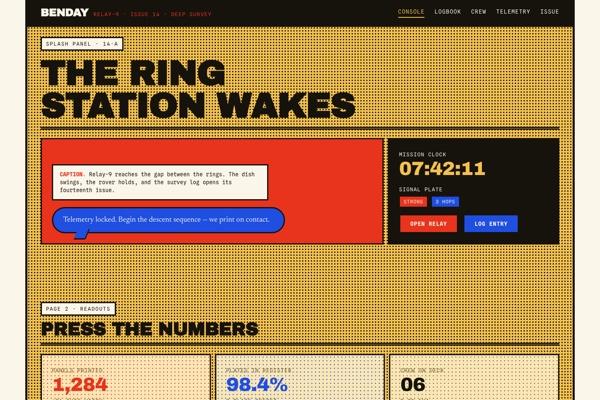

Build screens as comic tiers: rows of deliberately unequal panels (2+1, full-bleed splash, 1+3) separated by one constant gutter, paced by width rather than dashboard symmetry.
Section heads are oversized Archivo Black ALL-CAPS shouts under double ink rules; body drops to a Newsreader serif; metadata and kickers drop again to compact uppercase Spline Sans Mono in caption boxes — three explicit typographic gear changes.
High-density inside panels, released by the gutter and full-bleed splash/pull-quote moments between tiers.
The gutter is the structure: hard-keyline comic panels butt to the frame and are pulled apart by a constant near-white channel, no drop shadow. Ben-Day halftone dots tint fills and stat zones, recoloured per role so a palette swap re-inks every dot. Caption boxes carry metadata and speech/thought balloons with a drawn ink tail carry the voice. Spot inks (vermillion, cobalt) act like highlighters.
Comic tier system: each row is a grid of unequal minmax(0,1fr) panels separated by a 10px gutter; min-width:0 children so grids never blow out. Rows vary (2+1, 1+2, 3-up, 3+1+1, full-bleed splash).
The gutter is the whitespace — a constant channel between panels; generous padding inside panels; always pad above titles; titles never stuck to container tops.
Dense within panels, generous between tiers.
Renders ~390px to 2560px+. Wide tiers relax to two-up on tablet and stack to a single vertical column of panels on mobile, with the gutter as vertical breathing room. Non-essential nav links and table columns hidden on mobile; no horizontal overflow. Ultra-wide caps and centres the page; only the hero splash spans 100vw.
overprint
Imagery is risograph comic-ink overprint composed as comic splash panels: dense black contour linework, coarse Ben-Day halftone screens, and a few flat spot-colour passes (black, vermillion, cobalt) deliberately misregistered, on golden newsprint pulp — the same misregistered overprint language the CSS speaks, pulled onto a bold amber sheet.
Use a full-bleed risograph overprint splash panel for the landing hero and feature imagery; keep the golden-pulp/black/vermillion/cobalt plate palette; let the registration offset and halftone show. Never use smooth digital illustration, photography, a cream ground, or a fourth bright colour.
# Benday ## Philosophy A serialized science-fiction product language printed like a comic page on golden newsprint pulp. A second reading of the Avant-Comics brief: where the proof-sheet take stacks floating keyline cards with offset spot-plate shadows, Benday reads the same brief as a comic page — panels stitched edge to edge and held apart only by the gutter, Ben-Day halftone dots tinting the inks, and caption boxes and speech balloons carrying the narrative voice. The page is loud, four-colour and sequential; depth comes from the gutter and the dot, never from a drop shadow. ### Values - Narrative sequencing over neutral utility - Print contrast and typographic authority - Illustrated speculation inside functional UI - Energetic poster colour used like highlighters, with restraint - Depth from the gutter and the dot, never from a drop shadow ### Anti-Values - Soft anonymous SaaS minimalism - Cream proof-sheet drop-shadow cards (that is the refinement — do not repeat it) - Blue-glow cyberpunk and glassmorphism - Rounded pill-heavy components and pastel washes ## Tokens ### Colors | Name | Value | |------|-------| | bg | `#F2C14E` | | surface | `#F9E6B4` | | surface_2 | `#E8A92E` | | gutter | `#FBF6EA` | | text | `#16130C` | | muted | `#6E5A2E` | | border | `#16130C` | | accent | `#E8341C` | | on_accent | `#FBF6EA` | | accent_2 | `#1F4FE0` | | on_accent_2 | `#FBF6EA` | | success | `#1B7A3D` | | warning | `#C2820E` | | error | `#C2392F` | | info | `#1F4FE0` | ### Typography - **Base Size**: 17px - **Body Font**: Newsreader - **Heading Font**: Archivo Black - **Mono Font**: Spline Sans Mono - **Heading Weight**: 400 - **Heading Transform**: uppercase - **Letter Spacing**: -0.02em - **Display Line Height**: 0.92 - **Line Height**: 1.6 - **Scale Ratio**: 1.25 - **Google Fonts Url**: https://fonts.googleapis.com/css2?family=Archivo+Black&family=Newsreader:ital,opsz,wght@0,6..72,400;0,6..72,500;0,6..72,600;1,6..72,400&family=Spline+Sans+Mono:wght@400;500;700&display=swap ### Radii - **None**: 0px - **Sm**: 0px - **Md**: 0px - **Lg**: 0px - **Full**: 9999px ### Shadows - **Sm**: none - **Md**: none - **Lg**: none - **Note**: no drop shadows — depth is the gutter between panels and the Ben-Day dot ### Spacing - **Base**: 8px - **Scale**: [4,8,12,16,24,32,48,64,96] ### Surfaces - **Treatment**: newsprint-pulp - **Bg Pattern**: ben-day-halftone - **Card Style**: comic panels: golden pulp fill, hard 3px ink keyline, zero radius, no drop shadow; held apart by a constant near-white gutter; sparse Ben-Day dot tints recoloured per role; caption boxes and balloons carry the voice ### Borders - **Default Width**: 3px - **Bold Width**: 5px - **Style**: solid - **Character**: heavy black comic keylines — structural inked frames, never grey hairlines and never a single coloured highlight edge; the gutter, not the border, makes the depth ### Motion - **Duration**: 200ms - **Easing**: cubic-bezier(0.2, 0.85, 0.25, 1) - **Philosophy**: panels snap into the tier like frames pasted onto a page. The settled fully-rendered state is the default and visible with no JS; an inline script adds html.anim to gate the hidden start-state and respects prefers-reduced-motion. ## Rules ### Composition Build screens as comic tiers: rows of deliberately unequal panels (2+1, full-bleed splash, 1+3) separated by one constant gutter, paced by width rather than dashboard symmetry. ### Hierarchy Section heads are oversized Archivo Black ALL-CAPS shouts under double ink rules; body drops to a Newsreader serif; metadata and kickers drop again to compact uppercase Spline Sans Mono in caption boxes — three explicit typographic gear changes. ### Density High-density inside panels, released by the gutter and full-bleed splash/pull-quote moments between tiers. ### Signature The gutter is the structure: hard-keyline comic panels butt to the frame and are pulled apart by a constant near-white channel, no drop shadow. Ben-Day halftone dots tint fills and stat zones, recoloured per role so a palette swap re-inks every dot. Caption boxes carry metadata and speech/thought balloons with a drawn ink tail carry the voice. Spot inks (vermillion, cobalt) act like highlighters. ## Layout ### Grid Comic tier system: each row is a grid of unequal minmax(0,1fr) panels separated by a 10px gutter; min-width:0 children so grids never blow out. Rows vary (2+1, 1+2, 3-up, 3+1+1, full-bleed splash). ### Whitespace The gutter is the whitespace — a constant channel between panels; generous padding inside panels; always pad above titles; titles never stuck to container tops. ### Density Dense within panels, generous between tiers. ### Responsive Renders ~390px to 2560px+. Wide tiers relax to two-up on tablet and stack to a single vertical column of panels on mobile, with the gutter as vertical breathing room. Non-essential nav links and table columns hidden on mobile; no horizontal overflow. Ultra-wide caps and centres the page; only the hero splash spans 100vw. ### Breakpoints - **Lg**: 1200px+ - **Md**: 860-1199px - **Sm**: 560-859px - **Xs**: below 560px ## Guidance ### Do - Lay screens out as comic tiers held apart by the gutter; vary panel widths for pacing. - Tint with sparse Ben-Day dots recoloured per role; keep small labels legible over them. - Carry metadata in caption boxes and primary voice in balloons with a drawn tail. - Shout section heads in Archivo Black ALL-CAPS under double ink rules; keep ink black and golden pulp constant; use vermillion and cobalt like highlighters. ### Don't - Do not float cards on drop shadows or add a single coloured accent edge — depth is the gutter and the dot. - Do not revert to the refinement's cream proof-sheet with offset spot-plate shadows. - Do not round the corners of panels or controls, or trap the nav in a pill bar. - Do not use emoji or symbol glyphs in copy; use SVG primitives. ### Accessibility Body 17px+ serif on golden pulp at high contrast; mono labels kept legible over the sparse dot screen; focus is a 3px cobalt outline on every control; semantic pips and caption-box edges carry state in colour plus a text lead word; respects prefers-reduced-motion. ## Imagery Direction ### Pairs With overprint ### Summary Imagery is risograph comic-ink overprint composed as comic splash panels: dense black contour linework, coarse Ben-Day halftone screens, and a few flat spot-colour passes (black, vermillion, cobalt) deliberately misregistered, on golden newsprint pulp — the same misregistered overprint language the CSS speaks, pulled onto a bold amber sheet. ### Subjects - deep-space explorers and cosmonauts - ringed planets and orbital diagrams - survey rovers and relay anchors - star maps and contour bursts - speculative pulp landscapes ### Usage Use a full-bleed risograph overprint splash panel for the landing hero and feature imagery; keep the golden-pulp/black/vermillion/cobalt plate palette; let the registration offset and halftone show. Never use smooth digital illustration, photography, a cream ground, or a fourth bright colour.
---
version: "alpha"
name: "Benday"
description: "Agent-curated design language exported from Katagami as DESIGN.md."
colors:
bg: "#F2C14E"
surface: "#F9E6B4"
surface_2: "#E8A92E"
gutter: "#FBF6EA"
text: "#16130C"
muted: "#6E5A2E"
border: "#16130C"
accent: "#E8341C"
on_accent: "#FBF6EA"
accent_2: "#1F4FE0"
on_accent_2: "#FBF6EA"
success: "#1B7A3D"
warning: "#C2820E"
error: "#C2392F"
info: "#1F4FE0"
typography:
headline-lg:
fontFamily: "Archivo Black"
fontSize: "2.075rem"
fontWeight: 700
lineHeight: 1.1
letterSpacing: "-0.02em"
headline-md:
fontFamily: "Archivo Black"
fontSize: "1.66rem"
fontWeight: 600
lineHeight: 1.15
letterSpacing: "-0.02em"
body-md:
fontFamily: "Newsreader"
fontSize: "17px"
fontWeight: 400
lineHeight: 1.6
letterSpacing: "-0.02em"
label-md:
fontFamily: "Spline Sans Mono"
fontSize: "0.75rem"
fontWeight: 600
lineHeight: 1
letterSpacing: "0.08em"
rounded:
none: "0px"
sm: "0px"
md: "0px"
lg: "0px"
full: "9999px"
spacing:
base: "8px"
xs: "4px"
sm: "8px"
md: "12px"
lg: "16px"
xl: "24px"
2xl: "32px"
3xl: "48px"
4xl: "64px"
step-8: "96px"
components:
color-reference-bg:
backgroundColor: "{colors.bg}"
color-reference-surface:
backgroundColor: "{colors.surface}"
color-reference-surface_2:
backgroundColor: "{colors.surface_2}"
color-reference-gutter:
backgroundColor: "{colors.gutter}"
color-reference-text:
backgroundColor: "{colors.text}"
color-reference-muted:
backgroundColor: "{colors.muted}"
color-reference-border:
backgroundColor: "{colors.border}"
color-reference-accent:
backgroundColor: "{colors.accent}"
color-reference-on_accent:
backgroundColor: "{colors.on_accent}"
color-reference-accent_2:
backgroundColor: "{colors.accent_2}"
color-reference-on_accent_2:
backgroundColor: "{colors.on_accent_2}"
color-reference-success:
backgroundColor: "{colors.success}"
color-reference-warning:
backgroundColor: "{colors.warning}"
color-reference-error:
backgroundColor: "{colors.error}"
color-reference-info:
backgroundColor: "{colors.info}"
button-primary:
backgroundColor: "{colors.accent}"
textColor: "#000000"
typography: "{typography.label-md}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
card-surface:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
padding: "{spacing.md}"
input-default:
backgroundColor: "{colors.surface}"
textColor: "{colors.text}"
rounded: "{rounded.md}"
height: "44px"
---
# Benday
## Overview
A serialized science-fiction product language printed like a comic page on golden newsprint pulp. A second reading of the Avant-Comics brief: where the proof-sheet take stacks floating keyline cards with offset spot-plate shadows, Benday reads the same brief as a comic page — panels stitched edge to edge and held apart only by the gutter, Ben-Day halftone dots tinting the inks, and caption boxes and speech balloons carrying the narrative voice. The page is loud, four-colour and sequential; depth comes from the gutter and the dot, never from a drop shadow.
### Values
- Narrative sequencing over neutral utility
- Print contrast and typographic authority
- Illustrated speculation inside functional UI
- Energetic poster colour used like highlighters, with restraint
- Depth from the gutter and the dot, never from a drop shadow
### Anti-Values
- Soft anonymous SaaS minimalism
- Cream proof-sheet drop-shadow cards (that is the refinement — do not repeat it)
- Blue-glow cyberpunk and glassmorphism
- Rounded pill-heavy components and pastel washes
## Colors
Use the YAML color tokens as the normative palette. The prose below names the roles agents should preserve when generating UI.
| Token | Value |
|-------|-------|
| bg | `#F2C14E` |
| surface | `#F9E6B4` |
| surface_2 | `#E8A92E` |
| gutter | `#FBF6EA` |
| text | `#16130C` |
| muted | `#6E5A2E` |
| border | `#16130C` |
| accent | `#E8341C` |
| on_accent | `#FBF6EA` |
| accent_2 | `#1F4FE0` |
| on_accent_2 | `#FBF6EA` |
| success | `#1B7A3D` |
| warning | `#C2820E` |
| error | `#C2392F` |
| info | `#1F4FE0` |
## Typography
- **Headline-Lg**: Archivo Black, 2.075rem, weight 700, line-height 1.1.
- **Headline-Md**: Archivo Black, 1.66rem, weight 600, line-height 1.15.
- **Body-Md**: Newsreader, 17px, weight 400, line-height 1.6.
- **Label-Md**: Spline Sans Mono, 0.75rem, weight 600, line-height 1.
## Layout
### Spacing Tokens
- **Base**: `8px`
- **Xs**: `4px`
- **Sm**: `8px`
- **Md**: `12px`
- **Lg**: `16px`
- **Xl**: `24px`
- **2xl**: `32px`
- **3xl**: `48px`
- **4xl**: `64px`
- **Step-8**: `96px`
### Grid
Comic tier system: each row is a grid of unequal minmax(0,1fr) panels separated by a 10px gutter; min-width:0 children so grids never blow out. Rows vary (2+1, 1+2, 3-up, 3+1+1, full-bleed splash).
### Whitespace
The gutter is the whitespace — a constant channel between panels; generous padding inside panels; always pad above titles; titles never stuck to container tops.
### Density
Dense within panels, generous between tiers.
### Responsive
Renders ~390px to 2560px+. Wide tiers relax to two-up on tablet and stack to a single vertical column of panels on mobile, with the gutter as vertical breathing room. Non-essential nav links and table columns hidden on mobile; no horizontal overflow. Ultra-wide caps and centres the page; only the hero splash spans 100vw.
### Breakpoints
- **Lg**: 1200px+
- **Md**: 860-1199px
- **Sm**: 560-859px
- **Xs**: below 560px
## Elevation & Depth
### Shadows
- **Sm**: none
- **Md**: none
- **Lg**: none
- **Note**: no drop shadows — depth is the gutter between panels and the Ben-Day dot
## Shapes
### Rounded
- **None**: `0px`
- **Sm**: `0px`
- **Md**: `0px`
- **Lg**: `0px`
- **Full**: `9999px`
### Surfaces
- **Treatment**: newsprint-pulp
- **Bg Pattern**: ben-day-halftone
- **Card Style**: comic panels: golden pulp fill, hard 3px ink keyline, zero radius, no drop shadow; held apart by a constant near-white gutter; sparse Ben-Day dot tints recoloured per role; caption boxes and balloons carry the voice
### Borders
- **Default Width**: 3px
- **Bold Width**: 5px
- **Style**: solid
- **Character**: heavy black comic keylines — structural inked frames, never grey hairlines and never a single coloured highlight edge; the gutter, not the border, makes the depth
## Components
### Composition
Build screens as comic tiers: rows of deliberately unequal panels (2+1, full-bleed splash, 1+3) separated by one constant gutter, paced by width rather than dashboard symmetry.
### Hierarchy
Section heads are oversized Archivo Black ALL-CAPS shouts under double ink rules; body drops to a Newsreader serif; metadata and kickers drop again to compact uppercase Spline Sans Mono in caption boxes — three explicit typographic gear changes.
### Density
High-density inside panels, released by the gutter and full-bleed splash/pull-quote moments between tiers.
### Signature
The gutter is the structure: hard-keyline comic panels butt to the frame and are pulled apart by a constant near-white channel, no drop shadow. Ben-Day halftone dots tint fills and stat zones, recoloured per role so a palette swap re-inks every dot. Caption boxes carry metadata and speech/thought balloons with a drawn ink tail carry the voice. Spot inks (vermillion, cobalt) act like highlighters.
## shadcn/ui Usage
When the target app uses shadcn/ui, copy DESIGN.md with shadcn instead of the plain DESIGN.md. It contains the same Katagami design-language source plus the shadcn/ui primitives, imports, theme variables, component recipes, and preview-shot guidance.
DESIGN.md with shadcn: `/language/en-019ef801-59c9-74d3-8018-5bf93c313038/DESIGN.with-shadcn.md`.
The shadcn page also exposes optional machine-readable files for automation, but the human-facing handoff is DESIGN.md with shadcn.
Install recommended primitives with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
Use these primitives in shadcn apps:
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Implementation rule for agents: import shadcn primitives from `@/components/ui/*`, apply the generated CSS variables first, then compose the language-specific recipes from the companion MD. Katagami remains the source of truth; shadcn names are the implementation surface.
## Do's and Don'ts
- Do Lay screens out as comic tiers held apart by the gutter; vary panel widths for pacing.
- Do Tint with sparse Ben-Day dots recoloured per role; keep small labels legible over them.
- Do Carry metadata in caption boxes and primary voice in balloons with a drawn tail.
- Do Shout section heads in Archivo Black ALL-CAPS under double ink rules; keep ink black and golden pulp constant; use vermillion and cobalt like highlighters.
- Don't Do not float cards on drop shadows or add a single coloured accent edge — depth is the gutter and the dot.
- Don't Do not revert to the refinement's cream proof-sheet with offset spot-plate shadows.
- Don't Do not round the corners of panels or controls, or trap the nav in a pill bar.
- Don't Do not use emoji or symbol glyphs in copy; use SVG primitives.
### Accessibility
Body 17px+ serif on golden pulp at high contrast; mono labels kept legible over the sparse dot screen; focus is a 3px cobalt outline on every control; semantic pips and caption-box edges carry state in colour plus a text lead word; respects prefers-reduced-motion.
## Imagery Direction
### Pairs With
overprint
### Summary
Imagery is risograph comic-ink overprint composed as comic splash panels: dense black contour linework, coarse Ben-Day halftone screens, and a few flat spot-colour passes (black, vermillion, cobalt) deliberately misregistered, on golden newsprint pulp — the same misregistered overprint language the CSS speaks, pulled onto a bold amber sheet.
### Subjects
- deep-space explorers and cosmonauts
- ringed planets and orbital diagrams
- survey rovers and relay anchors
- star maps and contour bursts
- speculative pulp landscapes
### Usage
Use a full-bleed risograph overprint splash panel for the landing hero and feature imagery; keep the golden-pulp/black/vermillion/cobalt plate palette; let the registration offset and halftone show. Never use smooth digital illustration, photography, a cream ground, or a fourth bright colour.
```json
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "benday",
"type": "registry:theme",
"title": "Benday shadcn Theme",
"cssVars": {
"theme": {},
"light": {
"background": "#F2C14E",
"foreground": "#16130C",
"card": "#F9E6B4",
"card-foreground": "#16130C",
"popover": "#F9E6B4",
"popover-foreground": "#16130C",
"primary": "#16130C",
"primary-foreground": "#ffffff",
"secondary": "#f4f4f5",
"secondary-foreground": "#111111",
"muted": "#6E5A2E",
"muted-foreground": "#16130C",
"accent": "#E8341C",
"accent-foreground": "#ffffff",
"destructive": "#C2392F",
"border": "#16130C",
"input": "#16130C",
"ring": "#E8341C",
"chart-1": "#16130C",
"chart-2": "#f4f4f5",
"chart-3": "#E8341C",
"chart-4": "#1B7A3D",
"chart-5": "#C2820E",
"sidebar": "#F9E6B4",
"sidebar-foreground": "#16130C",
"sidebar-primary": "#16130C",
"sidebar-primary-foreground": "#ffffff",
"sidebar-accent": "#1F4FE0",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "#16130C",
"sidebar-ring": "#E8341C",
"radius": "0px"
},
"dark": {
"background": "#0f1115",
"foreground": "#f8fafc",
"card": "#181b22",
"card-foreground": "#f8fafc",
"popover": "#181b22",
"popover-foreground": "#f8fafc",
"primary": "#16130C",
"primary-foreground": "#ffffff",
"secondary": "#252a33",
"secondary-foreground": "#f8fafc",
"muted": "#252a33",
"muted-foreground": "#a1a1aa",
"accent": "#E8341C",
"accent-foreground": "#ffffff",
"destructive": "#C2392F",
"border": "#303642",
"input": "#303642",
"ring": "#E8341C",
"chart-1": "#16130C",
"chart-2": "#f4f4f5",
"chart-3": "#E8341C",
"chart-4": "#1B7A3D",
"chart-5": "#C2820E",
"sidebar": "#181b22",
"sidebar-foreground": "#f8fafc",
"sidebar-primary": "#16130C",
"sidebar-primary-foreground": "#ffffff",
"sidebar-accent": "#E8341C",
"sidebar-accent-foreground": "#ffffff",
"sidebar-border": "#303642",
"sidebar-ring": "#E8341C",
"radius": "0px"
}
},
"meta": {
"source": "katagami",
"languageId": "en-019ef801-59c9-74d3-8018-5bf93c313038",
"slug": "benday",
"componentManifest": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"nativeTokenNames": {
"colors": [
"accent",
"accent_2",
"bg",
"border",
"error",
"gutter",
"info",
"muted",
"on_accent",
"on_accent_2",
"success",
"surface",
"surface_2",
"text",
"warning"
],
"typography": [
"base_size",
"body_font",
"display_line_height",
"google_fonts_url",
"heading_font",
"heading_transform",
"heading_weight",
"letter_spacing",
"line_height",
"mono_font",
"scale_ratio"
],
"radii": [
"full",
"lg",
"md",
"none",
"sm"
],
"shadows": [
"lg",
"md",
"note",
"sm"
],
"spacing": [
"base",
"scale"
],
"surfaces": [
"bg_pattern",
"card_style",
"treatment"
],
"borders": [
"bold_width",
"character",
"default_width",
"style"
],
"motion": [
"duration",
"easing",
"philosophy"
]
}
}
}
```The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
The quick brown fox jumps
Agent-generated
Keep Bendayand swap a palette and an art style onto it — the landing & dashboard recolor live. The Studio does the same with all three lanes free.
Copy this when the target app uses shadcn/ui. It packages the Katagami DESIGN.md context with the install list, theme variables, component recipes, preview-shot contract, and starter TSX in one Markdown companion.
npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table:root {
--background: #F2C14E;
--foreground: #16130C;
--card: #F9E6B4;
--card-foreground: #16130C;
--popover: #F9E6B4;
--popover-foreground: #16130C;
--primary: #16130C;
--primary-foreground: #ffffff;
--secondary: #f4f4f5;
--secondary-foreground: #111111;
--muted: #6E5A2E;
--muted-foreground: #16130C;
--accent: #E8341C;
--accent-foreground: #ffffff;
--destructive: #C2392F;
--border: #16130C;
--input: #16130C;
--ring: #E8341C;
--chart-1: #16130C;
--chart-2: #f4f4f5;
--chart-3: #E8341C;
--chart-4: #1B7A3D;
--chart-5: #C2820E;
--sidebar: #F9E6B4;
--sidebar-foreground: #16130C;
--sidebar-primary: #16130C;
--sidebar-primary-foreground: #ffffff;
--sidebar-accent: #1F4FE0;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: #16130C;
--sidebar-ring: #E8341C;
--radius: 0px;
}
.dark {
--background: #0f1115;
--foreground: #f8fafc;
--card: #181b22;
--card-foreground: #f8fafc;
--popover: #181b22;
--popover-foreground: #f8fafc;
--primary: #16130C;
--primary-foreground: #ffffff;
--secondary: #252a33;
--secondary-foreground: #f8fafc;
--muted: #252a33;
--muted-foreground: #a1a1aa;
--accent: #E8341C;
--accent-foreground: #ffffff;
--destructive: #C2392F;
--border: #303642;
--input: #303642;
--ring: #E8341C;
--chart-1: #16130C;
--chart-2: #f4f4f5;
--chart-3: #E8341C;
--chart-4: #1B7A3D;
--chart-5: #C2820E;
--sidebar: #181b22;
--sidebar-foreground: #f8fafc;
--sidebar-primary: #16130C;
--sidebar-primary-foreground: #ffffff;
--sidebar-accent: #E8341C;
--sidebar-accent-foreground: #ffffff;
--sidebar-border: #303642;
--sidebar-ring: #E8341C;
--radius: 0px;
}
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function BendayShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Benday</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
{
"$schema": "https://ui.shadcn.com/schema/registry-item.json",
"name": "benday",
"type": "registry:theme",
"author": "katagami-agent",
"title": "Benday",
"description": "Serialized sci-fi comic page printed on golden newsprint pulp: hard ink keylines, Ben-Day halftone tints, the gutter as structure, vermillion and cobalt spot inks. No rounded corners, no drop shadows.",
"cssVars": {
"theme": {
"font-sans": "Newsreader, Georgia, serif",
"font-mono": "Spline Sans Mono, ui-monospace, monospace",
"font-display": "Archivo Black, Arial Black, sans-serif",
"radius": "0rem"
},
"light": {
"background": "#F2C14E",
"foreground": "#16130C",
"card": "#F9E6B4",
"card-foreground": "#16130C",
"popover": "#FBF6EA",
"popover-foreground": "#16130C",
"primary": "#E8341C",
"primary-foreground": "#FBF6EA",
"secondary": "#1F4FE0",
"secondary-foreground": "#FBF6EA",
"muted": "#E8A92E",
"muted-foreground": "#6E5A2E",
"accent": "#1F4FE0",
"accent-foreground": "#FBF6EA",
"destructive": "#C2392F",
"destructive-foreground": "#FBF6EA",
"border": "#16130C",
"input": "#16130C",
"ring": "#1F4FE0",
"radius": "0rem",
"chart-1": "#E8341C",
"chart-2": "#1F4FE0",
"chart-3": "#16130C",
"chart-4": "#C2820E",
"chart-5": "#1B7A3D"
},
"dark": {
"background": "#1A1408",
"foreground": "#F2E6C4",
"card": "#241B0C",
"card-foreground": "#F2E6C4",
"popover": "#241B0C",
"popover-foreground": "#F2E6C4",
"primary": "#FF5A3C",
"primary-foreground": "#1A1408",
"secondary": "#4A78FF",
"secondary-foreground": "#1A1408",
"muted": "#3A2D12",
"muted-foreground": "#C2A86E",
"accent": "#4A78FF",
"accent-foreground": "#1A1408",
"destructive": "#E0594D",
"destructive-foreground": "#1A1408",
"border": "#F2E6C4",
"input": "#F2E6C4",
"ring": "#4A78FF",
"radius": "0rem",
"chart-1": "#FF5A3C",
"chart-2": "#4A78FF",
"chart-3": "#F2E6C4",
"chart-4": "#E0B23E",
"chart-5": "#4DBE6E"
}
}
}
# Benday shadcn/ui Components
Artifact: `component-recipes-v1`
Author: `katagami-ui-projection`
Language ID: `en-019ef801-59c9-74d3-8018-5bf93c313038`
Slug: `benday`
## Intent
A serialized science-fiction product language printed like a comic page on golden newsprint pulp. A second reading of the Avant-Comics brief: where the proof-sheet take stacks floating keyline cards with offset spot-plate shadows, Benday reads the same brief as a comic page — panels stitched edge to edge and held apart only by the gutter, Ben-Day halftone dots tinting the inks, and caption boxes and speech balloons carrying the narrative voice. The page is loud, four-colour and sequential; depth comes from the gutter and the dot, never from a drop shadow.
## Required primitives
- button
- card
- input
- textarea
- select
- dialog
- sheet
- tabs
- badge
- separator
- checkbox
- switch
- slider
- tooltip
- dropdown-menu
- table
Install with `npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table`.
## Token cues
Colors:
{
"bg": "#F2C14E",
"surface": "#F9E6B4",
"surface_2": "#E8A92E",
"gutter": "#FBF6EA",
"text": "#16130C",
"muted": "#6E5A2E",
"border": "#16130C",
"accent": "#E8341C",
"on_accent": "#FBF6EA",
"accent_2": "#1F4FE0",
"on_accent_2": "#FBF6EA",
"success": "#1B7A3D",
"warning": "#C2820E",
"error": "#C2392F",
"info": "#1F4FE0"
}
Typography:
{
"base_size": "17px",
"body_font": "Newsreader",
"heading_font": "Archivo Black",
"mono_font": "Spline Sans Mono",
"heading_weight": "400",
"heading_transform": "uppercase",
"letter_spacing": "-0.02em",
"display_line_height": 0.92,
"line_height": 1.6,
"scale_ratio": 1.25,
"google_fonts_url": "https://fonts.googleapis.com/css2?family=Archivo+Black&family=Newsreader:ital,opsz,wght@0,6..72,400;0,6..72,500;0,6..72,600;1,6..72,400&family=Spline+Sans+Mono:wght@400;500;700&display=swap"
}
## Visual character to preserve
- Make the source language's structural identity visible in every component state.
## ShadSync visual profile
{
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": false,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
}
## Signature component recipes
### Button
Use `Button` for primary, secondary, outline, and ghost actions. Primary actions must expose the language's strongest contrast pair, while secondary and ghost actions should preserve the surface treatment instead of falling back to default neutral SaaS styling.
### Card
Use `Card`, `CardHeader`, `CardContent`, `CardFooter`, and `CardAction` as the main composition frame. Cards should demonstrate the language's surface, border, hierarchy, and density rules rather than appearing as generic rounded rectangles.
### Input and Textarea
Use `Input` and `Textarea` with visible focus rings, field labels, validation states, and the language's rhythm. Forms should show real product content, not placeholder-only controls.
### Select, Tabs, and Table
Use `Select`, `Tabs`, and `Table` to prove navigation, filtering, and dense data states. The table should show row rhythm, separators, hover/focus states, and an empty or status state when the language calls for it.
### Dialog and Sheet
Use `Dialog` for centered decisions and `Sheet` for contextual editing. Both should inherit the language's spacing, border, overlay, and motion rules.
## Preview shots
- `application-shell`: dashboard or workspace shell with navigation, cards, forms, and state badges.
- `detail-editor`: focused editing flow using input, textarea, select, switch/checkbox, dialog or sheet, and action buttons.
- `data-operations`: table-heavy operational view with tabs, dropdown menu affordances, badges, and destructive/empty states.
- Each preview shot must include a renderable `scene` payload with concrete headline, description, actions, and rows/fields/stats for the UI preview.
## Implementation contract
- Start from local `ui/src/components/ui` shadcn-style primitives; do not create a second component system.
- Apply `/katagami/shadcn/benday/registry-theme.json` variables, then use these recipes for composition and state design.
- Preserve Katagami token names as source metadata; shadcn semantic names are only the export surface.
- Do: Lay screens out as comic tiers held apart by the gutter; vary panel widths for pacing.; Tint with sparse Ben-Day dots recoloured per role; keep small labels legible over them.; Carry metadata in caption boxes and primary voice in balloons with a drawn tail.; Shout section heads in Archivo Black ALL-CAPS under double ink rules; keep ink black and golden pulp constant; use vermillion and cobalt like highlighters.
- Do not: Do not float cards on drop shadows or add a single coloured accent edge — depth is the gutter and the dot.; Do not revert to the refinement's cream proof-sheet with offset spot-plate shadows.; Do not round the corners of panels or controls, or trap the nav in a pill bar.; Do not use emoji or symbol glyphs in copy; use SVG primitives.
## Copy-paste component example
This generated starter proves the import shape. Production Katagami agents should replace it with a language-specific product composition.
```tsx
import { Badge } from "@/components/ui/badge";
import { Button } from "@/components/ui/button";
import {
Card,
CardContent,
CardDescription,
CardFooter,
CardHeader,
CardTitle,
} from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Tabs, TabsList, TabsTrigger } from "@/components/ui/tabs";
export function BendayShadcnKit() {
return (
<section className="grid gap-4 rounded-[var(--radius)] border bg-background p-4 text-foreground">
<div className="flex items-start justify-between gap-4">
<div>
<Badge variant="outline">shadcn/ui</Badge>
<h2 className="mt-3 text-2xl font-semibold tracking-tight">Benday</h2>
<p className="mt-1 max-w-xl text-sm text-muted-foreground">
Use the Katagami registry theme, then compose these shadcn primitives
with the language-specific component recipes.
</p>
</div>
<Button>Apply theme</Button>
</div>
<Tabs defaultValue="components">
<TabsList>
<TabsTrigger value="components">Components</TabsTrigger>
<TabsTrigger value="states">States</TabsTrigger>
<TabsTrigger value="export">Export</TabsTrigger>
</TabsList>
</Tabs>
<Card>
<CardHeader>
<CardTitle>Component recipe</CardTitle>
<CardDescription>
Replace this starter content with the agent-authored product scene
from components.md and preview-shots.json.
</CardDescription>
</CardHeader>
<CardContent className="grid gap-3 sm:grid-cols-[1fr_auto]">
<Input defaultValue="Tokenized shadcn surface" aria-label="Recipe name" />
<Button variant="secondary">Preview state</Button>
</CardContent>
<CardFooter className="justify-between">
<Badge>Ready</Badge>
<Button variant="outline">Copy recipe</Button>
</CardFooter>
</Card>
</section>
);
}
```
## Layout notes
{
"grid": "Comic tier system: each row is a grid of unequal minmax(0,1fr) panels separated by a 10px gutter; min-width:0 children so grids never blow out. Rows vary (2+1, 1+2, 3-up, 3+1+1, full-bleed splash).",
"whitespace": "The gutter is the whitespace — a constant channel between panels; generous padding inside panels; always pad above titles; titles never stuck to container tops.",
"density": "Dense within panels, generous between tiers.",
"responsive": "Renders ~390px to 2560px+. Wide tiers relax to two-up on tablet and stack to a single vertical column of panels on mobile, with the gutter as vertical breathing room. Non-essential nav links and table columns hidden on mobile; no horizontal overflow. Ultra-wide caps and centres the page; only the hero splash spans 100vw.",
"breakpoints": {
"lg": "1200px+",
"md": "860-1199px",
"sm": "560-859px",
"xs": "below 560px"
}
}
{
"artifact": "katagami:shadcn-preview-shots",
"version": "preview-shots-v1",
"generator": "katagami-ui-compatibility-projection",
"generatedBy": "katagami-ui-projection",
"requiresVisualProfile": true,
"schema": "katagami:shadcn-preview-shots/renderable-v1",
"renderable": true,
"language": {
"id": "en-019ef801-59c9-74d3-8018-5bf93c313038",
"name": "Benday",
"slug": "benday"
},
"installCommand": "npx shadcn@latest add button card input textarea select dialog sheet tabs badge separator checkbox switch slider tooltip dropdown-menu table",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"dialog",
"sheet",
"tabs",
"badge",
"separator",
"checkbox",
"switch",
"slider",
"tooltip",
"dropdown-menu",
"table"
],
"identityNotes": [],
"visualProfile": {
"family": "system",
"material": "flat",
"contour": "default",
"border": "solid",
"underlay": false,
"grain": false,
"stickerBadges": false,
"motion": "still",
"density": "balanced",
"accents": [
"primary",
"accent",
"secondary",
"muted"
]
},
"shots": [
{
"id": "application-shell",
"title": "Application shell",
"viewport": "desktop",
"primitives": [
"button",
"card",
"input",
"select",
"tabs",
"badge",
"separator",
"table"
],
"composition": "A real product workspace with navigation, summary cards, filtering controls, and one dense content region.",
"mustShow": [
"primary and secondary actions",
"card hierarchy",
"filterable state",
"table or list density"
],
"avoid": [
"component inventory walls",
"placeholder-only content",
"generic rounded SaaS chrome"
],
"scene": {
"eyebrow": "workspace spread",
"headline": "Benday launch room",
"description": "A product team workspace where navigation, filters, metrics, and dense rows carry the language's visible structure.",
"primaryAction": "Apply theme",
"secondaryAction": "Review states",
"stats": [
{
"label": "components",
"value": "16",
"tone": "accent"
},
{
"label": "states",
"value": "ready"
},
{
"label": "density",
"value": "balanced",
"tone": "warning"
}
],
"rows": [
{
"label": "Primary flow",
"value": "mapped",
"status": "active"
},
{
"label": "Token coverage",
"value": "semantic",
"status": "synced"
},
{
"label": "Responsive proof",
"value": "queued",
"status": "review"
}
],
"statuses": [
"Active",
"Synced",
"Draft"
]
}
},
{
"id": "detail-editor",
"title": "Detail editor",
"viewport": "tablet",
"primitives": [
"button",
"card",
"input",
"textarea",
"select",
"checkbox",
"switch",
"slider",
"dialog",
"sheet"
],
"composition": "A focused editing flow with form fields, validation, confirmation, and a contextual side panel.",
"mustShow": [
"focus ring",
"error or destructive state",
"dialog or sheet treatment",
"written guidance content"
],
"avoid": [
"unstyled browser controls",
"floating cards inside cards",
"missing labels"
],
"scene": {
"eyebrow": "editing flow",
"headline": "Language recipe editor",
"description": "A focused form proving labels, validation, toggles, panel rhythm, and action hierarchy.",
"primaryAction": "Save recipe",
"secondaryAction": "Open sheet",
"fields": [
{
"label": "Component family",
"value": "Narrative cards"
},
{
"label": "State treatment",
"value": "Visible focus + validation"
},
{
"label": "Motion",
"value": "Small lift, no opacity-only fade"
}
],
"statuses": [
"Focus",
"Invalid",
"Confirmed"
]
}
},
{
"id": "data-operations",
"title": "Data operations",
"viewport": "mobile",
"primitives": [
"button",
"tabs",
"badge",
"dropdown-menu",
"table",
"tooltip",
"separator"
],
"composition": "A compact operational view proving row rhythm, stacked actions, menu states, badges, and empty/destructive states.",
"mustShow": [
"responsive reflow",
"dense row styling",
"menu affordance",
"status badge system"
],
"avoid": [
"desktop-only tables",
"text overflow",
"default shadcn spacing without Katagami character"
],
"scene": {
"eyebrow": "operations",
"headline": "Compact review queue",
"description": "A narrow viewport scene with rows, menus, tooltips, badges, and destructive affordances.",
"primaryAction": "Resolve",
"secondaryAction": "Filter",
"rows": [
{
"label": "Button hierarchy",
"value": "approved",
"status": "ok"
},
{
"label": "Table rhythm",
"value": "needs pass",
"status": "watch"
},
{
"label": "Empty state",
"value": "designed",
"status": "done"
}
],
"statuses": [
"Queued",
"Blocked",
"Done"
]
}
}
],
"componentRecipes": [
{
"primitive": "button",
"intent": "Prove action hierarchy, focus, disabled, and destructive states."
},
{
"primitive": "card",
"intent": "Carry the language surface, border, elevation, and density rules."
},
{
"primitive": "input",
"intent": "Show labels, focus rings, validation, and spacing rhythm."
},
{
"primitive": "textarea",
"intent": "Show longer guidance, validation copy, and writing density."
},
{
"primitive": "select",
"intent": "Show filtering, selection contrast, and menu trigger styling."
},
{
"primitive": "dialog",
"intent": "Show centered decision states and overlay treatment."
},
{
"primitive": "sheet",
"intent": "Show contextual side panels and responsive editing."
},
{
"primitive": "tabs",
"intent": "Show navigational structure and active/inactive contrast."
},
{
"primitive": "badge",
"intent": "Show compact status vocabulary and semantic colors."
},
{
"primitive": "separator",
"intent": "Show section rhythm without generic gray dividers."
},
{
"primitive": "checkbox",
"intent": "Show binary selection with visible focus and checked states."
},
{
"primitive": "switch",
"intent": "Show settings toggles and on/off contrast."
},
{
"primitive": "slider",
"intent": "Show numeric adjustment with track/thumb styling."
},
{
"primitive": "tooltip",
"intent": "Show concise explanation styling above compact controls."
},
{
"primitive": "dropdown-menu",
"intent": "Show action menus, destructive items, and grouped choices."
},
{
"primitive": "table",
"intent": "Show dense operational data, separators, row states, and responsive behavior."
}
],
"qualityRules": {
"do": [
"Lay screens out as comic tiers held apart by the gutter; vary panel widths for pacing.",
"Tint with sparse Ben-Day dots recoloured per role; keep small labels legible over them.",
"Carry metadata in caption boxes and primary voice in balloons with a drawn tail.",
"Shout section heads in Archivo Black ALL-CAPS under double ink rules; keep ink black and golden pulp constant; use vermillion and cobalt like highlighters."
],
"dont": [
"Do not float cards on drop shadows or add a single coloured accent edge — depth is the gutter and the dot.",
"Do not revert to the refinement's cream proof-sheet with offset spot-plate shadows.",
"Do not round the corners of panels or controls, or trap the nav in a pill bar.",
"Do not use emoji or symbol glyphs in copy; use SVG primitives."
]
}
}
